UGC DOR7002462
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.44 CAD - $54.44 CAD
$54.44 CAD
$54.44 CAD - $54.44 CAD
$54.44 CAD

Vendu en lots de : 1

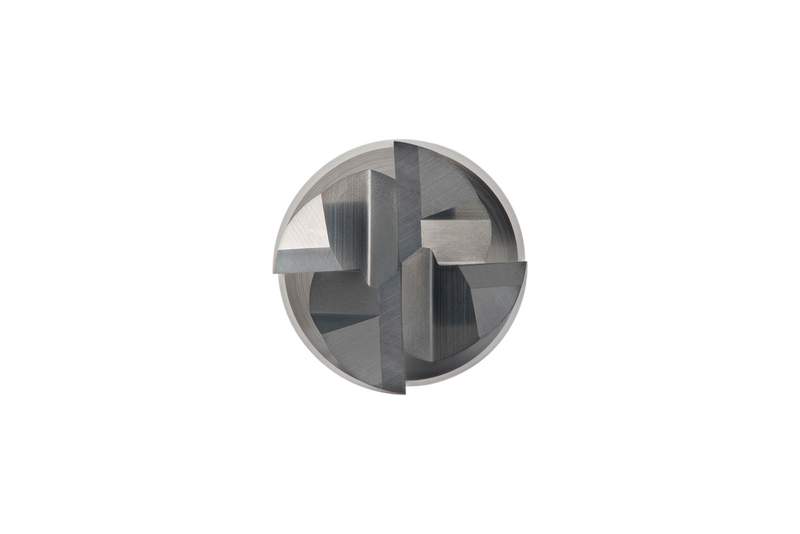

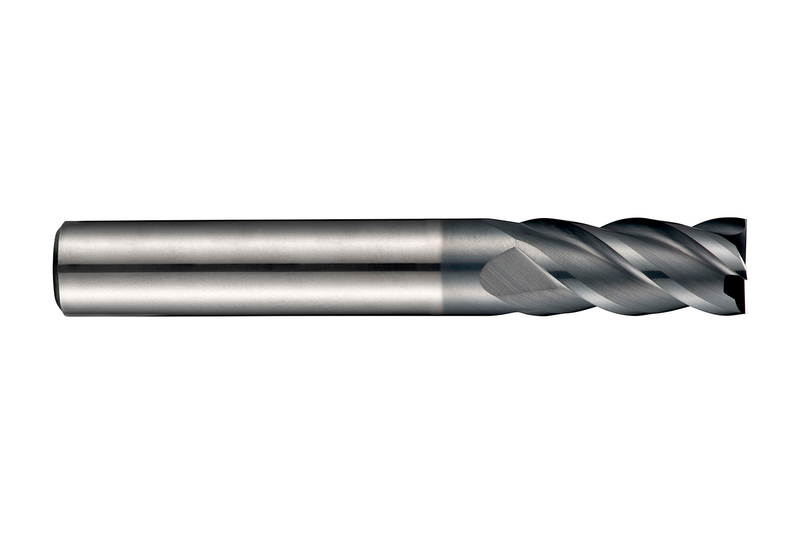

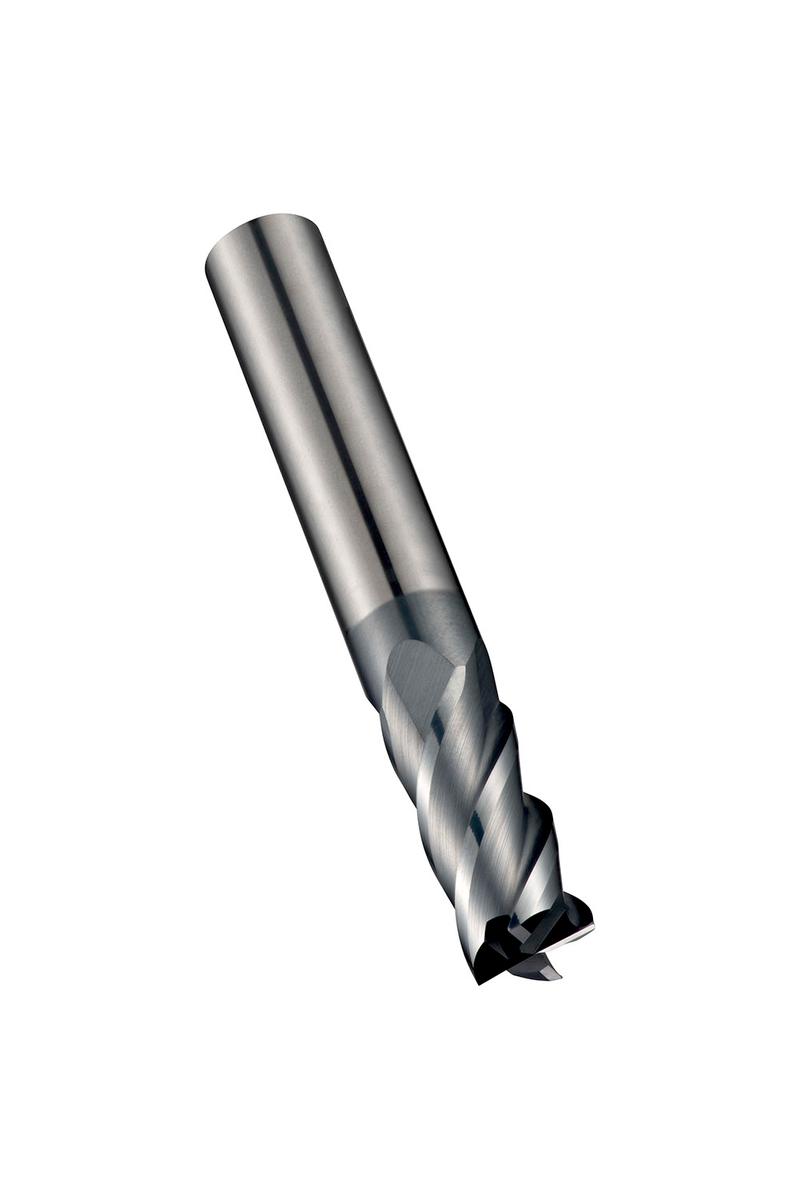

Fraise en carbure monobloc à queue cylindrique, série courte, 4 arêtes, diamètre 2 mm, longueur de coupe 6,5 mm, longueur totale 40 mm, selon la norme DORMER, revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7162.0
GradeAlCrN
Product Number7002462
Product FamilyS716

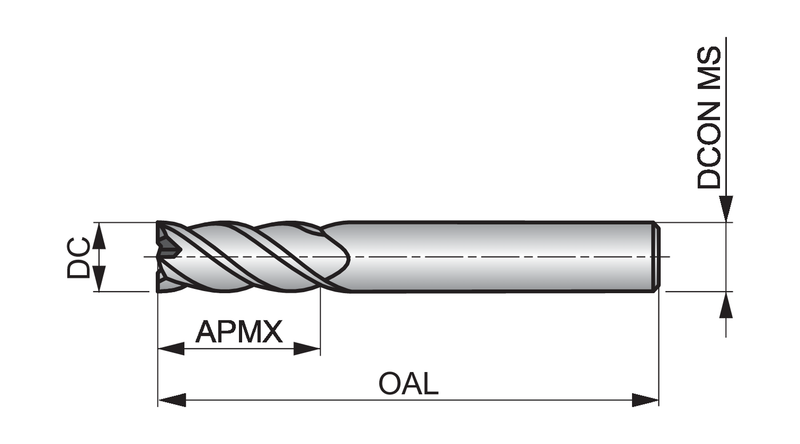

Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number47002462
EAN7320760690031
File Type Download
S7162.0 — Line Drawing PDF Download
