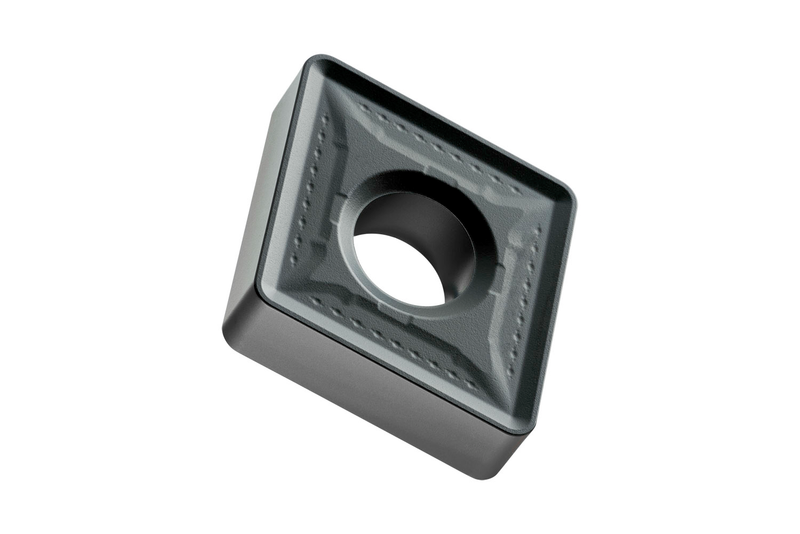

CNMM 866-HR2:T9315
CNMM 866-HR2:T9315

CNMM 866-HR2:T9315

UGC DOR7015714
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux HR2, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 - P25, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-HR2:T9315
Product Name (ISO)CNMM 250924-RH2:T9315
GradeT9315
Chipbreaker (CBMD)RH2
Product Number7015714
Product FamilyCMNM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Insert Thickness — in (S)0.375"
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Tool Information
Reference Numbers
EDP Number7015714
EAN3603603099029
