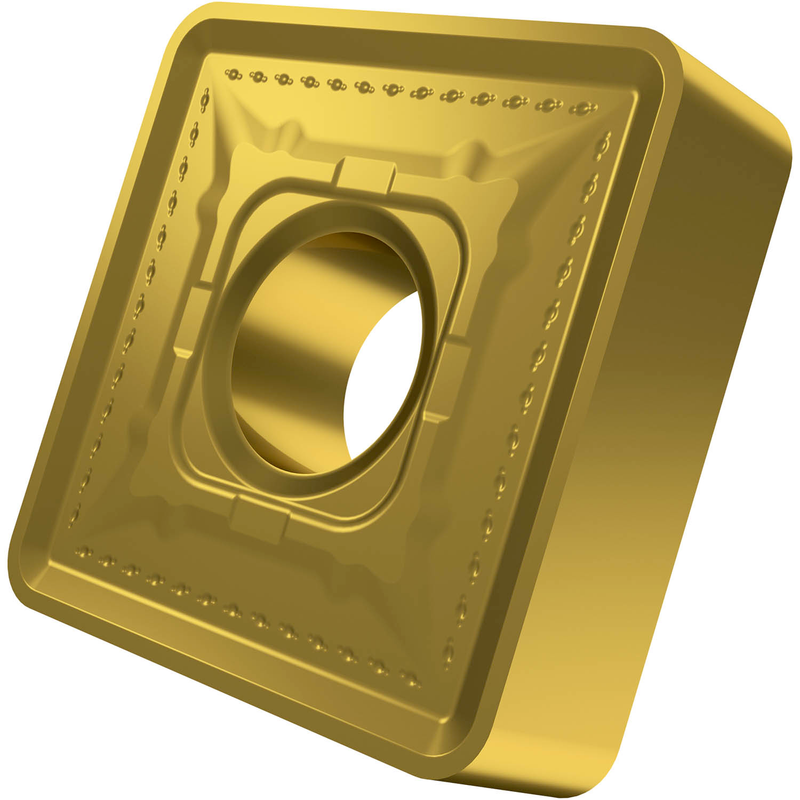

SNMM 856-HR2:T9226
SNMM 856-HR2:T9226

SNMM 856-HR2:T9226

UGC DOR7015719
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", une épaisseur de 5/16", un rayon de bec de 3/32" et une précision d'indexation selon la classe de tolérance ISO M, brise-copeaux HR2, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage lourd à extra lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 856-HR2:T9226
Product Name (ISO)SNMM 250724-HR2:T9226
GradeT9226
Chipbreaker (CBMD)RH2
Product Number7015719
Product FamilyMSNM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number7015719
EAN3603603099074
File Type Download
SNMM 856-HR2:T9226 — Line Drawing PDF Download
