UGC DOR7022404
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.69 CAD - $8.69 CAD
$8.69 CAD
$8.69 CAD - $8.69 CAD
$8.69 CAD

Vendu en lots de : 10

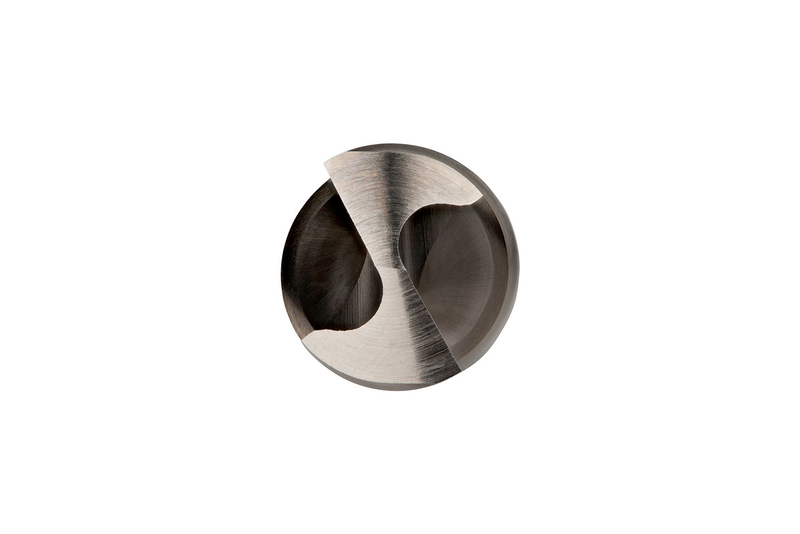

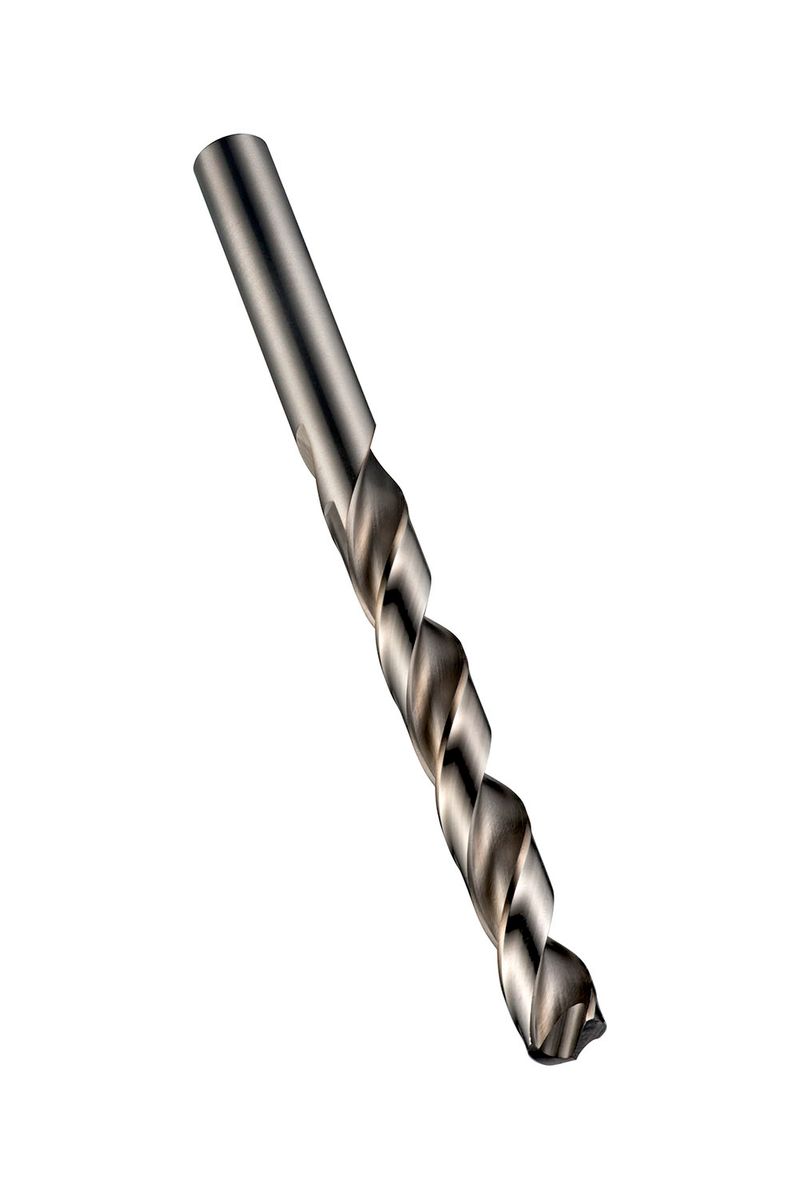

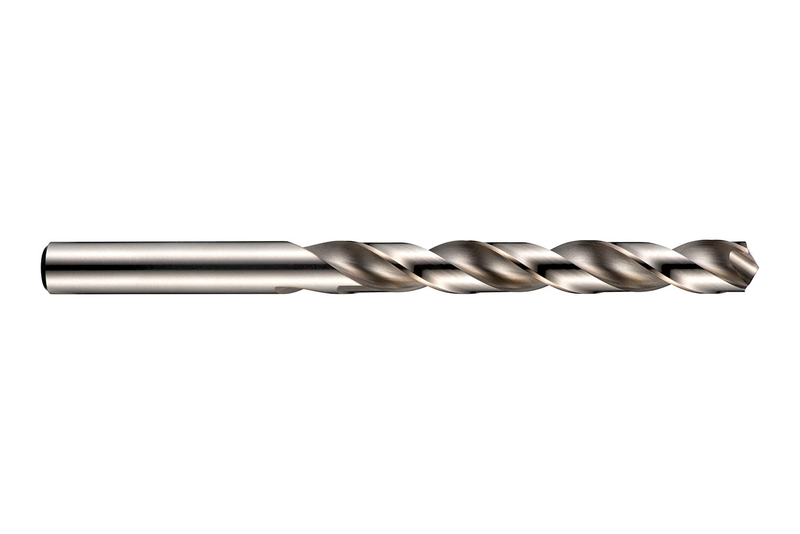

Foret série courte à queue cylindrique, diamètre 1,7 mm, longueur totale 43 mm et longueur de coupe 20 mm selon la norme DIN 338, avec une pointe conique amincie de 130° et des listels rectifiés, en HSS-E cobalt, finition brillante pour un perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1471.7
GradeLumineux
Product Number7022404
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.0669"
Cutting Diameter — mm (DC)1.7 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0669"
Connection Dia. — mm (DCON)1.7 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022404
EAN7320760690758
File Type Download
A1471.7 — 3D Model STP Download
A1471.7 — Line Drawing PDF Download
