UGC DOR7022428
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.43 CAD - $10.43 CAD
$10.43 CAD
$10.43 CAD - $10.43 CAD
$10.43 CAD

Vendu en lots de : 10

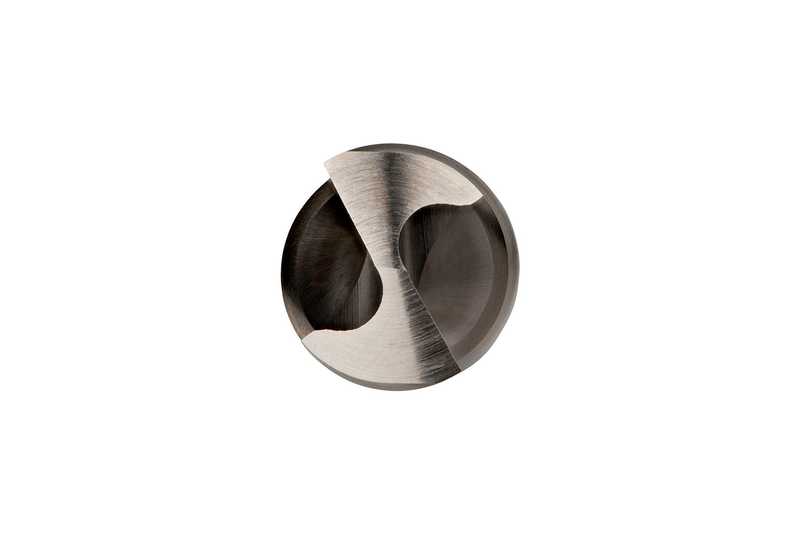

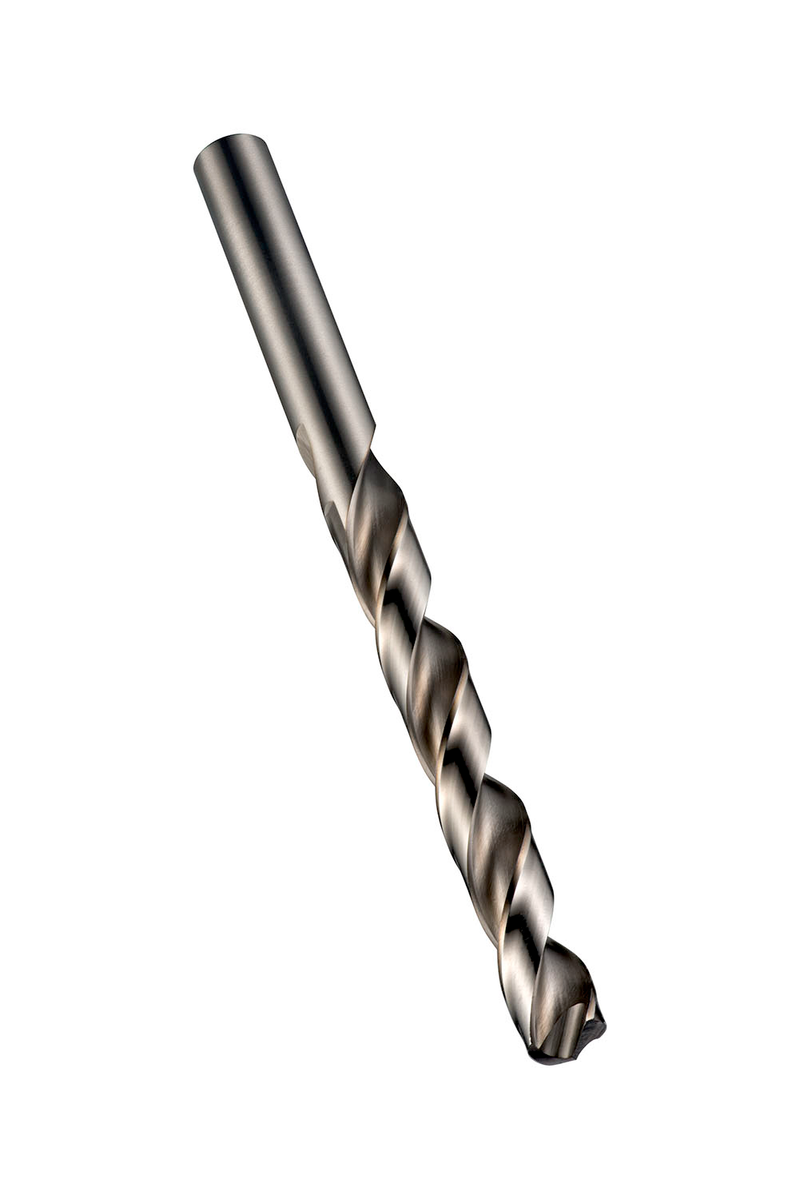

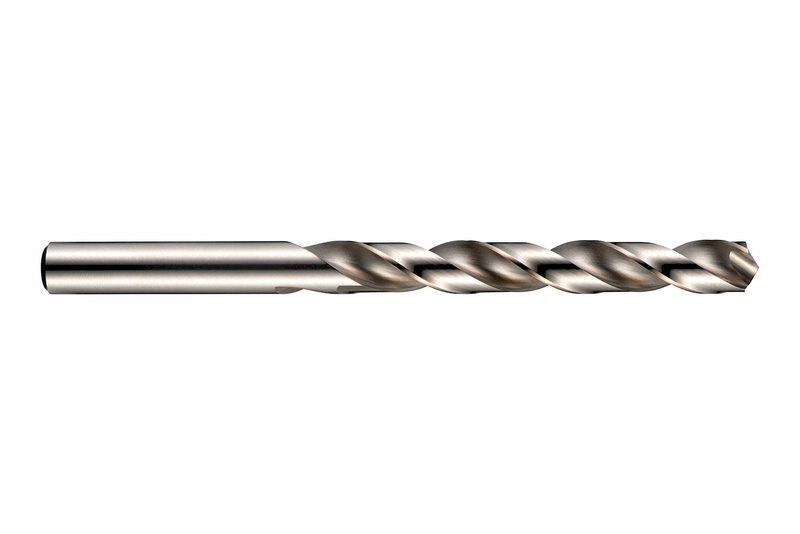

Foret hélicoïdal série courte à queue cylindrique, diamètre 4,1 mm, longueur totale 75 mm, longueur de coupe 43 mm, conforme à la norme DIN 338, avec pointe conique amincie à 130° et listels corrigés, en HSS-E cobalt, finition brillante, pour perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1474.1
GradeLumineux
Product Number7022428
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.1614"
Cutting Diameter — mm (DC)4.1 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1614"
Connection Dia. — mm (DCON)4.1 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022428
EAN7320760690994
File Type Download
A1474.1 — 3D Model STP Download
A1474.1 — Line Drawing PDF Download
