UGC DOR7022430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.93 CAD - $10.93 CAD
$10.93 CAD
$10.93 CAD - $10.93 CAD
$10.93 CAD

Vendu en lots de : 10

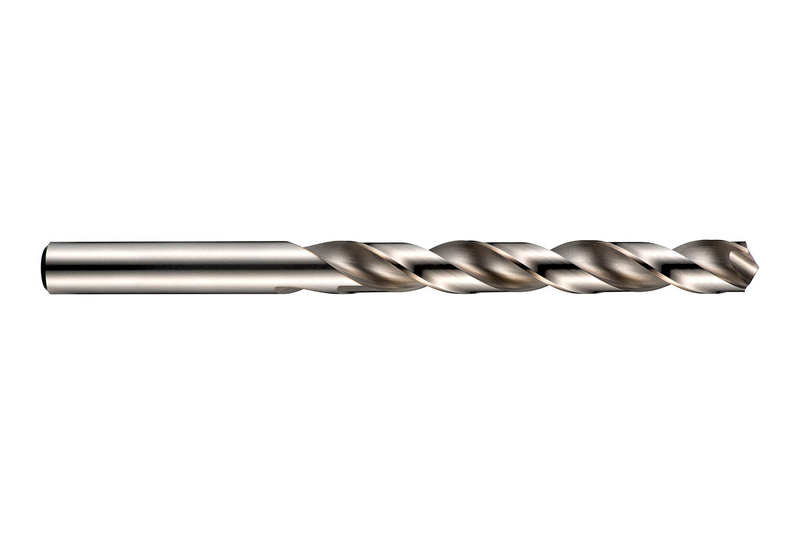

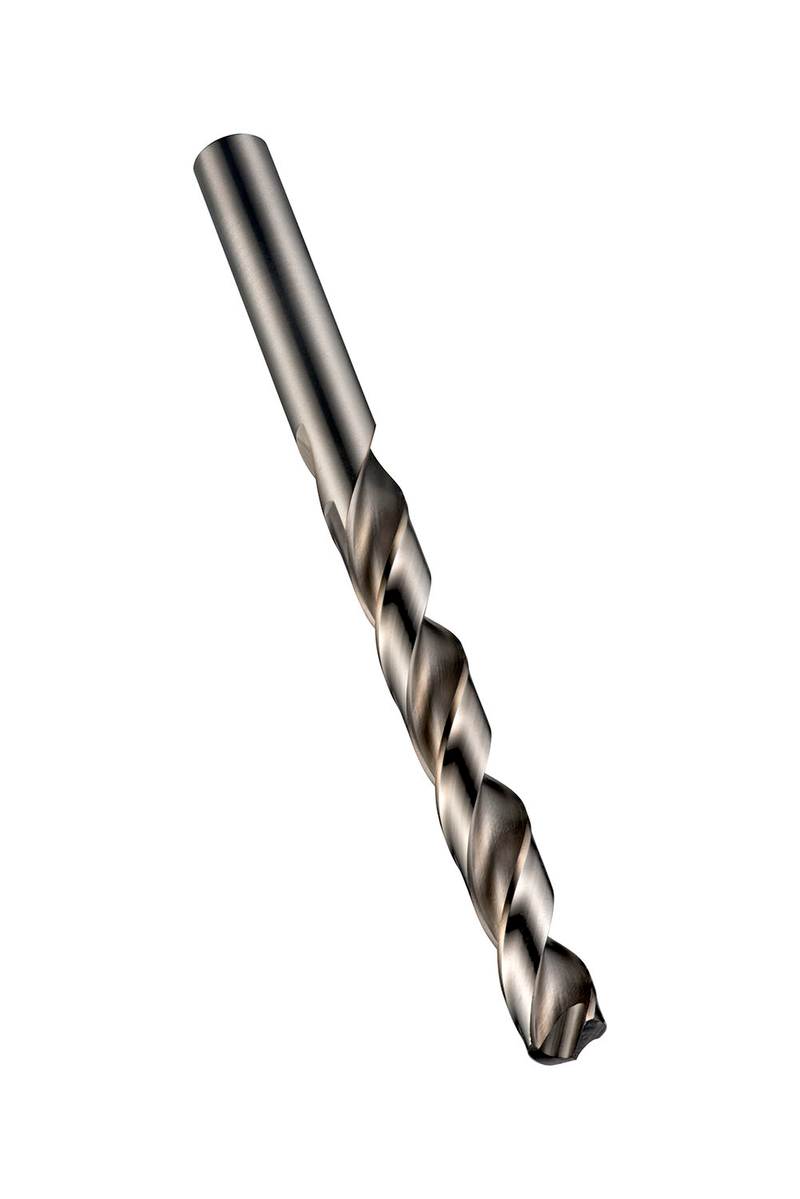

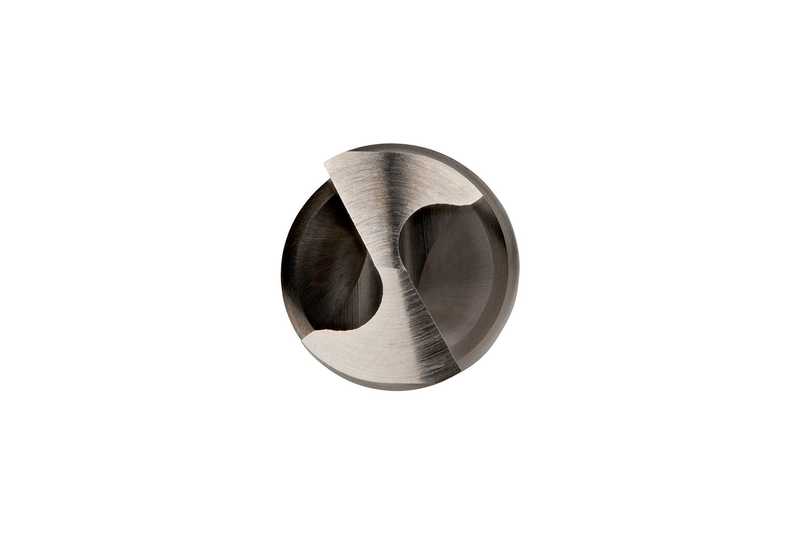

Foret hél. courte avec queue cylindrique, diamètre 4,3 mm, longueur totale 80 mm et longueur hél. 47 mm selon la norme DIN 338, pointe conique affûtée à 130° avec listels corrigés, en HSS-E au cobalt avec finition brillante pour perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1474.3
GradeLumineux
Product Number7022430
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.1693"
Cutting Diameter — mm (DC)4.3 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1693"
Connection Dia. — mm (DCON)4.3 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022430
EAN7320760691014
File Type Download
A1474.3 — 3D Model STP Download
A1474.3 — Line Drawing PDF Download
