UGC DOR7022460
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.20 CAD - $25.20 CAD
$25.20 CAD
$25.20 CAD - $25.20 CAD
$25.20 CAD

Vendu en lots de : 5

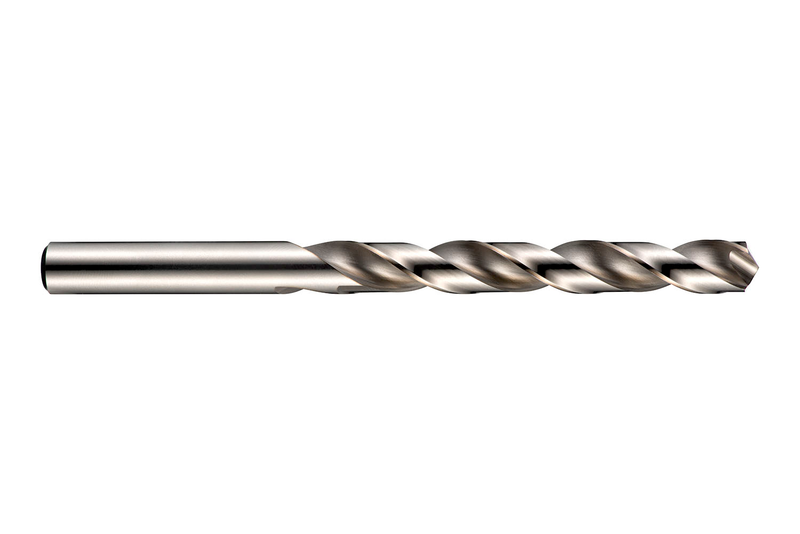

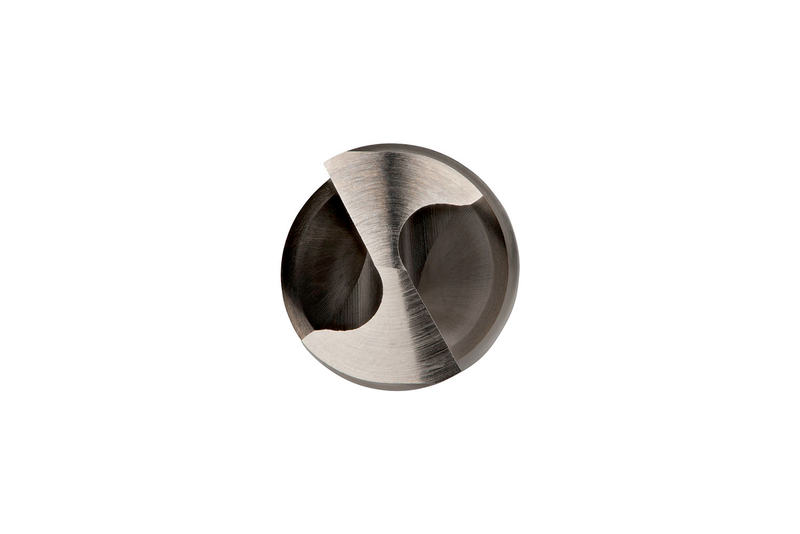

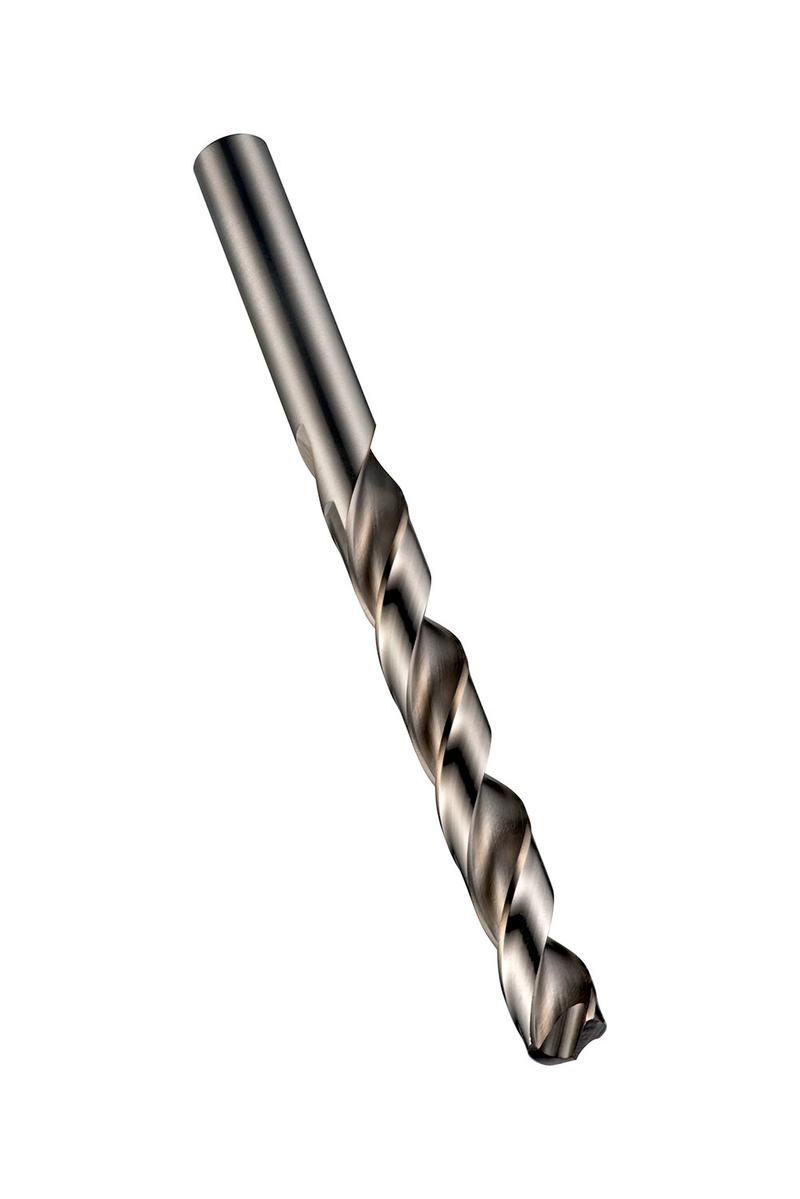

Foret court avec queue cylindrique, diamètre 7,3 mm, longueur totale 109 mm et longueur de coupe 69 mm selon la norme DIN 338, avec pointe conique amincie de 130° et lèvres de coupe corrigées, en HSS-E au cobalt avec finition brillante pour perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1477.3
GradeLumineux
Product Number7022460
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.2874"
Cutting Diameter — mm (DC)7.3 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2874"
Connection Dia. — mm (DCON)7.3 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022460
EAN7320760691311
File Type Download
A1477.3 — 3D Model STP Download
A1477.3 — Line Drawing PDF Download
