UGC DOR7022462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.57 CAD - $21.57 CAD
$21.57 CAD
$21.57 CAD - $21.57 CAD
$21.57 CAD

Vendu en lots de : 5

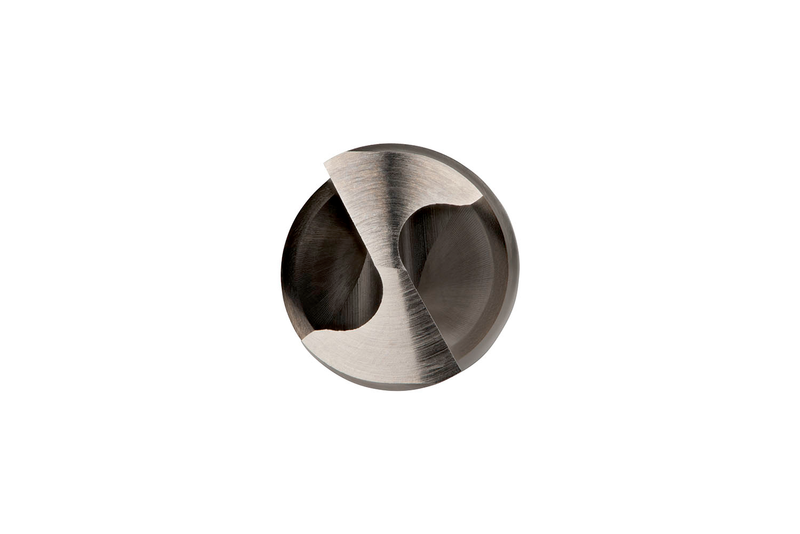

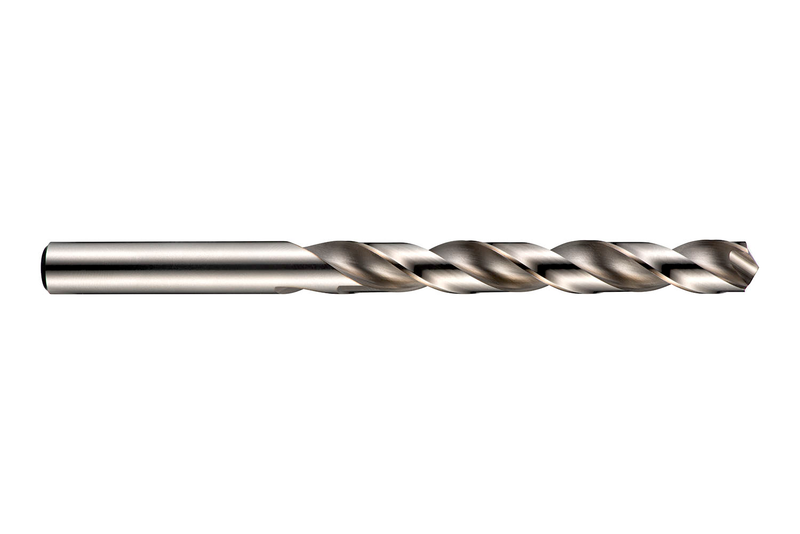

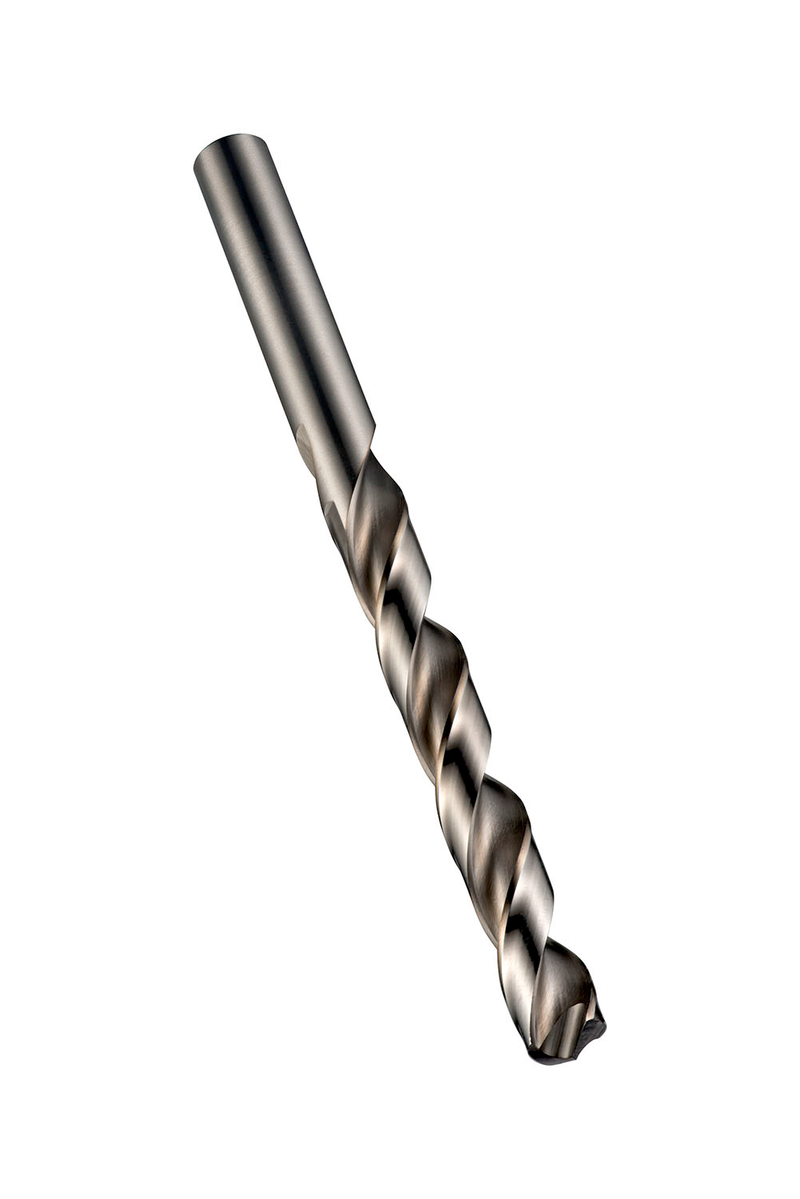

Foret hélicoïdal série courte à queue cylindrique, diamètre 7,5mm, longueur totale 109mm et longueur de coupe 69mm selon la norme DIN 338, à pointe conique amincie de 130° avec listels rectifiés, en HSS-E cobalt, finition brillante, pour perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1477.5
GradeLumineux
Product Number7022462
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.2953"
Cutting Diameter — mm (DC)7.5 mm
Overall Length — in (OAL)4.2913"
Overall Length — mm (OAL)109.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2953"
Connection Dia. — mm (DCON)7.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022462
EAN7320760691335
File Type Download
A1477.5 — 3D Model STP Download
A1477.5 — Line Drawing PDF Download
