UGC DOR7022471
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.97 CAD - $33.97 CAD
$33.97 CAD
$33.97 CAD - $33.97 CAD
$33.97 CAD

Vendu en lots de : 5

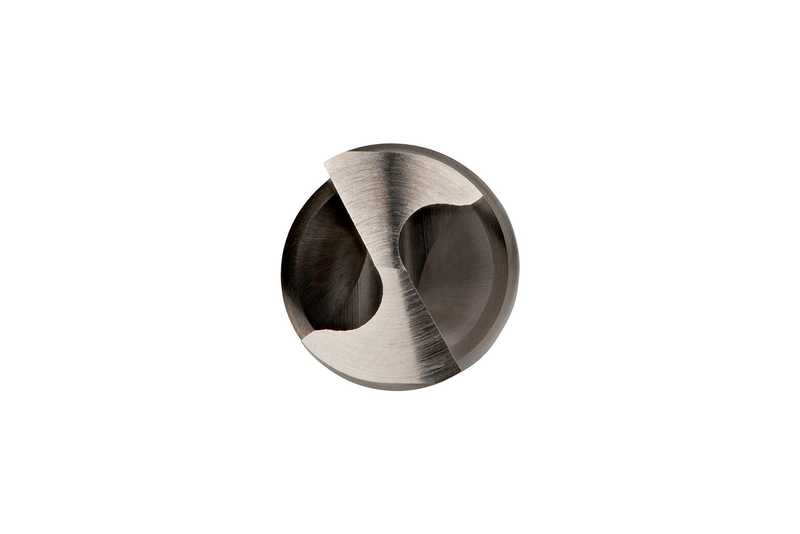

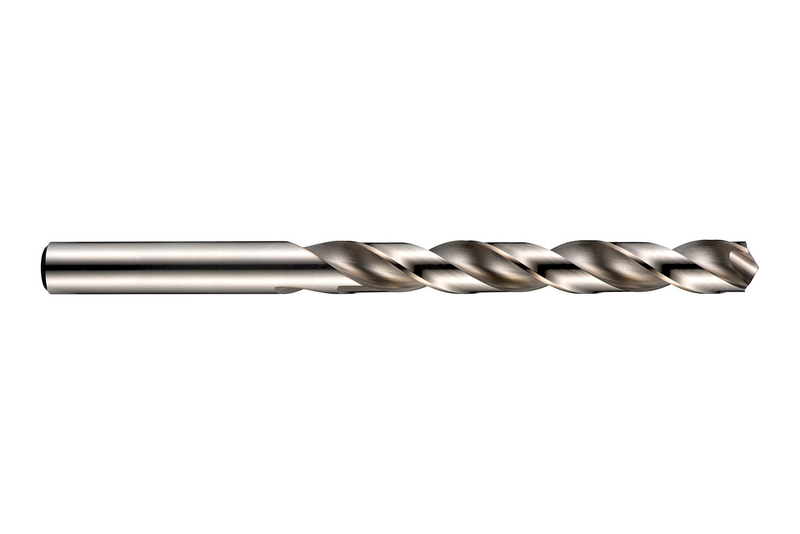

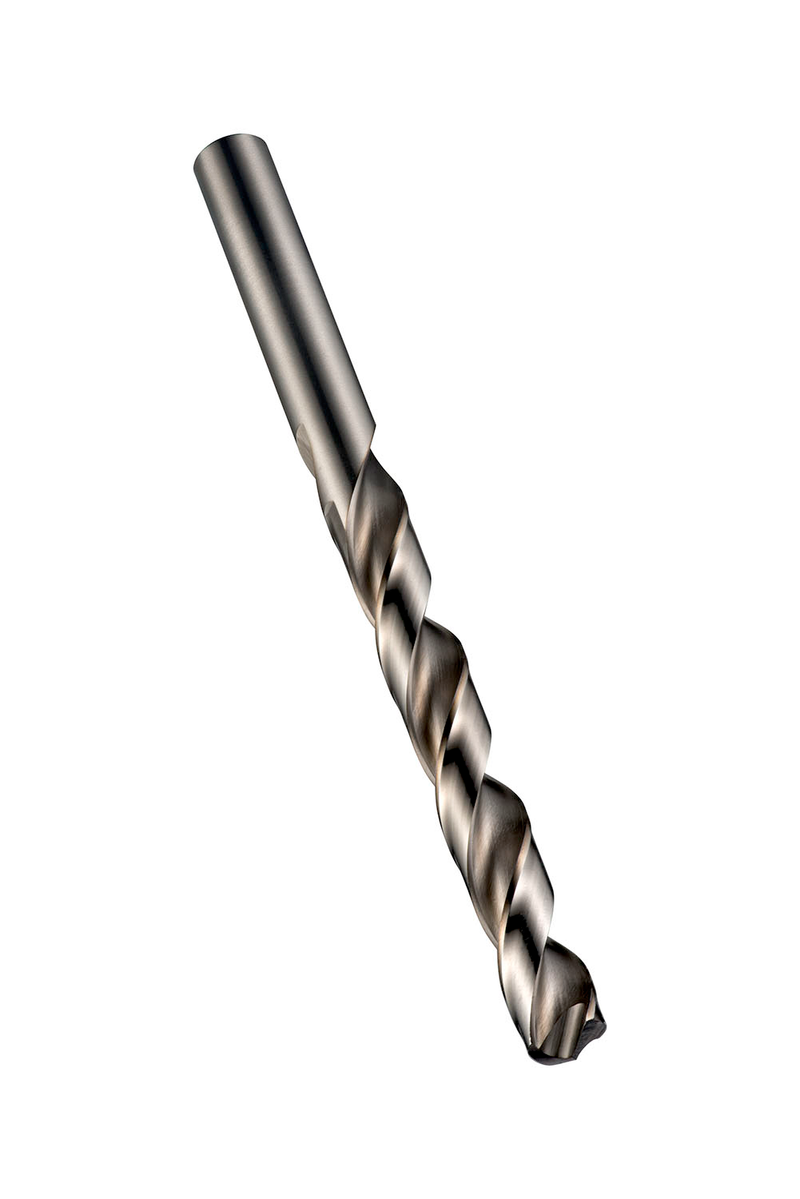

Foret série courte à queue cylindrique, diamètre 8,4 mm avec une longueur totale de 117 mm et une longueur de coupe de 75 mm selon la norme DIN 338 avec une pointe conique amincie à 130° et des listels corrigés, HSS-E cobalt avec finition brillante pour un perçage 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1478.4
GradeLumineux
Product Number7022471
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.3307"
Cutting Diameter — mm (DC)8.4 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3307"
Connection Dia. — mm (DCON)8.4 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022471
EAN7320760691427
File Type Download
A1478.4 — 3D Model STP Download
A1478.4 — Line Drawing PDF Download
