A1479.2
A1479.2
A1479.2
A1479.2

A1479.2

UGC DOR7022479
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.03 CAD - $39.03 CAD
$39.03 CAD
$39.03 CAD - $39.03 CAD
$39.03 CAD

Vendu en lots de : 5

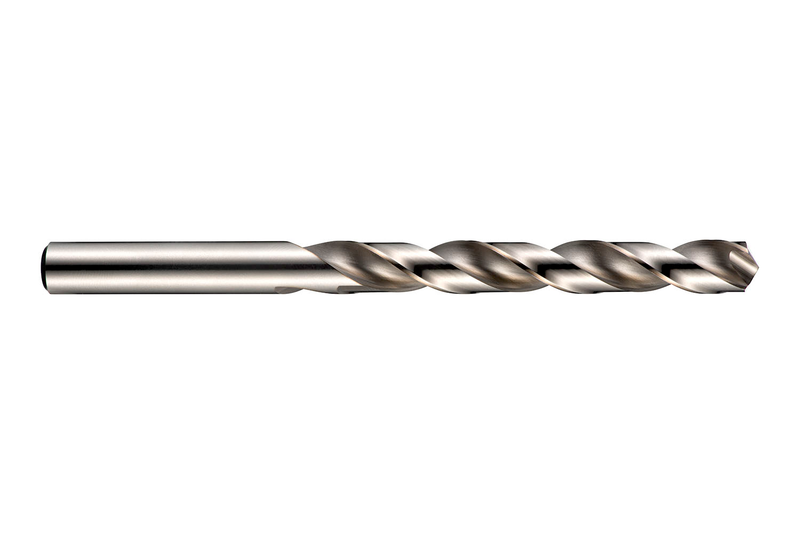

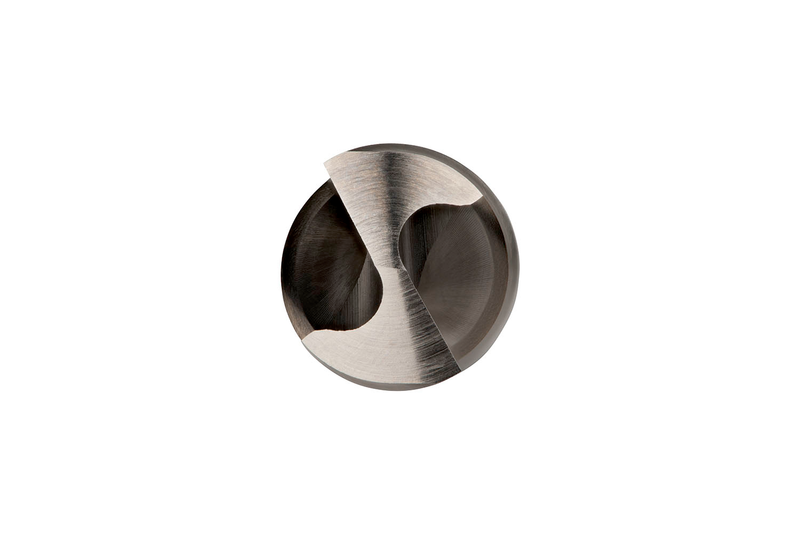

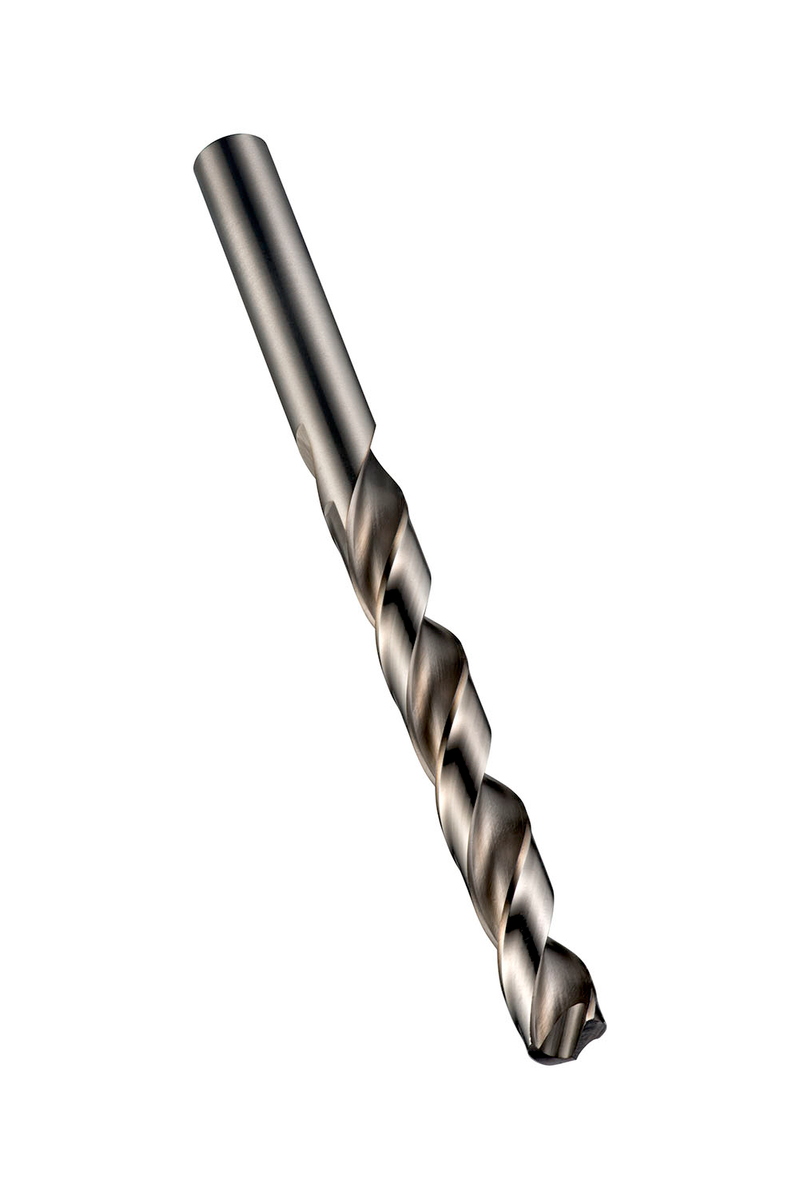

Foret queue cylindrique courte de diamètre 9,2 mm avec une longueur totale de 125 mm et une longueur de coupe de 81 mm conforme à la norme DIN 338, à pointe conique à 130° avec listels rectifiés, en HSS-E cobalté finition brillante, pour le perçage en 4xD sans débourrage dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1479.2
GradeLumineux
Product Number7022479
Product FamilyA147
Dimensions
Cutting Diameter — in (DC)0.3622"
Cutting Diameter — mm (DC)9.2 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3622"
Connection Dia. — mm (DCON)9.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number47022479
EAN7320760691502
File Type Download
A1479.2 — 3D Model STP Download
A1479.2 — Line Drawing PDF Download
