PPH-08/02-QC08-130HSCW
PPH-08/02-QC08-130HSCW
PPH-08/02-QC08-130HSCW

PPH-08/02-QC08-130HSCW

UGC DOR7024708
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$854.00 CAD - $854.00 CAD
$854.00 CAD
$854.00 CAD - $854.00 CAD
$854.00 CAD

Vendu en lots de : 1

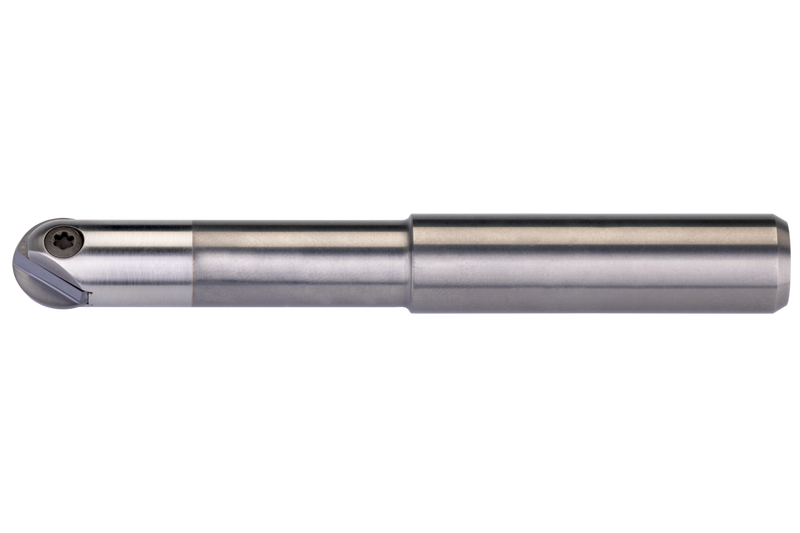

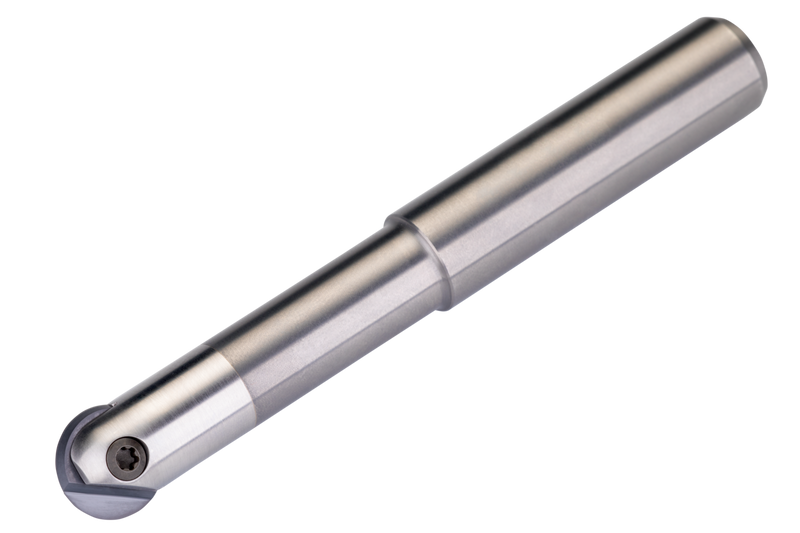

Fraise à copier utilisant 1 plaquette simple face PPH 08.., PPHT 08.. ou PPHF 08.., diamètre de coupe 8mm avec une queue cylindrique en carbure de 8mm selon DIN 1835A, longueur totale 130mm pour le fraisage en plongée avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-08/02-QC08-130HSCW
Product Number7024708
Product FamilyK2-PPH

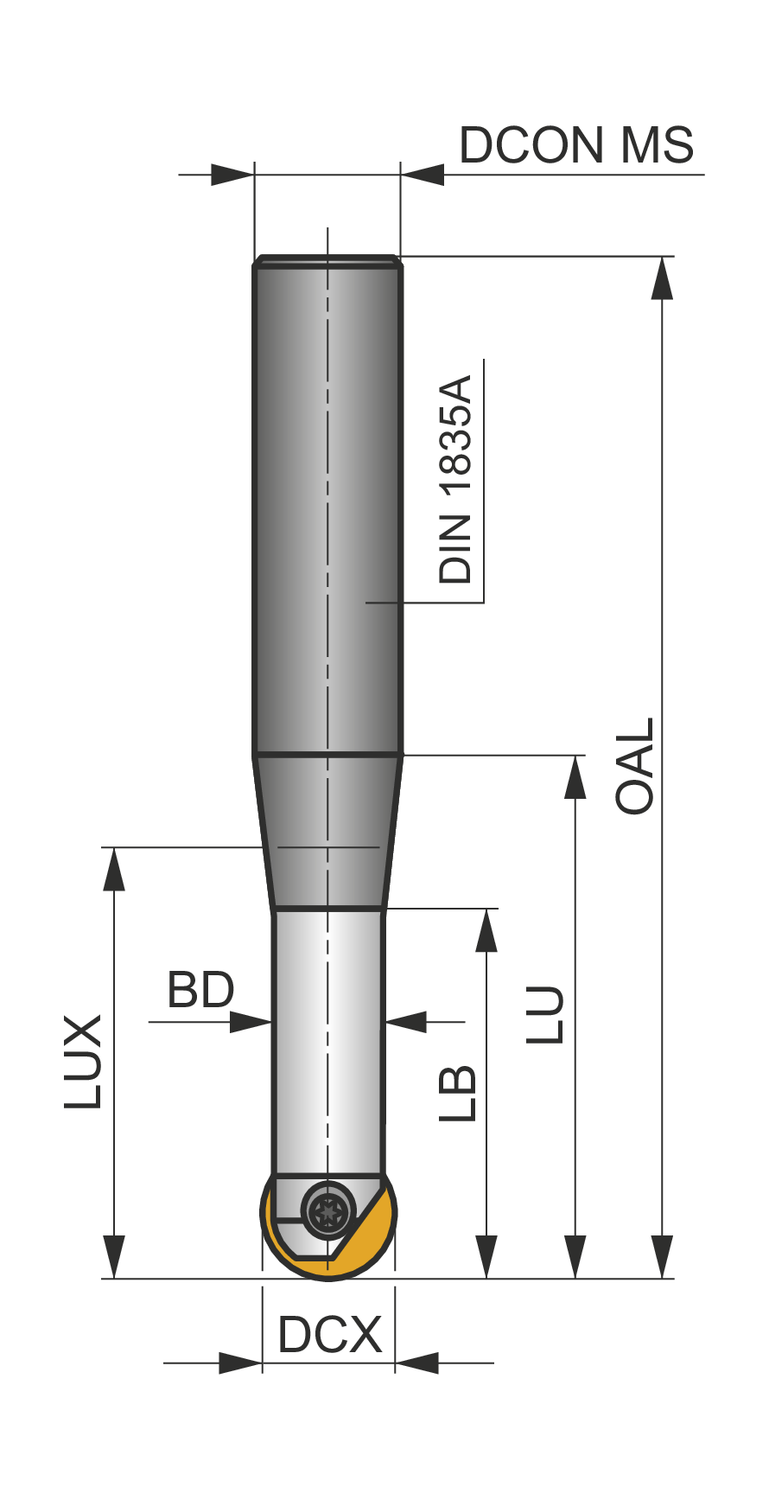

Dimensions
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024708
EAN3603603104013
File Type Download
PPH-08/02-QC08-130HSCW — 3D Model STP Download
PPH-08/02-QC08-130HSCW — 2D Model DXF Download
PPH-08/02-QC08-130HSCW — Line Drawing PDF Download
