PPH-08/02-QC12-092
PPH-08/02-QC12-092
PPH-08/02-QC12-092

PPH-08/02-QC12-092

UGC DOR7024709
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$487.00 CAD - $487.00 CAD
$487.00 CAD
$487.00 CAD - $487.00 CAD
$487.00 CAD

Vendu en lots de : 1

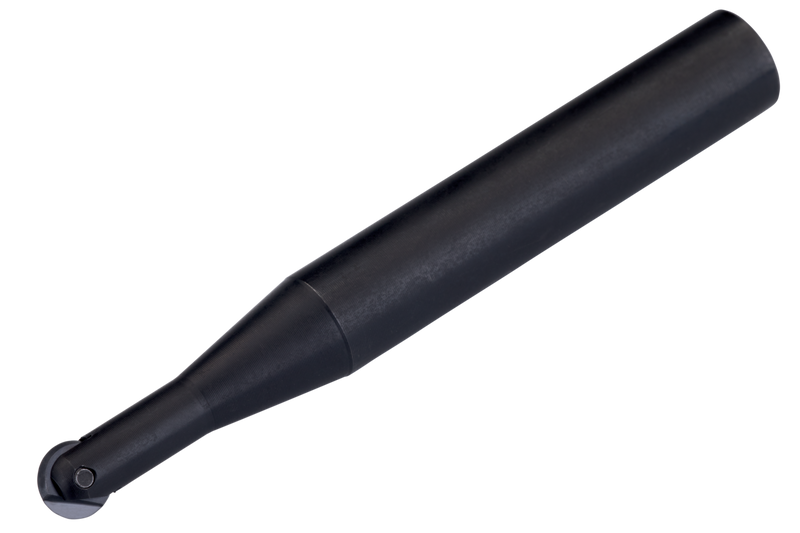

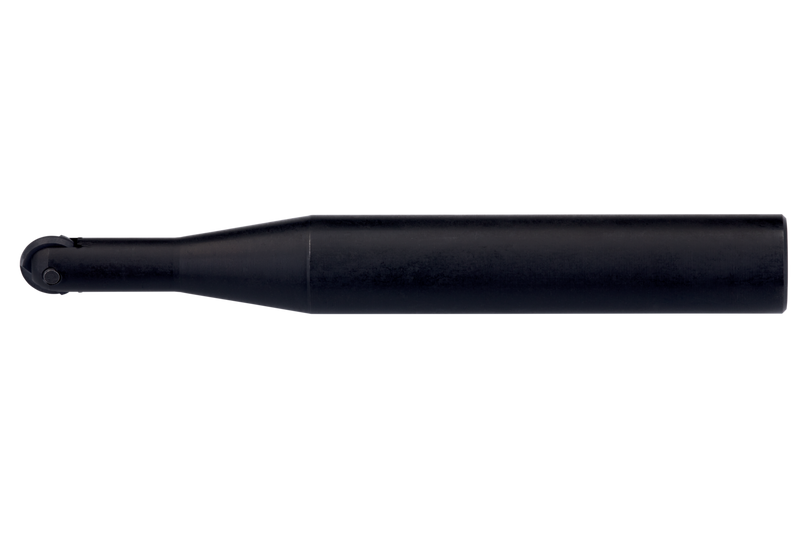

Fraise à copier qui utilise un insert simple face PPH 08.., PPHT 08.. ou PPHF 08.., diamètre de coupe de 8 mm avec une queue cylindrique de 12 mm selon la norme DIN 1835A, une longueur fonctionnelle de 19 mm et une longueur totale de 92 mm pour le fraisage à copier avec une profondeur de coupe maximale de 0,3-4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-08/02-QC12-092
Product Number7024709
Product FamilyK2-PPH

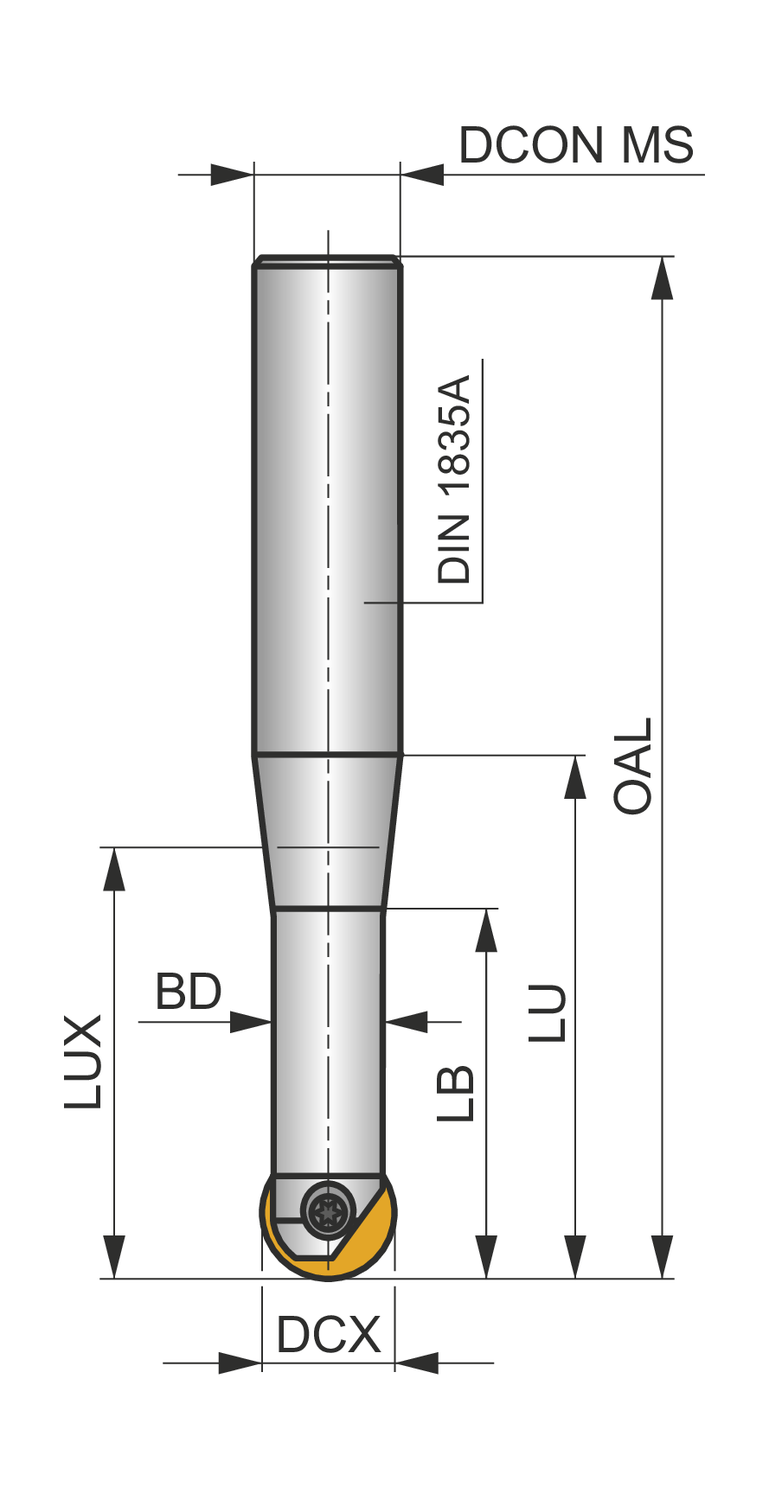

Dimensions
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024709
EAN3603603104020
File Type Download
PPH-08/02-QC12-092 — 3D Model STP Download
PPH-08/02-QC12-092 — 2D Model DXF Download
PPH-08/02-QC12-092 — Line Drawing PDF Download
