PPH-08/02-QC12-132HSCW
PPH-08/02-QC12-132HSCW
PPH-08/02-QC12-132HSCW

PPH-08/02-QC12-132HSCW

UGC DOR7024733
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 CAD - $895.00 CAD
$895.00 CAD
$895.00 CAD - $895.00 CAD
$895.00 CAD

Vendu en lots de : 1

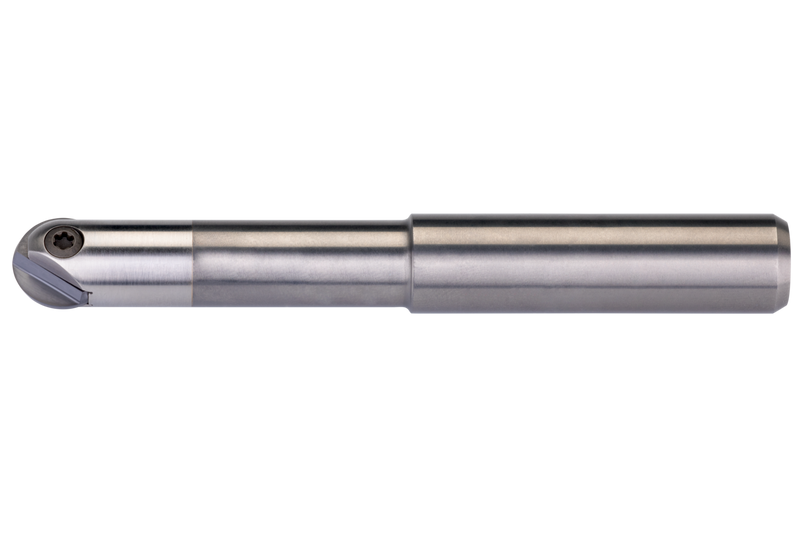

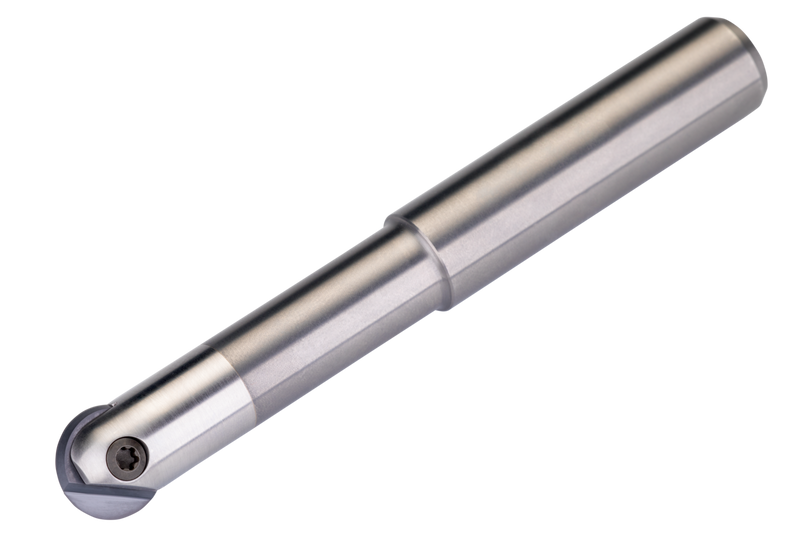

Fraise à copier qui utilise 1 insert simple face PPH 08.., PPHT 08.. ou PPHF 08.., diamètre de coupe 8 mm avec queue cylindrique en carbure de 12 mm selon DIN 1835A, longueur fonctionnelle 19 mm et longueur totale 132 mm pour le fraisage par copiage avec une profondeur de coupe maximale de 0,3-4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-08/02-QC12-132HSCW
Product Number7024733
Product FamilyK2-PPH

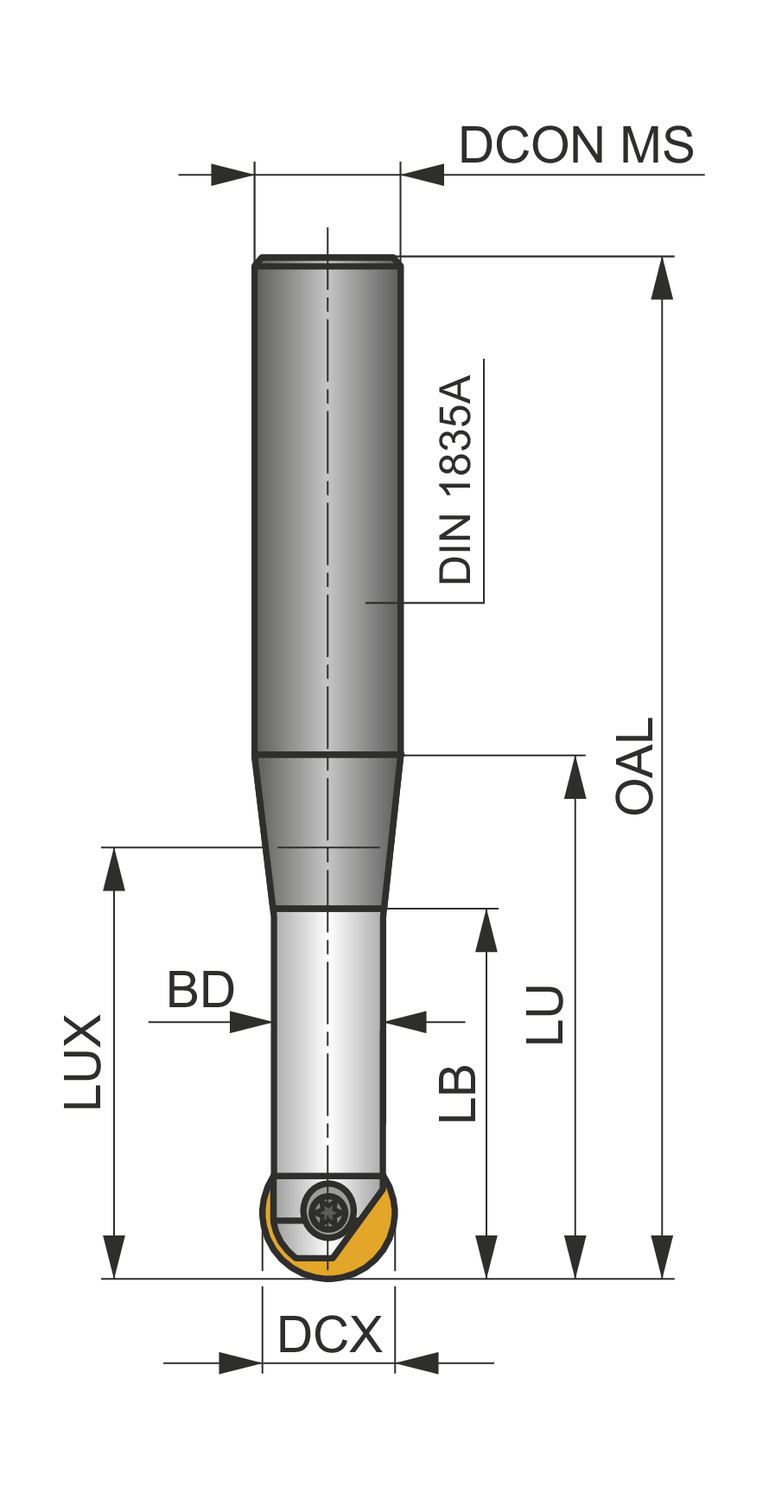

Dimensions
Overall Length — in (OAL)5.197"
Overall Length — mm (OAL)132.0 mm
Usable Length — mm (LU)75.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024733
EAN3603603104068
File Type Download
PPH-08/02-QC12-132HSCW — Line Drawing PDF Download
