PPH-10/02-QC12-092
PPH-10/02-QC12-092
PPH-10/02-QC12-092

PPH-10/02-QC12-092

UGC DOR7024735
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$487.00 CAD - $487.00 CAD
$487.00 CAD
$487.00 CAD - $487.00 CAD
$487.00 CAD

Vendu en lots de : 1

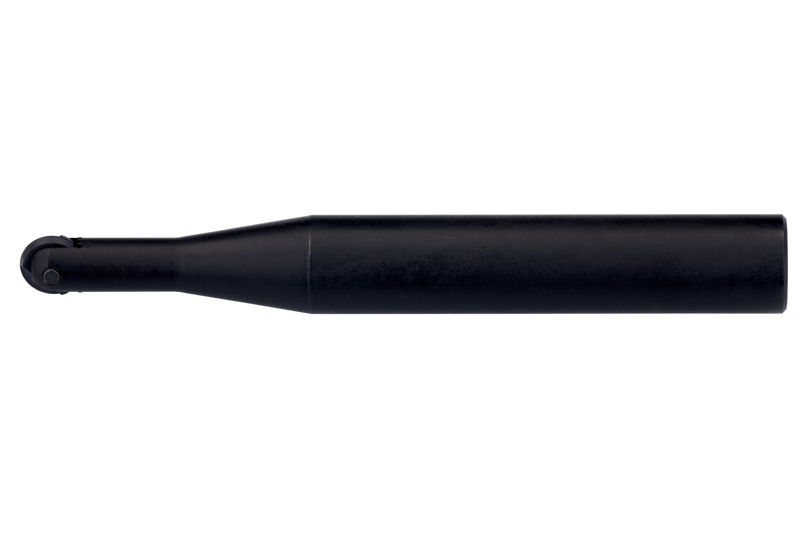

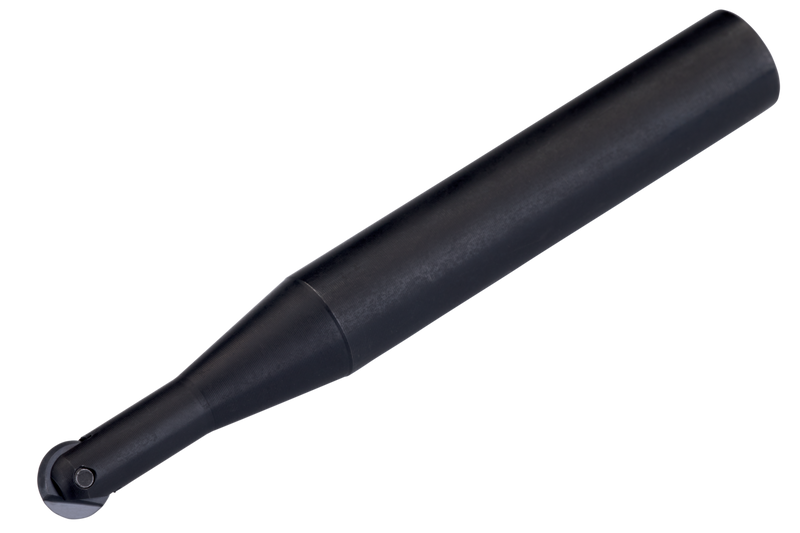

Fraise à copier qui utilise 1 plaquette simple face PPH 10.., PPHE 10.., PPHT 10.. ou PPHF 10.., diamètre de coupe 10mm avec queue cylindrique de 12mm selon DIN 1835A, longueur fonctionnelle de 22.4mm et longueur totale de 92mm pour le fraisage à copier avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-10/02-QC12-092
Product Number7024735
Product FamilyK2-PPH

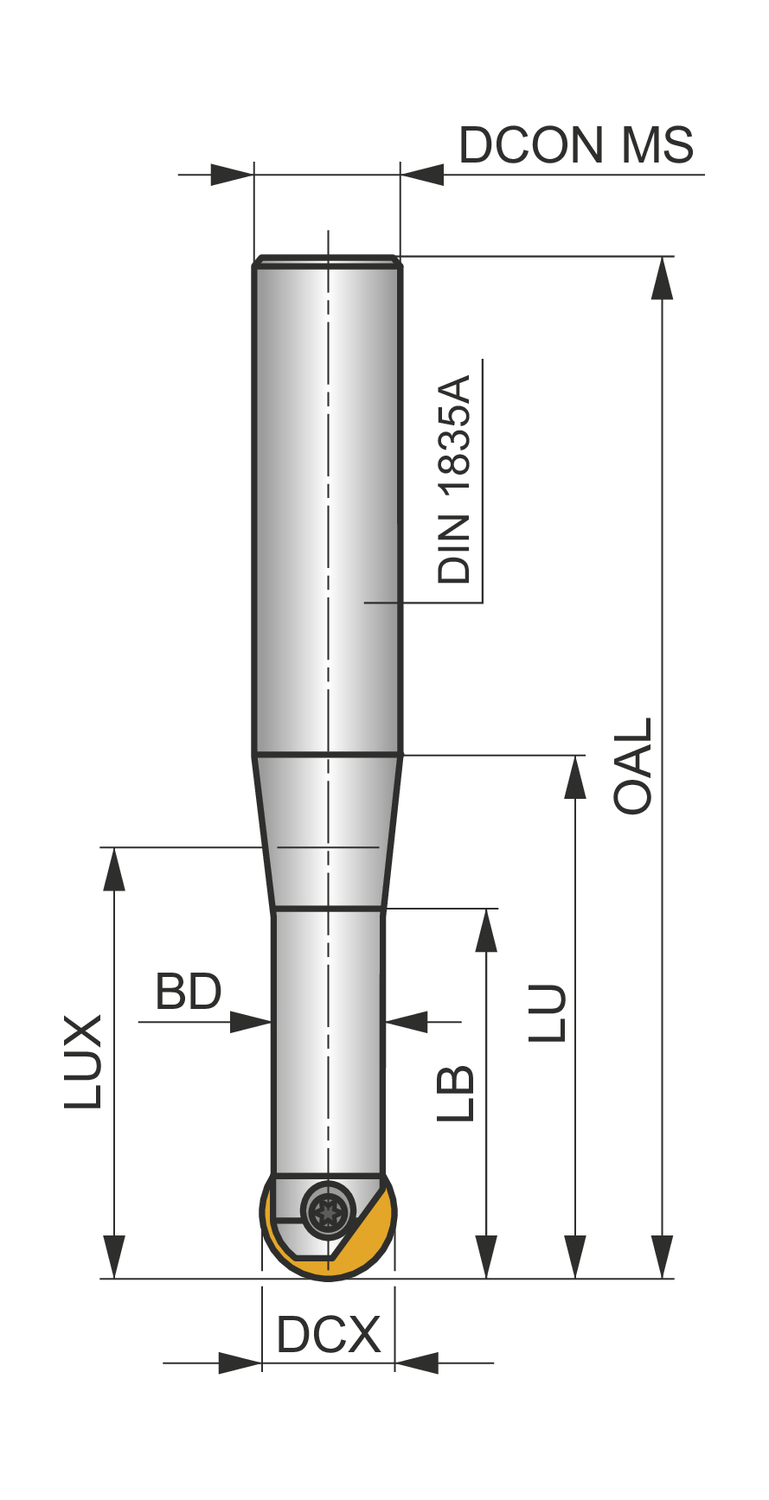

Dimensions
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)38.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024735
EAN3603603104082
File Type Download
PPH-10/02-QC12-092 — 3D Model STP Download
PPH-10/02-QC12-092 — 2D Model DXF Download
PPH-10/02-QC12-092 — Line Drawing PDF Download
