PPH-10/02-QC12-092HSCW
PPH-10/02-QC12-092HSCW
PPH-10/02-QC12-092HSCW

PPH-10/02-QC12-092HSCW

UGC DOR7024736
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$771.00 CAD - $771.00 CAD
$771.00 CAD
$771.00 CAD - $771.00 CAD
$771.00 CAD

Vendu en lots de : 1

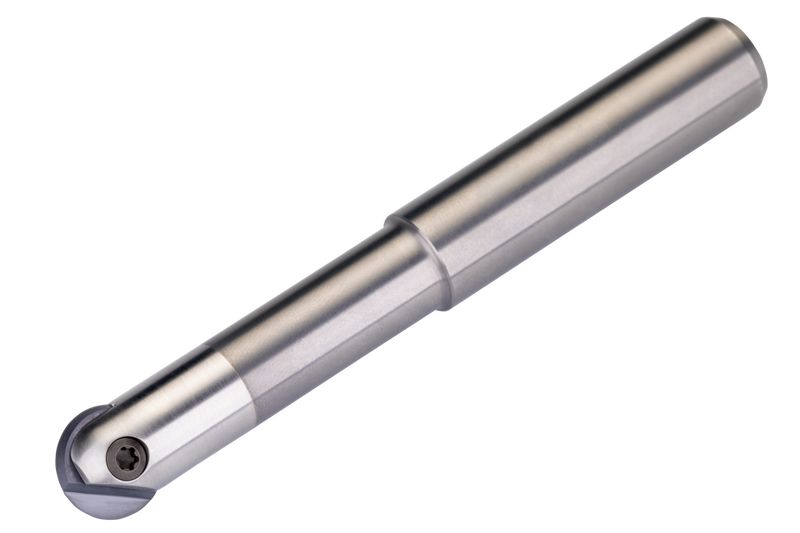

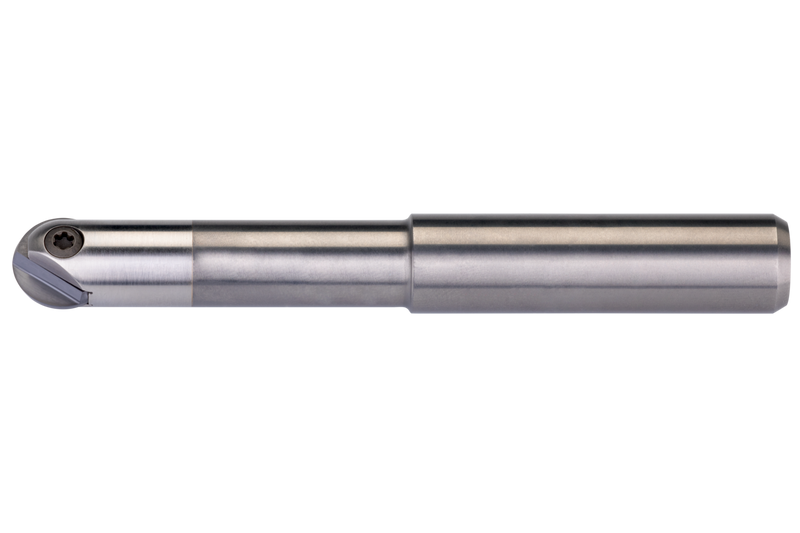

Fraise à copier dotée d'un insert simple face PPH 10, PPHE 10, PPHT 10 ou PPHF 10, diamètre de coupe 10 mm avec queue cylindrique en carbure de 12 mm selon DIN 1835A, longueur fonctionnelle 21,9 mm et longueur totale 92 mm pour l'usinage en copiage avec une profondeur de coupe maximale de 0,3-4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-10/02-QC12-092HSCW
Product Number7024736
Product FamilyK2-PPH

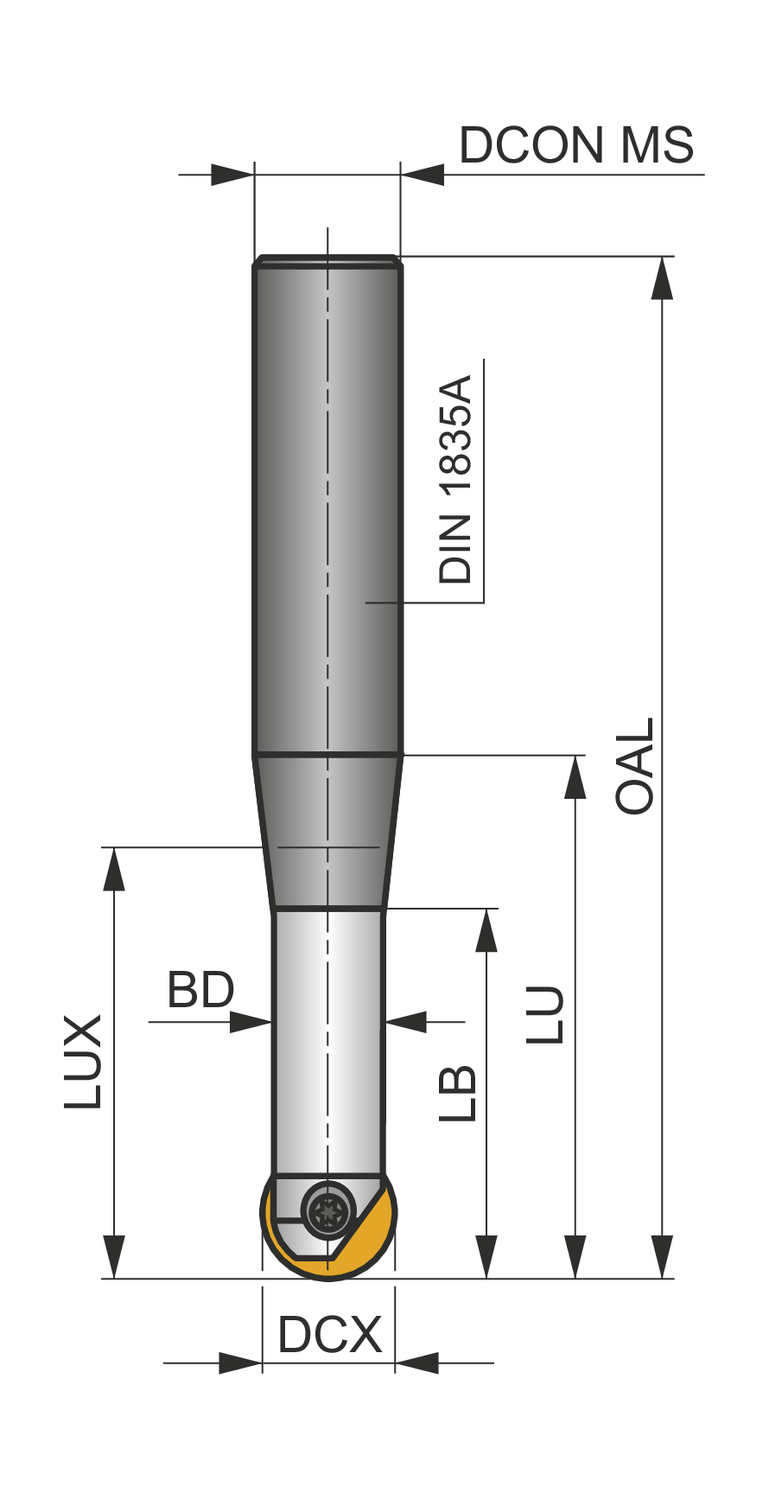

Dimensions
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)38.1 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024736
EAN3603603104099
File Type Download
PPH-10/02-QC12-092HSCW — 3D Model STP Download
PPH-10/02-QC12-092HSCW — 2D Model DXF Download
PPH-10/02-QC12-092HSCW — Line Drawing PDF Download
