PPH-10/02-QC12-132HSCW
PPH-10/02-QC12-132HSCW
PPH-10/02-QC12-132HSCW

PPH-10/02-QC12-132HSCW

UGC DOR7024740
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 CAD - $895.00 CAD
$895.00 CAD
$895.00 CAD - $895.00 CAD
$895.00 CAD

Vendu en lots de : 1

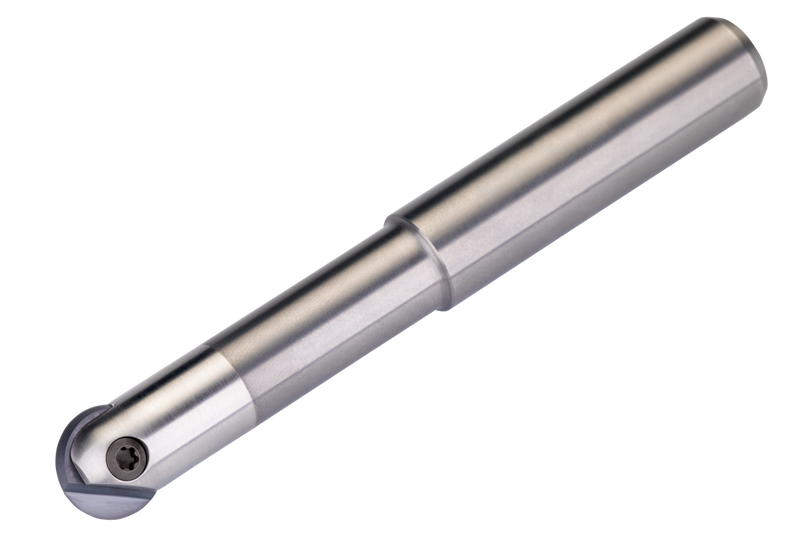

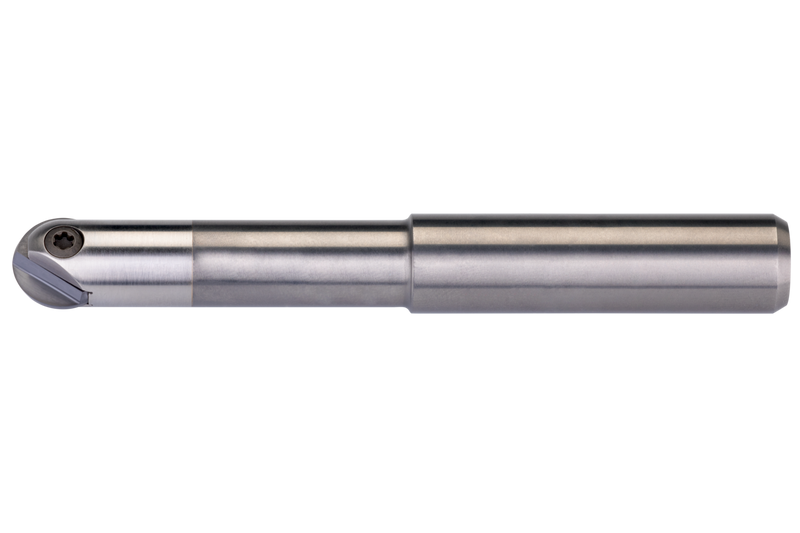

Fraise à copier qui utilise 1 insert simple face PPH 10, PPHE 10, PPHT 10 ou PPHF 10, diamètre de coupe 10mm avec queue cylindrique en carbure de 12mm selon DIN 1835A, longueur fonctionnelle 21.8mm et longueur totale 132mm pour fraisage à copier avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-10/02-QC12-132HSCW
Product Number7024740
Product FamilyK2-PPH

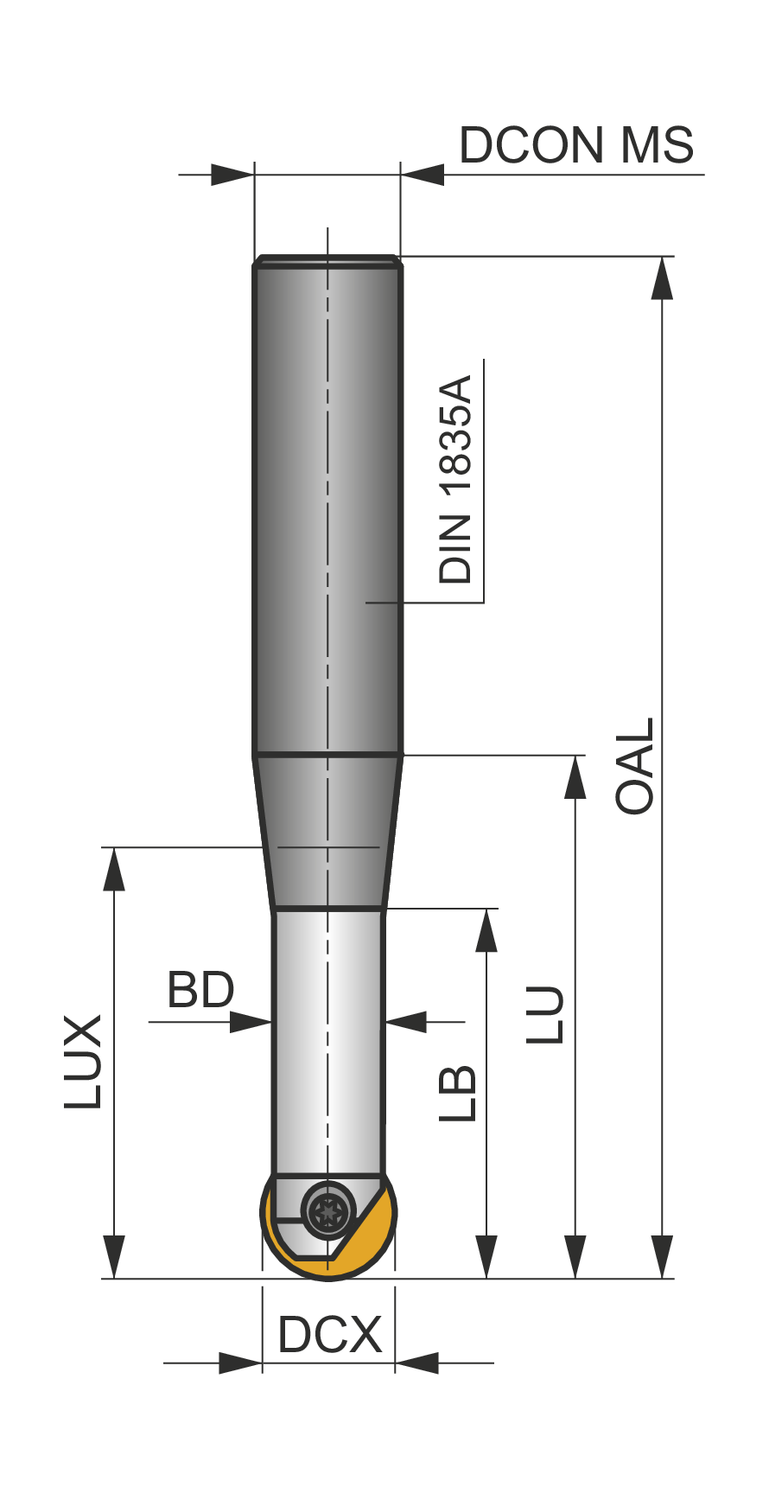

Dimensions
Overall Length — in (OAL)5.197"
Overall Length — mm (OAL)132.0 mm
Usable Length — mm (LU)75.1 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024740
EAN3603603104136
File Type Download
PPH-10/02-QC12-132HSCW — 3D Model STP Download
PPH-10/02-QC12-132HSCW — 2D Model DXF Download
PPH-10/02-QC12-132HSCW — Line Drawing PDF Download
