PPH-12/02-QC12-110
PPH-12/02-QC12-110
PPH-12/02-QC12-110

PPH-12/02-QC12-110

UGC DOR7024743
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$487.00 CAD - $487.00 CAD
$487.00 CAD
$487.00 CAD - $487.00 CAD
$487.00 CAD

Vendu en lots de : 1

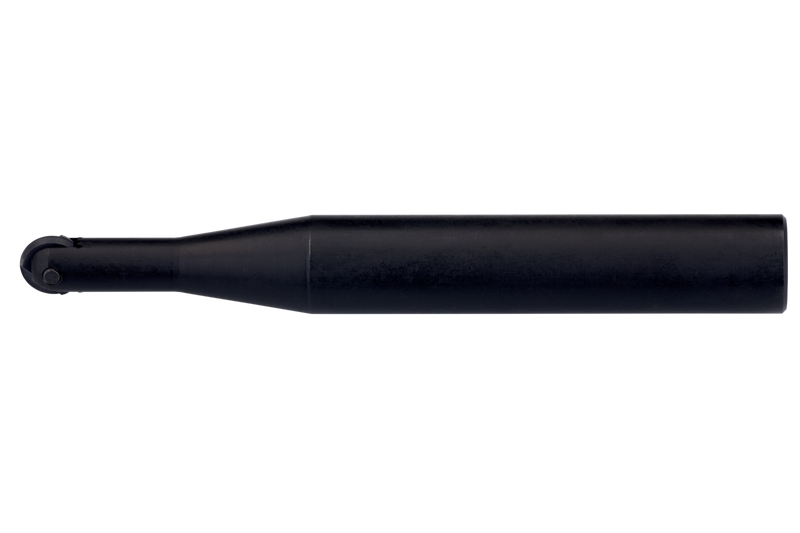

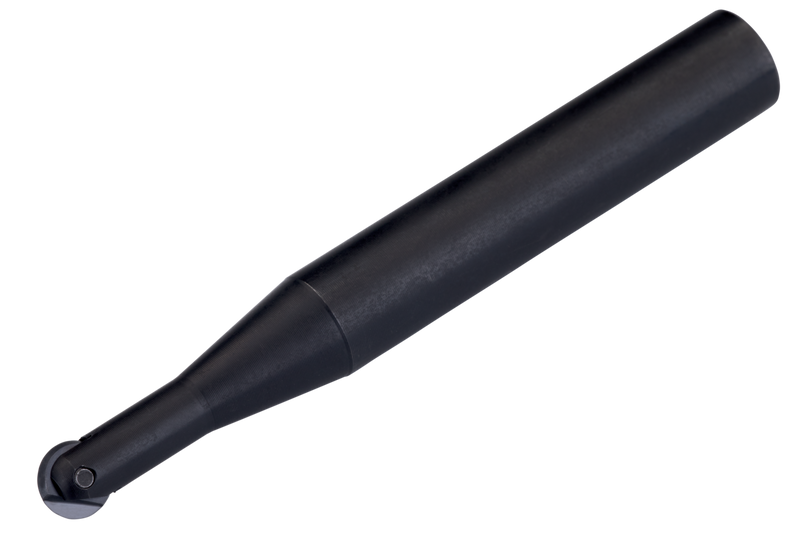

Fraise à copier utilisant 1 plaquette simple face PPH 12.., PPHE 12.., PPHT 12.. ou PPHF 12.., diamètre de coupe 12mm avec queue cylindrique 12mm selon DIN 1835A, longueur totale 110mm pour le fraisage à copier avec une profondeur de coupe maximale de 0,3-4,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-12/02-QC12-110
Product Number7024743
Product FamilyK2-PPH

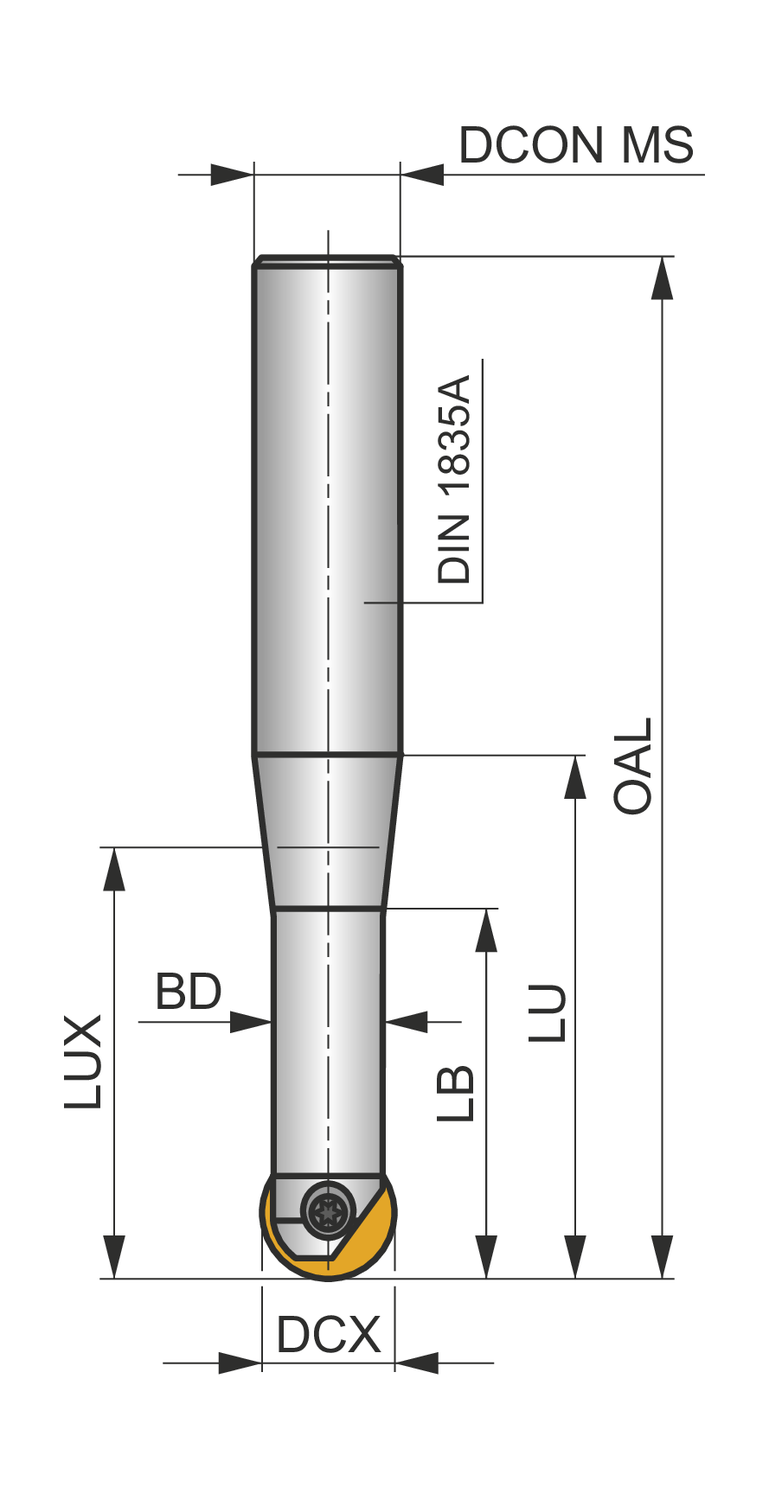

Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)53.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024743
EAN3603603104167
File Type Download
PPH-12/02-QC12-110 — 3D Model STP Download
PPH-12/02-QC12-110 — 2D Model DXF Download
PPH-12/02-QC12-110 — Line Drawing PDF Download
