PPH-12/02-QC12-145
PPH-12/02-QC12-145
PPH-12/02-QC12-145

PPH-12/02-QC12-145

UGC DOR7024745
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$487.00 CAD - $487.00 CAD
$487.00 CAD
$487.00 CAD - $487.00 CAD
$487.00 CAD

Vendu en lots de : 1

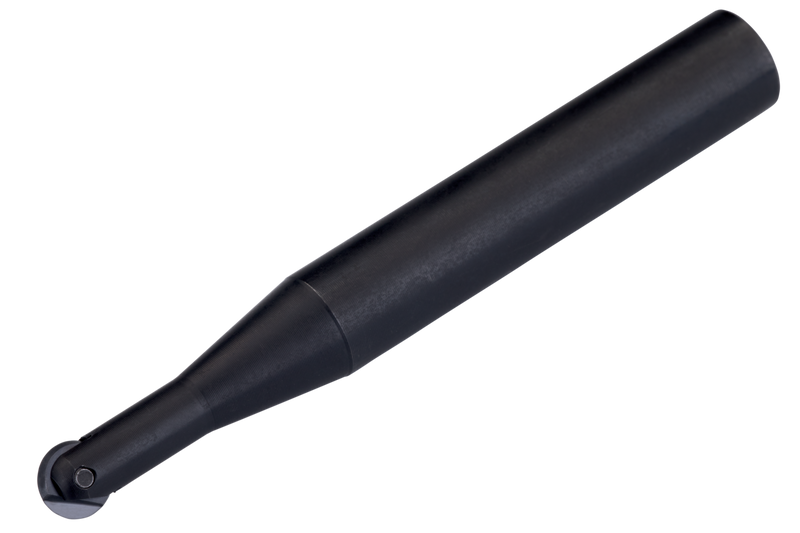

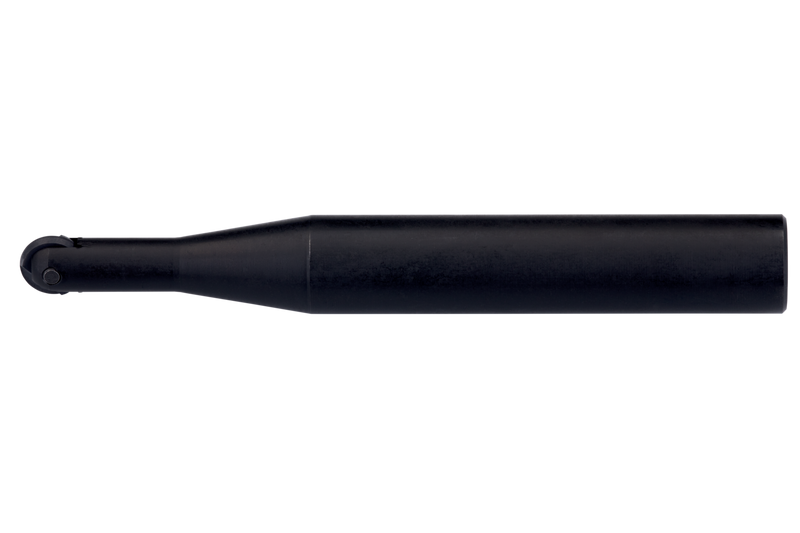

Fraise à copier utilisant 1 plaquette simple face PPH 12.., PPHE 12.., PPHE 12.., PPHT 12.. ou PPHF 12.., diamètre de coupe de 12 mm avec queue cylindrique de 12 mm selon DIN 1835A, longueur totale de 145 mm pour le copiage avec une profondeur de coupe maximale de 0,3 à 4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-12/02-QC12-145
Product Number7024745
Product FamilyK2-PPH

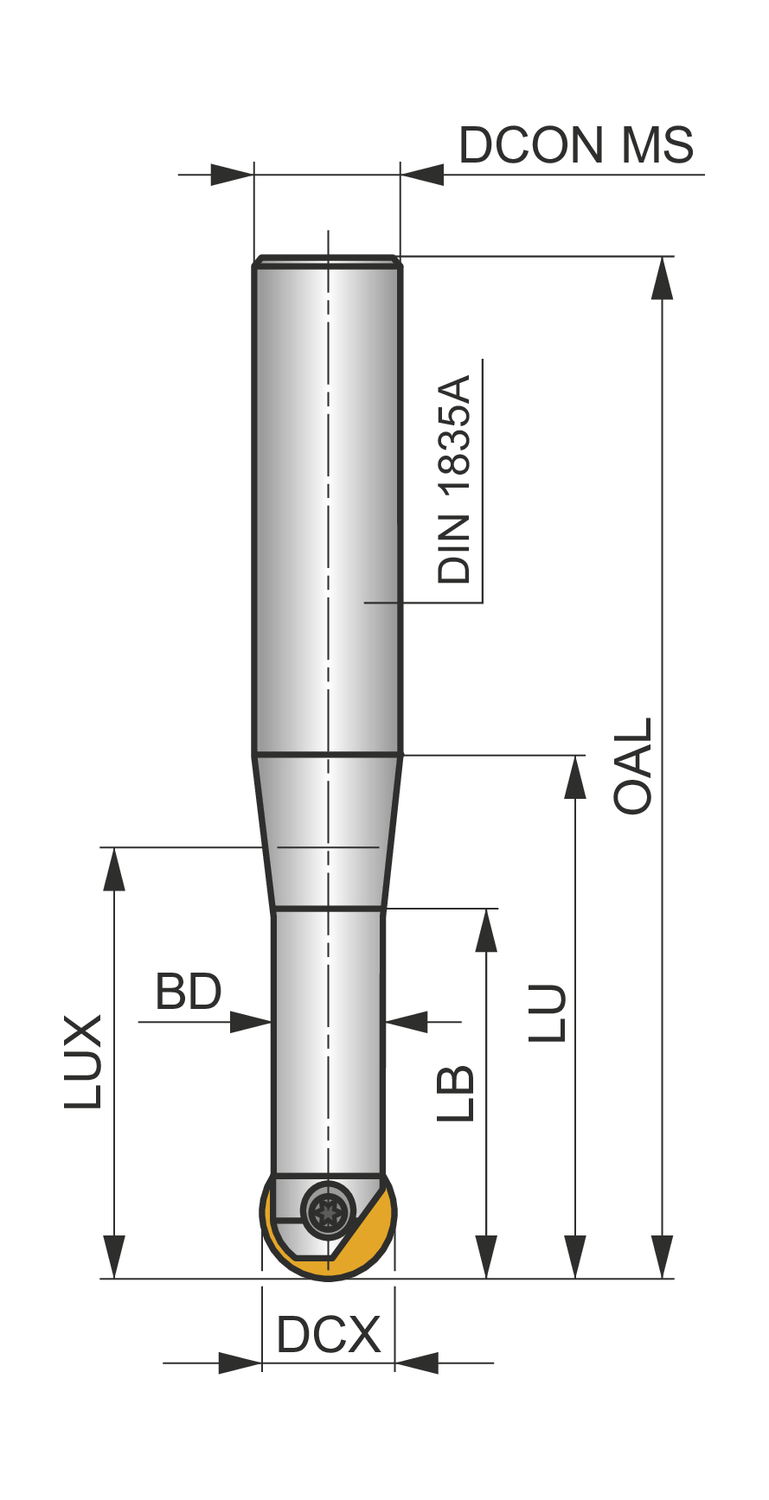

Dimensions
Overall Length — in (OAL)5.709"
Overall Length — mm (OAL)145.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024745
EAN3603603104181
File Type Download
PPH-12/02-QC12-145 — 3D Model STP Download
PPH-12/02-QC12-145 — 2D Model DXF Download
PPH-12/02-QC12-145 — Line Drawing PDF Download
