PPH-12/02-QC16-145HSCW
PPH-12/02-QC16-145HSCW
PPH-12/02-QC16-145HSCW

PPH-12/02-QC16-145HSCW

UGC DOR7024747
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,155.00 CAD - $1,155.00 CAD
$1,155.00 CAD
$1,155.00 CAD - $1,155.00 CAD
$1,155.00 CAD

Vendu en lots de : 1

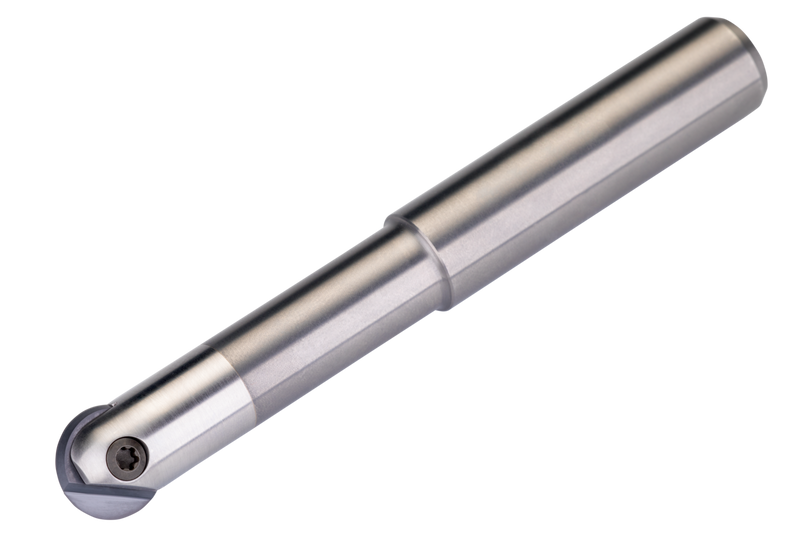

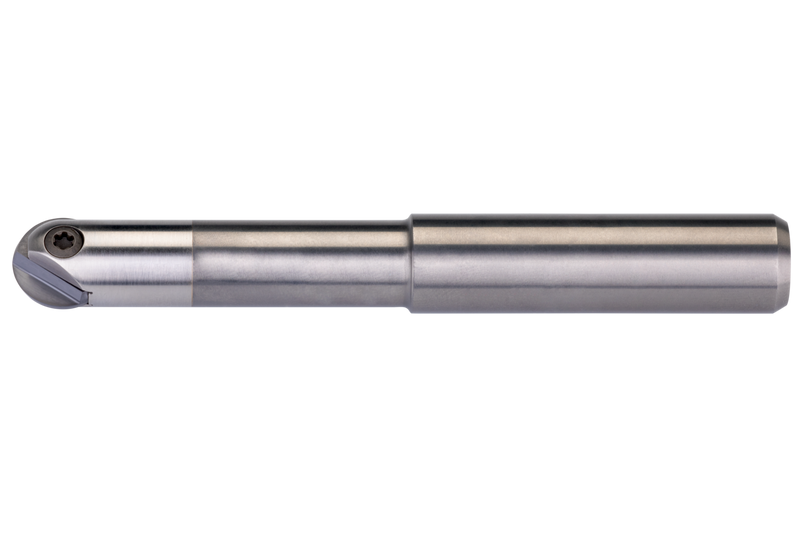

Fraise à copier qui utilise 1 insert simple face PPH 12, PPHE 12, PPHT 12 ou PPHF 12, diamètre de coupe 12 mm avec queue cylindrique en carbure de 16 mm selon DIN 1835A, longueur fonctionnelle 21,5 mm et longueur totale 145 mm pour le fraisage à copier avec une profondeur de coupe maximale de 0,3 à 4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-12/02-QC16-145HSCW
Product Number7024747
Product FamilyK2-PPH

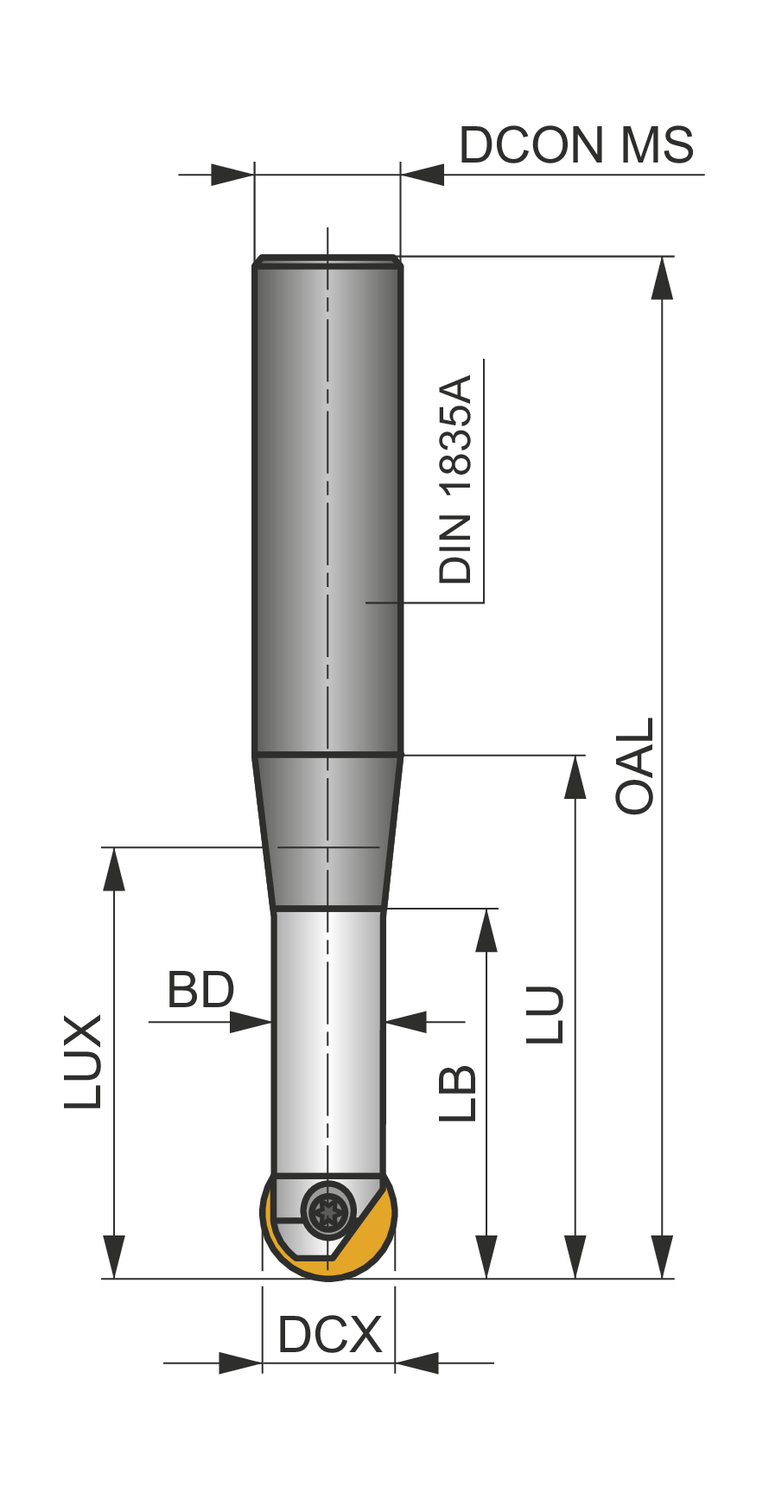

Dimensions
Overall Length — in (OAL)5.709"
Overall Length — mm (OAL)145.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024747
EAN3603603104204
File Type Download
PPH-12/02-QC16-145HSCW — 3D Model STP Download
PPH-12/02-QC16-145HSCW — 2D Model DXF Download
PPH-12/02-QC16-145HSCW — Line Drawing PDF Download
