PPH-16/02-025-P08
PPH-16/02-025-P08
PPH-16/02-025-P08

PPH-16/02-025-P08

UGC DOR7024748
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$522.00 CAD - $522.00 CAD
$522.00 CAD
$522.00 CAD - $522.00 CAD
$522.00 CAD

Vendu en lots de : 1

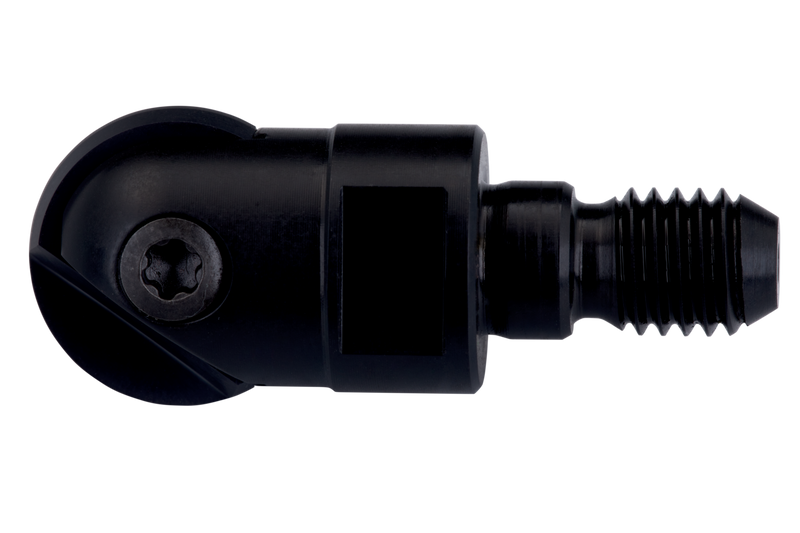

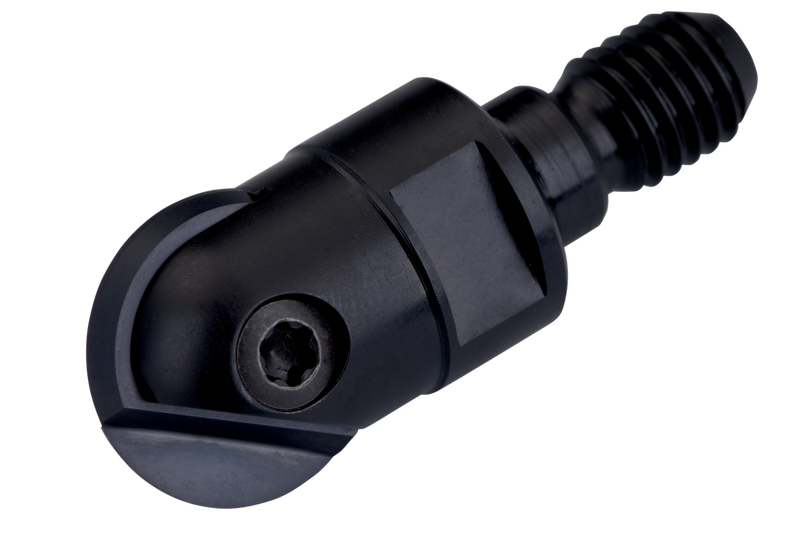

Fraise à copier utilisant 1 plaquette simple face PPH 16, PPHE 16, PPHT 16 ou PPHF 16, diamètre de coupe 16 mm avec queue filetée M8 pour porte-outils modulaires standard, longueur de dépassement de 25 mm pour le fraisage en copie avec une profondeur de coupe maximale de 0,3 à 4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-16/02-025-P08
Product Number7024748
Product FamilyK2-PPH

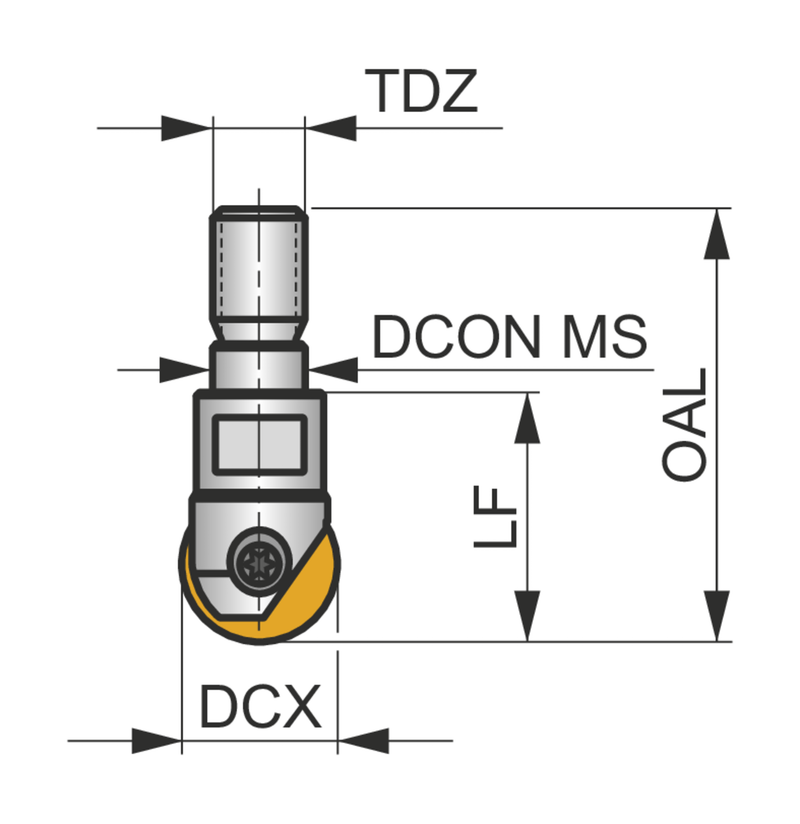

Dimensions
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignK2-PPH
ShankRaccord fileté
Reference Numbers
EDP Number7024748
EAN3603603104211
File Type Download
PPH-16/02-025-P08 — 3D Model STP Download
PPH-16/02-025-P08 — 2D Model DXF Download
PPH-16/02-025-P08 — Line Drawing PDF Download
