PPH-16/02-QC16-123
PPH-16/02-QC16-123
PPH-16/02-QC16-123

PPH-16/02-QC16-123

UGC DOR7024751
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$522.00 CAD - $522.00 CAD
$522.00 CAD
$522.00 CAD - $522.00 CAD
$522.00 CAD

Vendu en lots de : 1

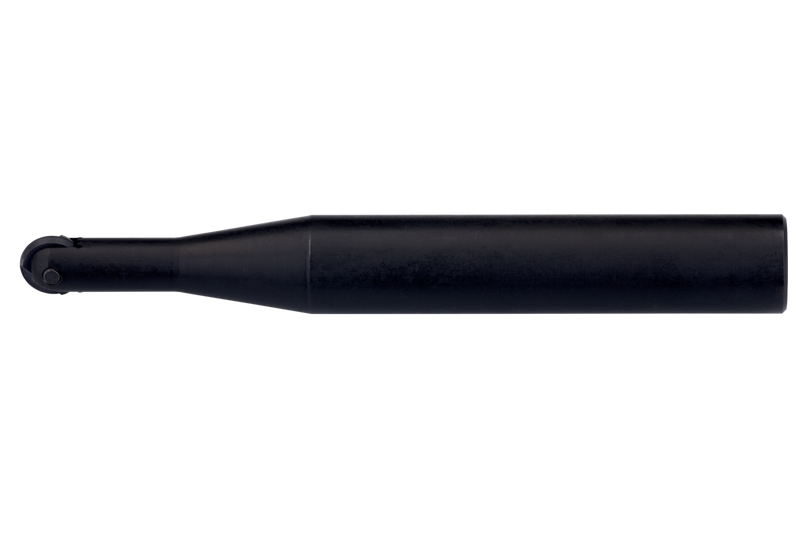

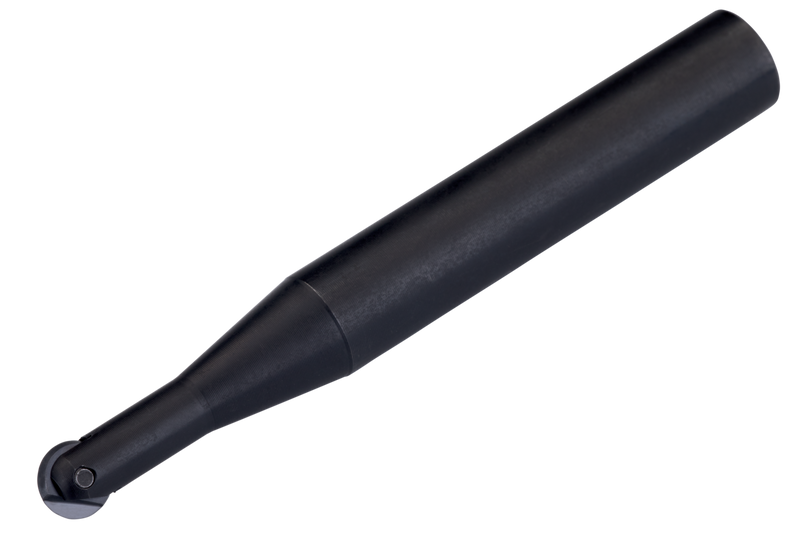

Fraise à copier utilisant 1 plaquette simple face PPH 16.., PPHE 16.., PPHT 16.. ou PPHF 16.., diamètre de coupe de 16mm avec queue cylindrique de 16mm selon DIN 1835A, longueur totale de 123mm pour l'usinage en copiage avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-16/02-QC16-123
Product Number7024751
Product FamilyK2-PPH

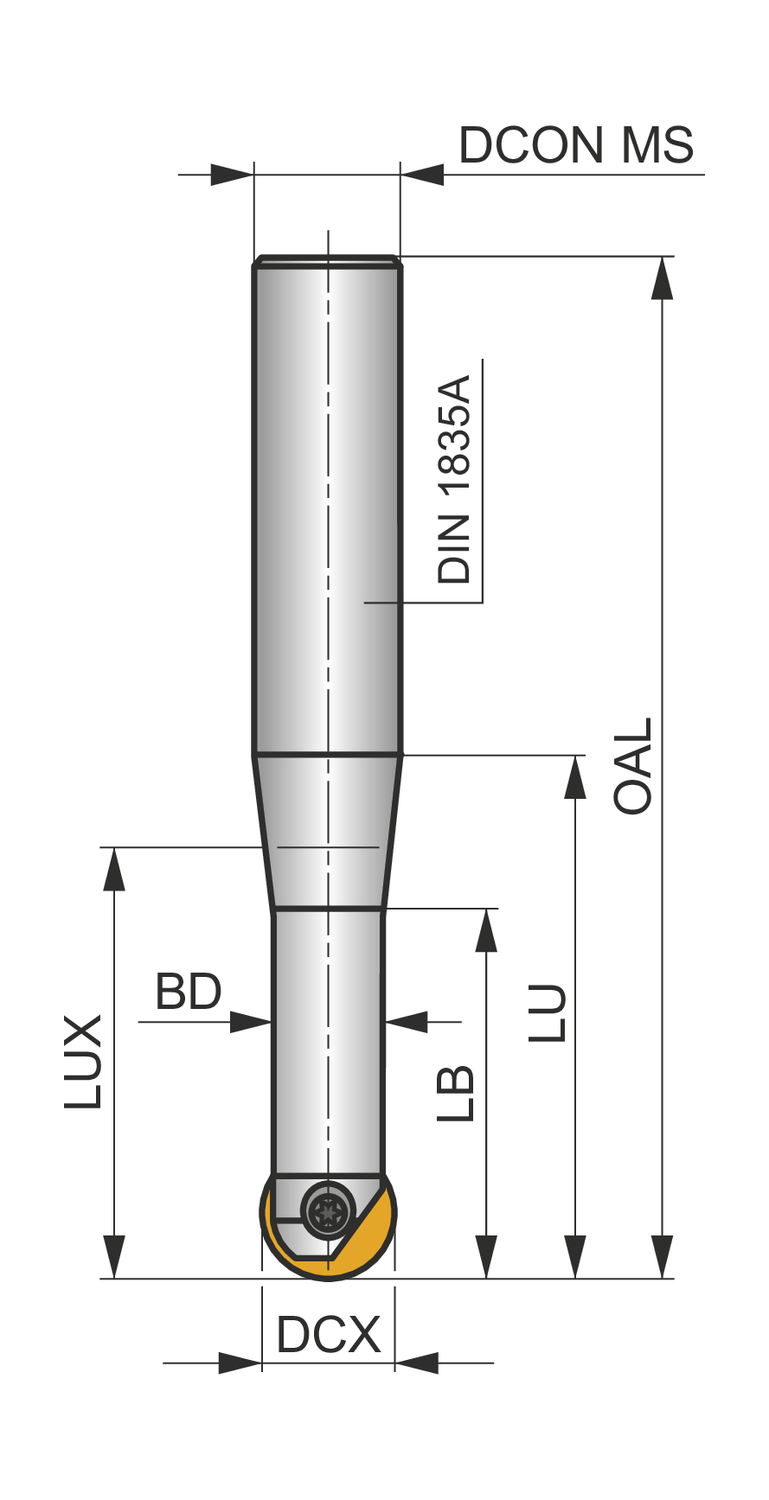

Dimensions
Overall Length — in (OAL)4.843"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)63.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024751
EAN3603603104242
File Type Download
PPH-16/02-QC16-123 — Line Drawing PDF Download
