PPH-16/02-QC16-123HSCW
PPH-16/02-QC16-123HSCW
PPH-16/02-QC16-123HSCW

PPH-16/02-QC16-123HSCW

UGC DOR7024752
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,068.00 CAD - $1,068.00 CAD
$1,068.00 CAD
$1,068.00 CAD - $1,068.00 CAD
$1,068.00 CAD

Vendu en lots de : 1

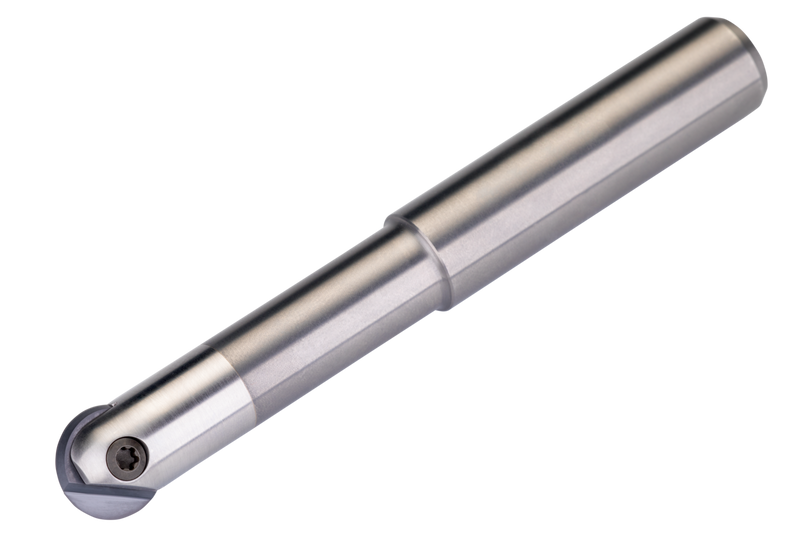

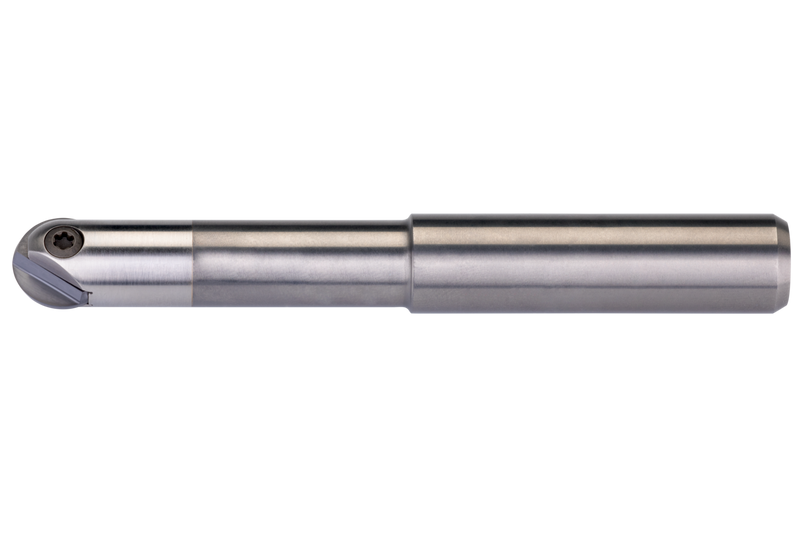

Fraise à copier utilisant 1 plaquette simple face PPH 16, PPHE 16, PPHT 16 ou PPHF 16, diamètre de coupe 16 mm avec queue parallèle en carbure de 16 mm selon DIN 1835A, longueur totale 123 mm pour le copiage avec une profondeur de coupe maximale de 0,3-4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-16/02-QC16-123HSCW
Product Number7024752
Product FamilyK2-PPH

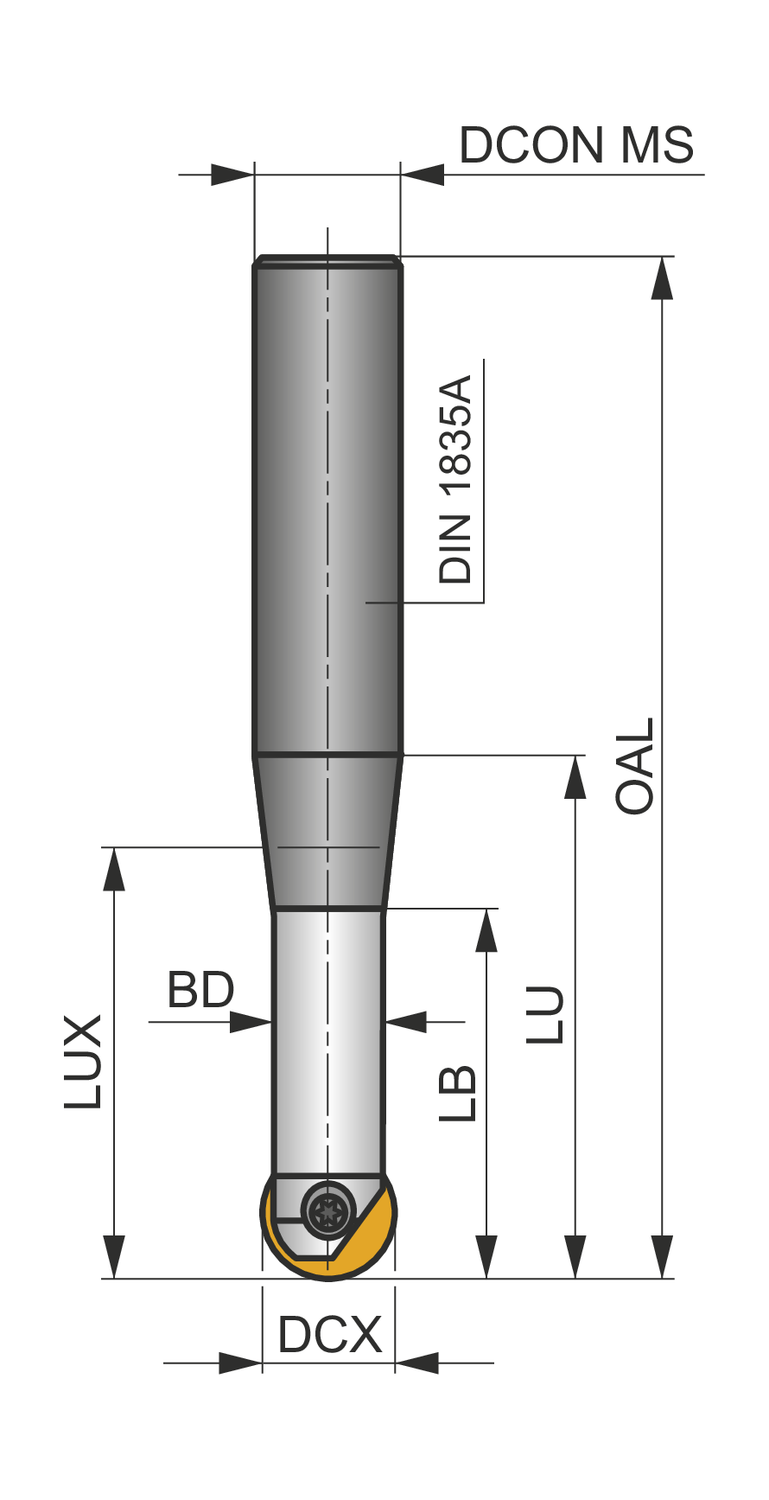

Dimensions
Overall Length — in (OAL)4.843"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)63.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024752
EAN3603603104259
File Type Download
PPH-16/02-QC16-123HSCW — 3D Model STP Download
PPH-16/02-QC16-123HSCW — 2D Model DXF Download
PPH-16/02-QC16-123HSCW — Line Drawing PDF Download
