PPH-20/02-QC20-141HSCW
PPH-20/02-QC20-141HSCW
PPH-20/02-QC20-141HSCW

PPH-20/02-QC20-141HSCW

UGC DOR7024760
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,385.00 CAD - $1,385.00 CAD
$1,385.00 CAD
$1,385.00 CAD - $1,385.00 CAD
$1,385.00 CAD

Vendu en lots de : 1

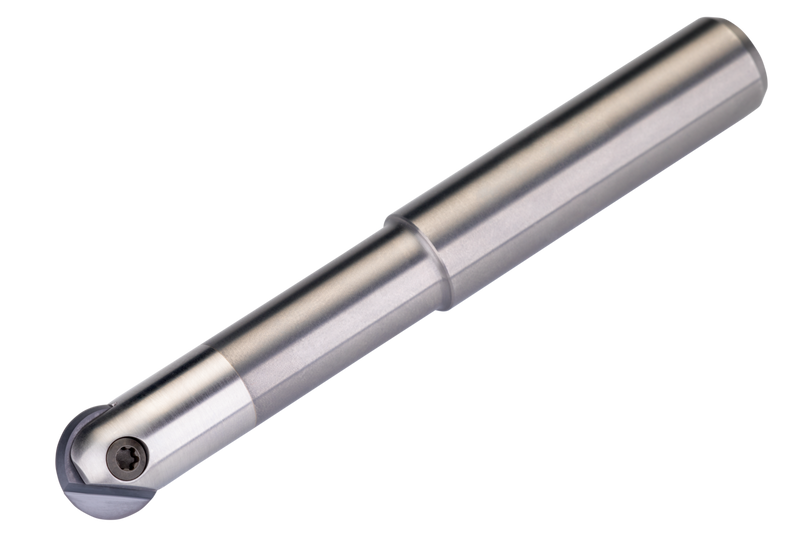

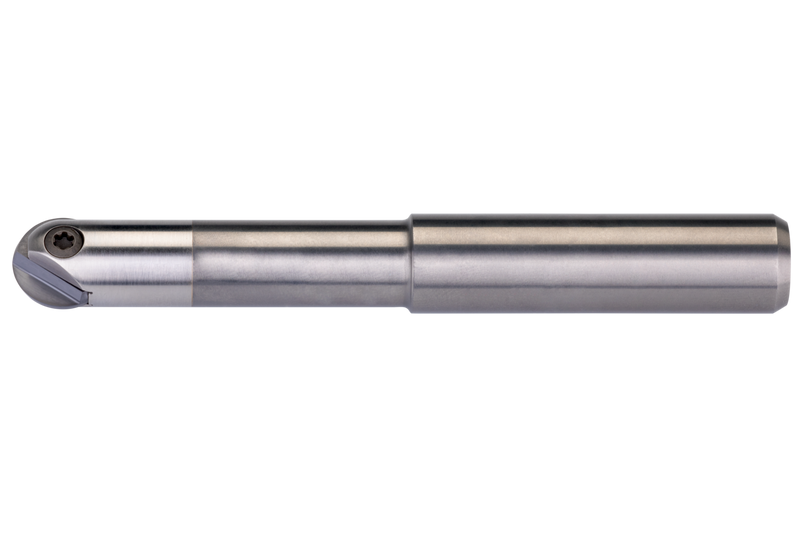

Fraise à copier qui utilise 1 plaquette simple face PPH 20, PPHE 20, PPHT 20 ou PPHF 20, diamètre de coupe 20 mm avec queue cylindrique en carbure de 20 mm selon DIN 1835A, longueur totale 141 mm pour le fraisage en copie avec une profondeur de coupe maximale de 0,3 à 4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-20/02-QC20-141HSCW
Product Number7024760
Product FamilyK2-PPH

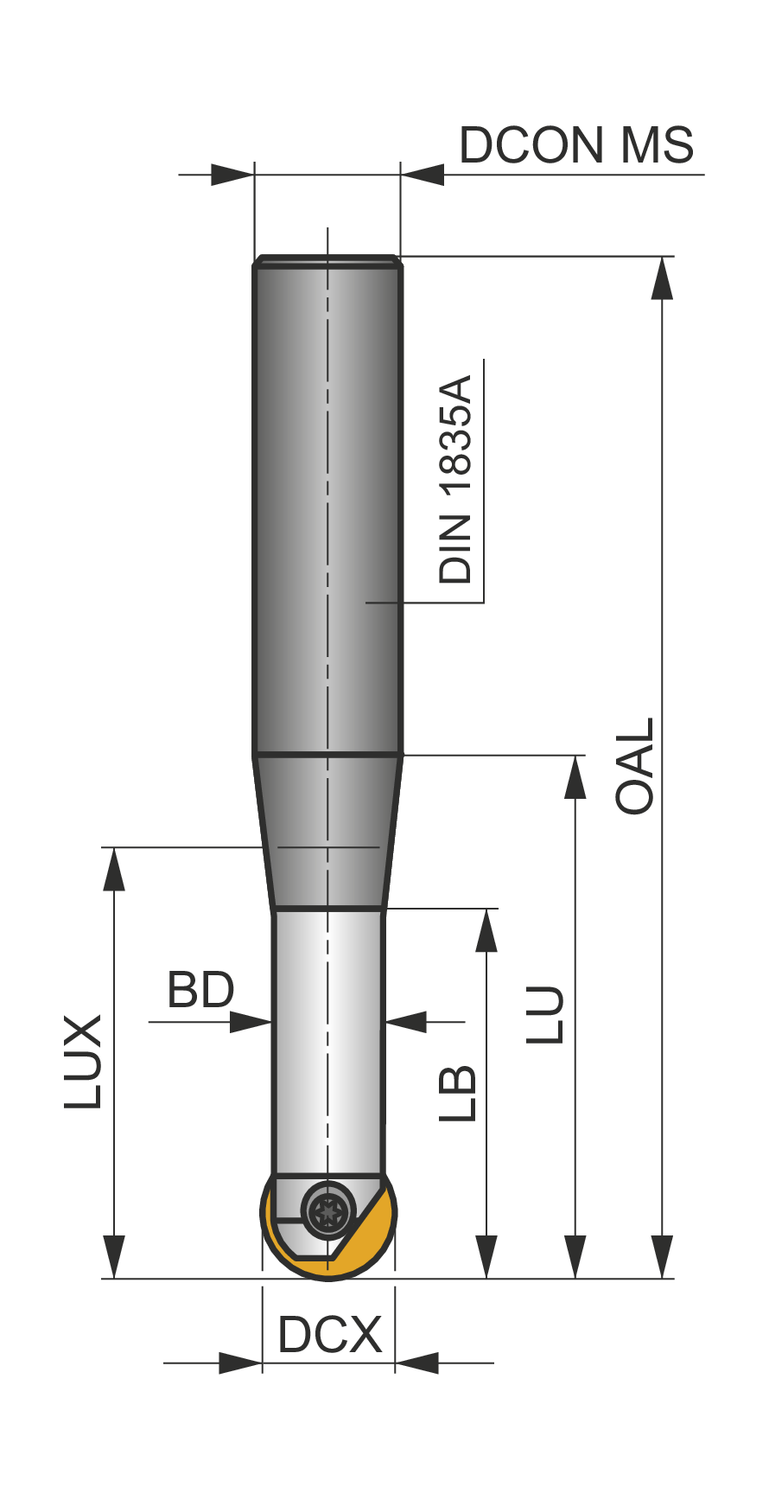

Dimensions
Overall Length — in (OAL)5.551"
Overall Length — mm (OAL)141.0 mm
Usable Length — mm (LU)75.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024760
EAN3603603104334
File Type Download
PPH-20/02-QC20-141HSCW — 3D Model STP Download
PPH-20/02-QC20-141HSCW — 2D Model DXF Download
PPH-20/02-QC20-141HSCW — Line Drawing PDF Download
