PPH-20/02-QC25-191HSCW
PPH-20/02-QC25-191HSCW
PPH-20/02-QC25-191HSCW

PPH-20/02-QC25-191HSCW

UGC DOR7024763
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,788.00 CAD - $1,788.00 CAD
$1,788.00 CAD
$1,788.00 CAD - $1,788.00 CAD
$1,788.00 CAD

Vendu en lots de : 1

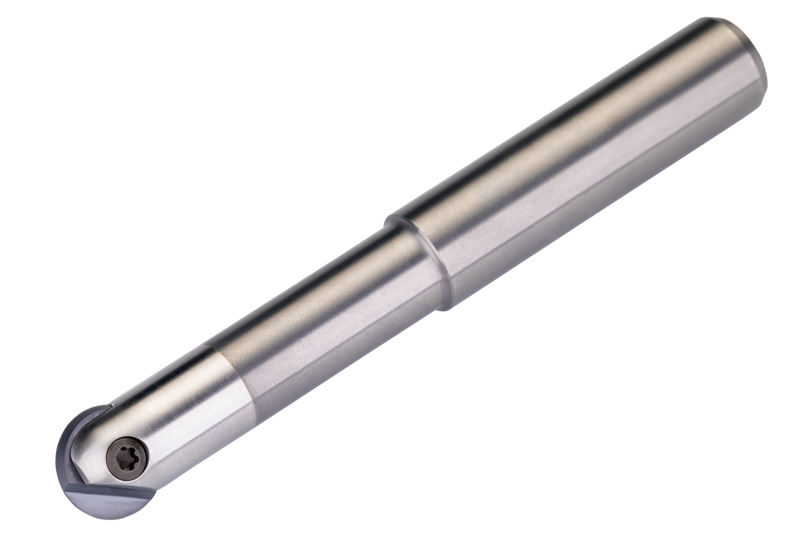

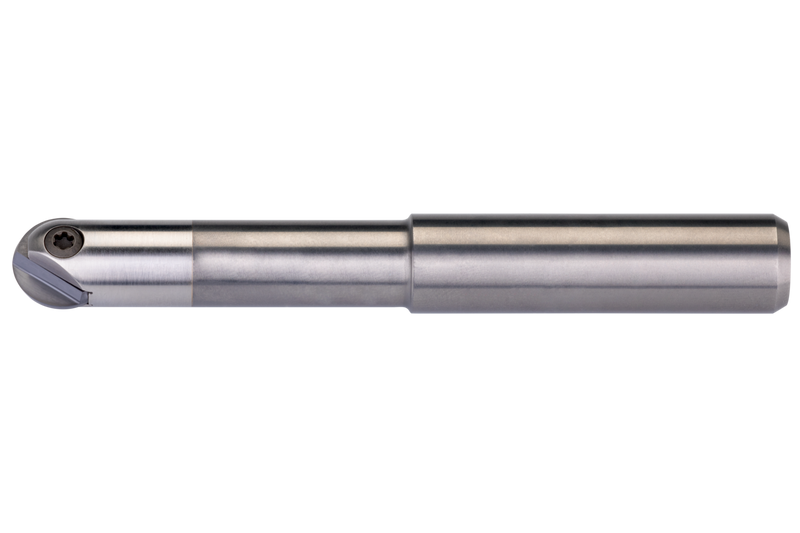

Fraise à copier qui utilise 1 plaquette simple face PPH 20, PPHE 20, PPHT 20 ou PPHF 20, diamètre de coupe 20 mm avec queue cylindrique en carbure de 25 mm selon DIN 1835A, longueur utile de 35 mm et longueur totale de 191 mm pour le fraisage en plongée avec une profondeur de coupe maximale de 0,3-4,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-20/02-QC25-191HSCW
Product Number7024763
Product FamilyK2-PPH

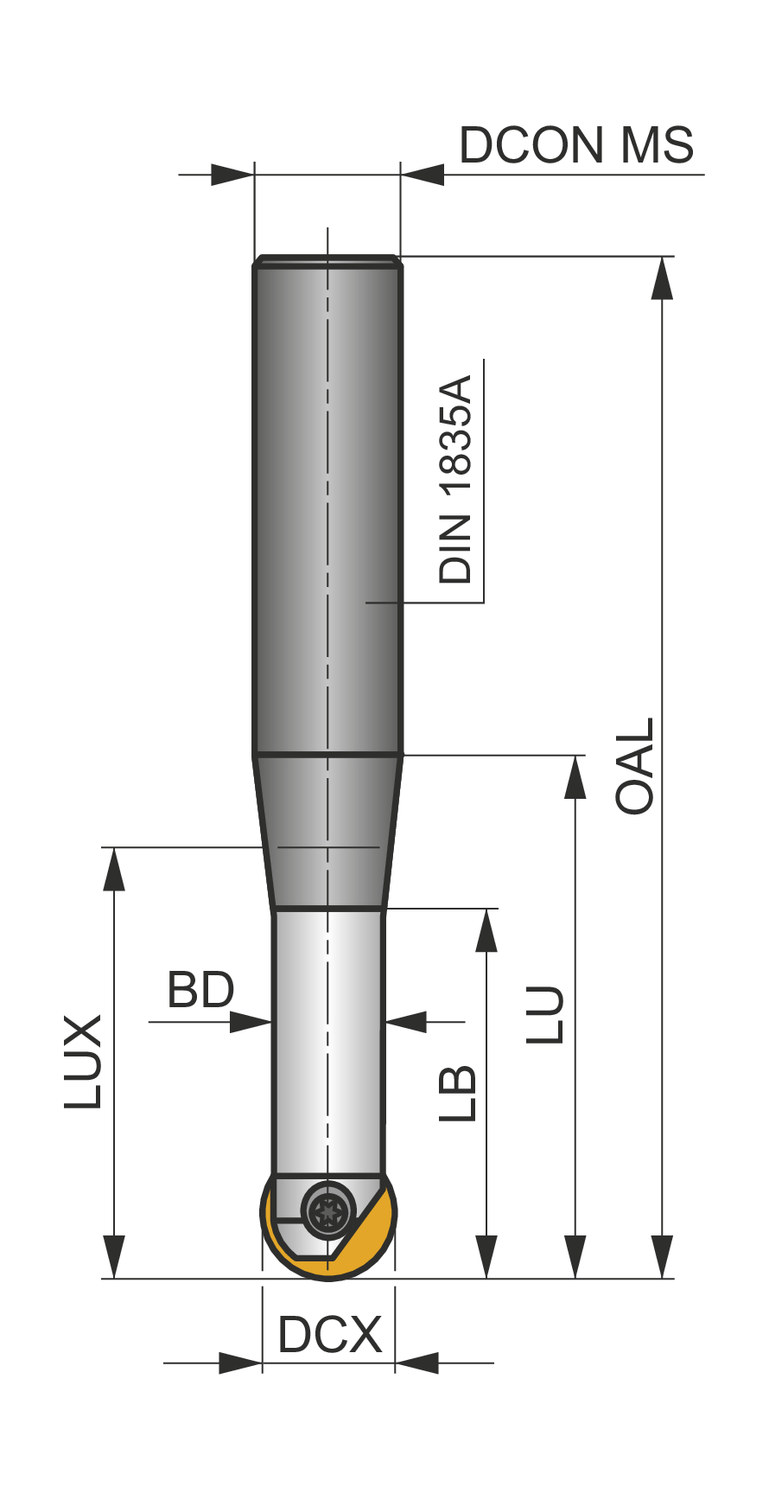

Dimensions
Overall Length — in (OAL)7.52"
Overall Length — mm (OAL)191.0 mm
Usable Length — mm (LU)115.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024763
EAN3603603104365
File Type Download
PPH-20/02-QC25-191HSCW — 3D Model STP Download
PPH-20/02-QC25-191HSCW — 2D Model DXF Download
PPH-20/02-QC25-191HSCW — Line Drawing PDF Download
