PPH-32/02-QC32-186
PPH-32/02-QC32-186
PPH-32/02-QC32-186

PPH-32/02-QC32-186

UGC DOR7024767
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$702.00 CAD - $702.00 CAD
$702.00 CAD
$702.00 CAD - $702.00 CAD
$702.00 CAD

Vendu en lots de : 1

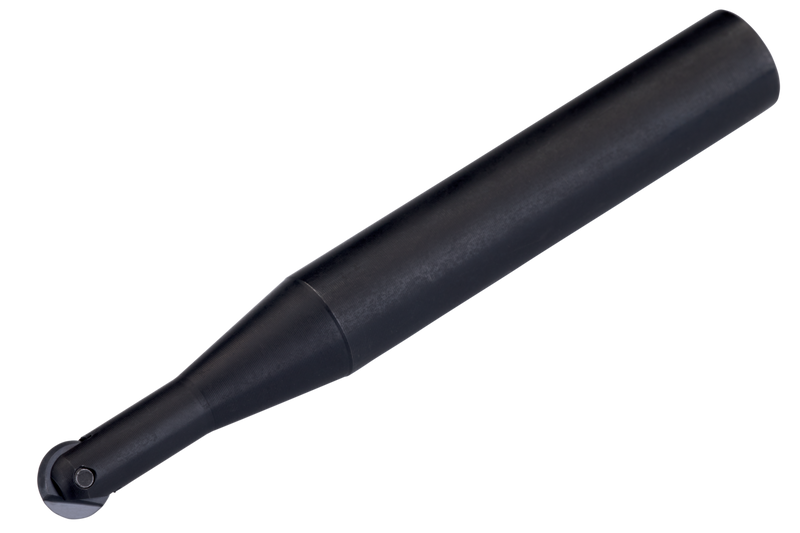

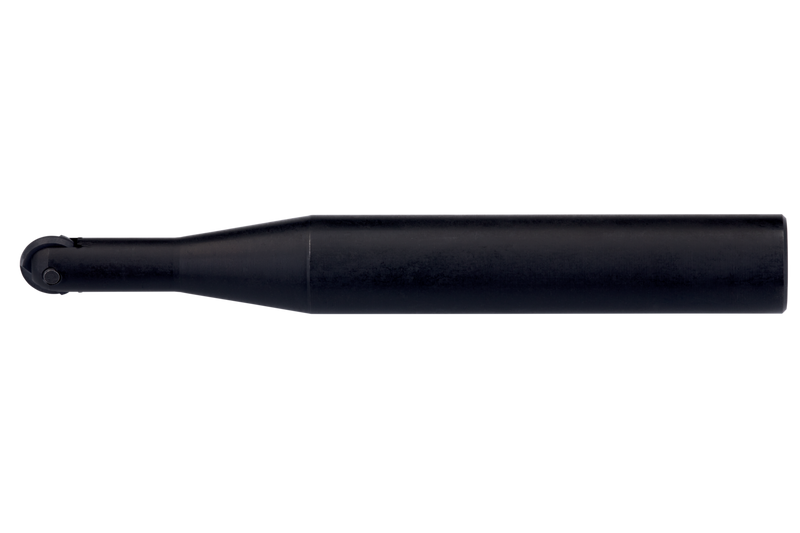

Fraise à copier dotée d'une plaquette simple face PPH 32.., diamètre de coupe 32mm avec queue cylindrique de 32mm conforme à la norme DIN 1835A, longueur totale 186mm pour le fraisage à copier avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-32/02-QC32-186
Product Number7024767
Product FamilyK2-PPH

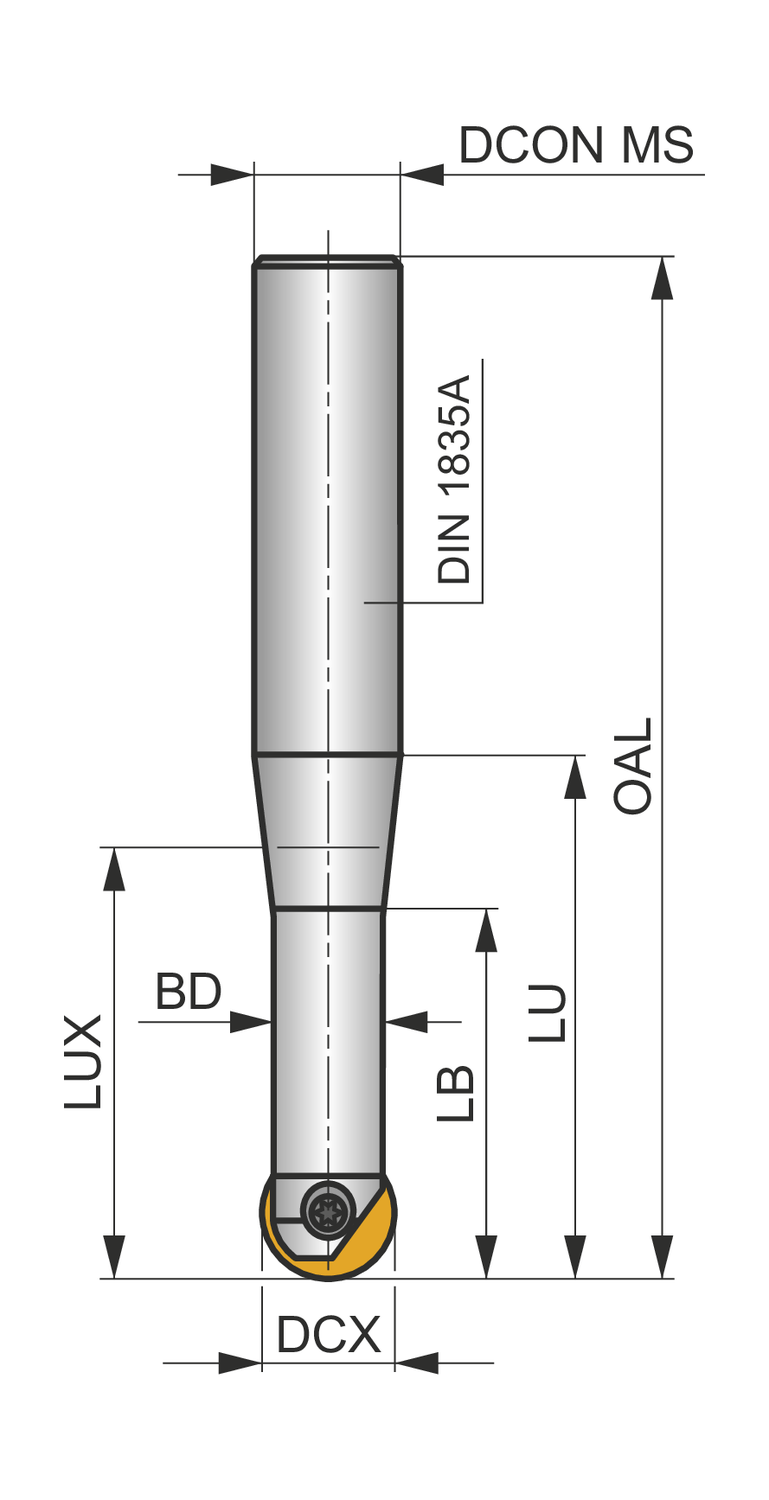

Dimensions
Overall Length — in (OAL)7.323"
Overall Length — mm (OAL)186.0 mm
Usable Length — mm (LU)107.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024767
EAN3603603104402
File Type Download
PPH-32/02-QC32-186 — 3D Model STP Download
PPH-32/02-QC32-186 — 2D Model DXF Download
PPH-32/02-QC32-186 — Line Drawing PDF Download
