PPH-32/02-QC32-240
PPH-32/02-QC32-240
PPH-32/02-QC32-240

PPH-32/02-QC32-240

UGC DOR7024768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$702.00 CAD - $702.00 CAD
$702.00 CAD
$702.00 CAD - $702.00 CAD
$702.00 CAD

Vendu en lots de : 1

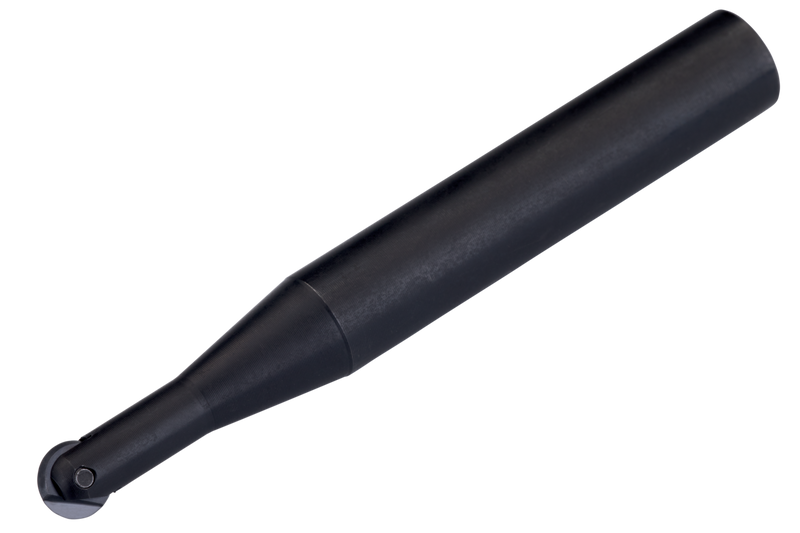

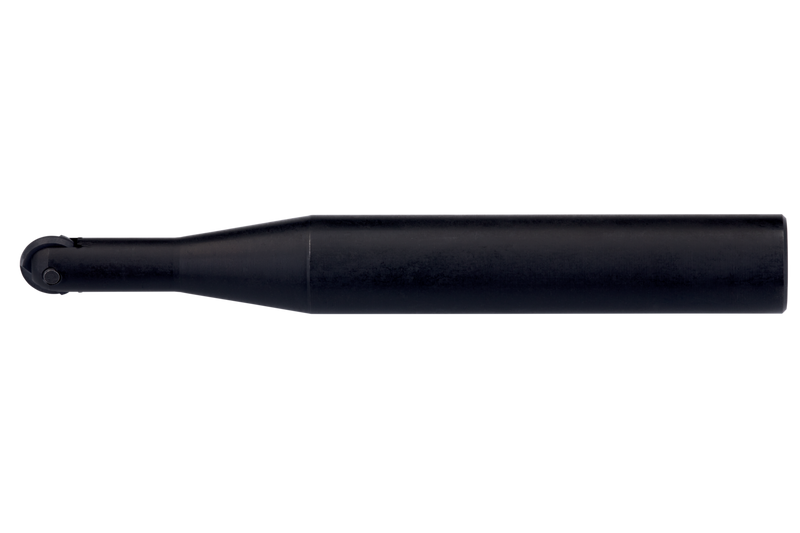

Fraise à copier qui utilise 1 insert PPH 32.. simple face, diamètre de coupe 32mm avec queue cylindrique de 32mm selon DIN 1835A, longueur totale 240mm pour le copiage avec une profondeur de coupe maximale de 0.3-4.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPH-32/02-QC32-240
Product Number7024768
Product FamilyK2-PPH

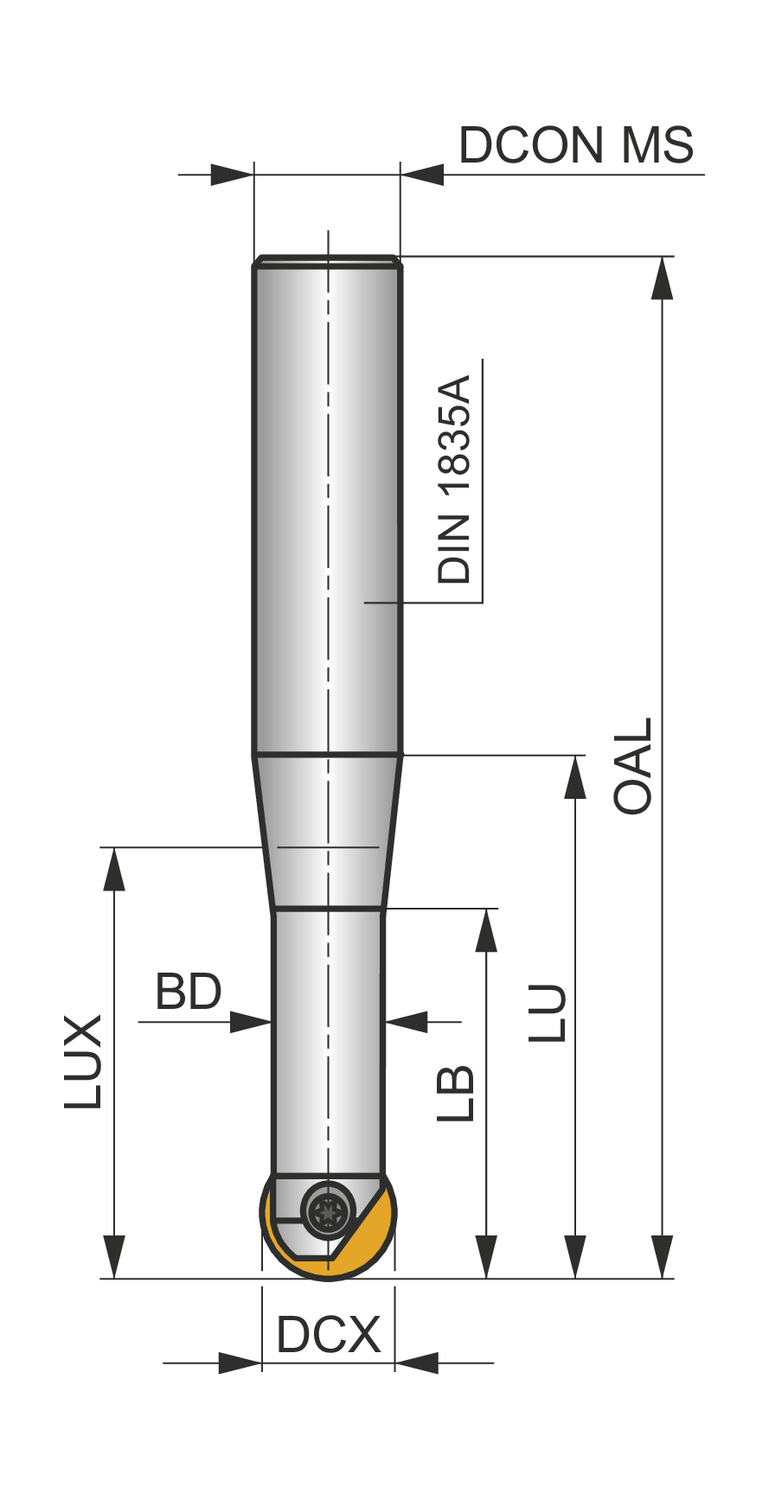

Dimensions
Overall Length — in (OAL)9.449"
Overall Length — mm (OAL)240.0 mm
Usable Length — mm (LU)160.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignK2-PPH
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number7024768
EAN3603603104419
File Type Download
PPH-32/02-QC32-240 — 3D Model STP Download
PPH-32/02-QC32-240 — 2D Model DXF Download
PPH-32/02-QC32-240 — Line Drawing PDF Download
