DCBNL 3225 P 12
DCBNL 3225 P 12

DCBNL 3225 P 12

UGC DOR7028400
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$182.00 CAD - $182.00 CAD
$182.00 CAD
$182.00 CAD - $182.00 CAD
$182.00 CAD

Vendu en lots de : 1

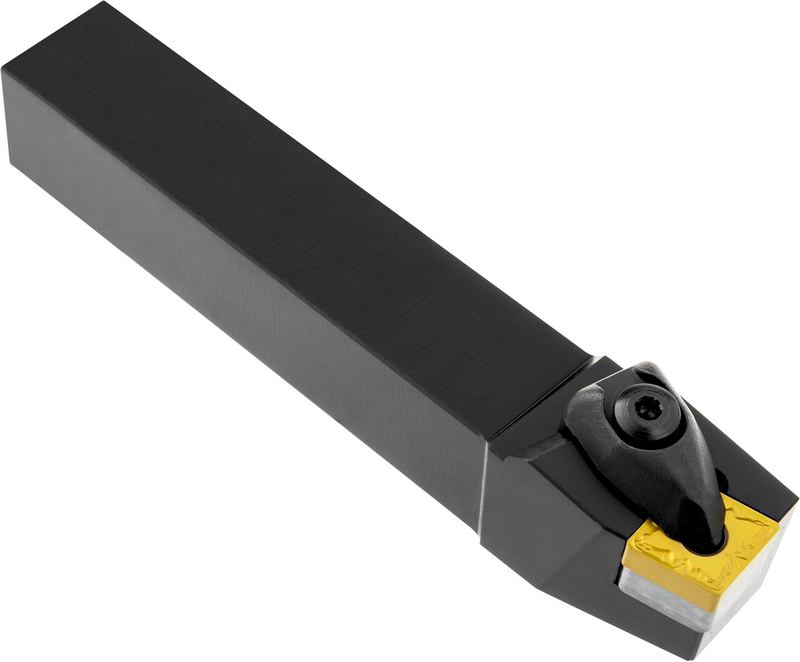

Outil de chariotage à double serrage pour plaquette négative en losange à 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe à gauche à 75° avec queue droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le chanfreinage, le chariotage conique et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCBNL 3225 P 12
Product Number7028400
Product FamilyCCBD(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028400
EAN3603603105058
File Type Download

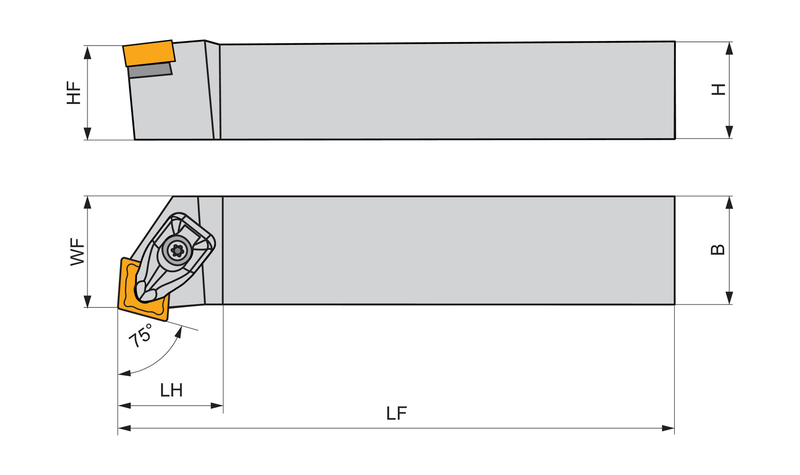

DCBNL 3225 P 12 — Line Drawing PDF Download
