DCBNL 3225 P 16
DCBNL 3225 P 16

DCBNL 3225 P 16

UGC DOR7028401
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$182.00 CAD - $182.00 CAD
$182.00 CAD
$182.00 CAD - $182.00 CAD
$182.00 CAD

Vendu en lots de : 1

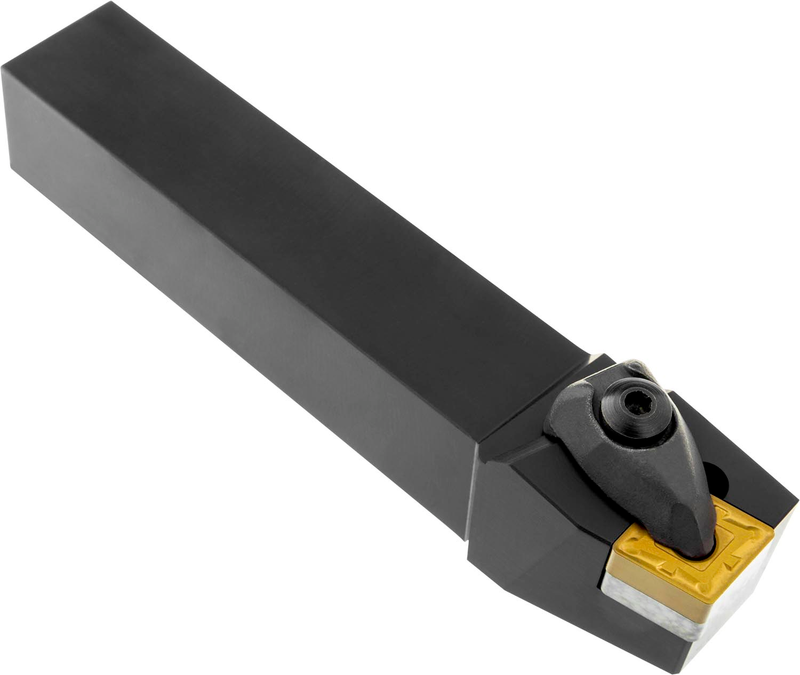

Outil de tournage à double bride pour plaquette négative en losange 80° avec un diamètre de cercle inscrit de 15,575mm, 6,35mm d'épaisseur (désignation ISO CN.. 1606..), coupe latérale à gauche 75° avec queue droite, 32mm de hauteur d'outil x 25mm de largeur x 170mm de long pour le chanfreinage, le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCBNL 3225 P 16
Product Number7028401
Product FamilyDCBN(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028401
EAN3603603105065
File Type Download

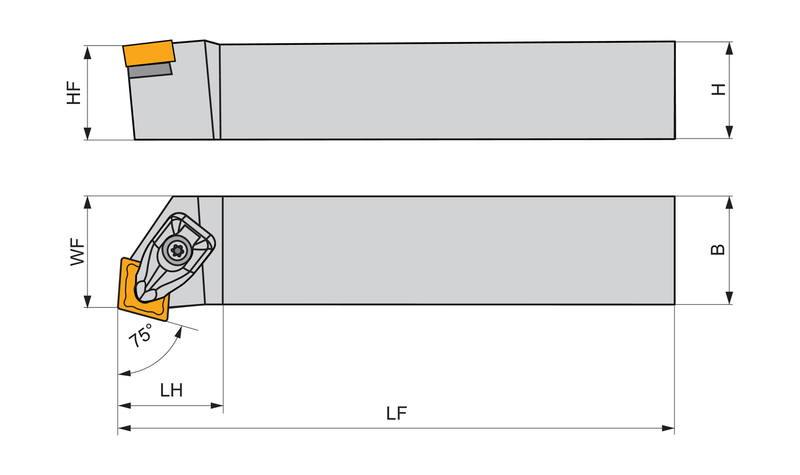

DCBNL 3225 P 16 — Line Drawing PDF Download
