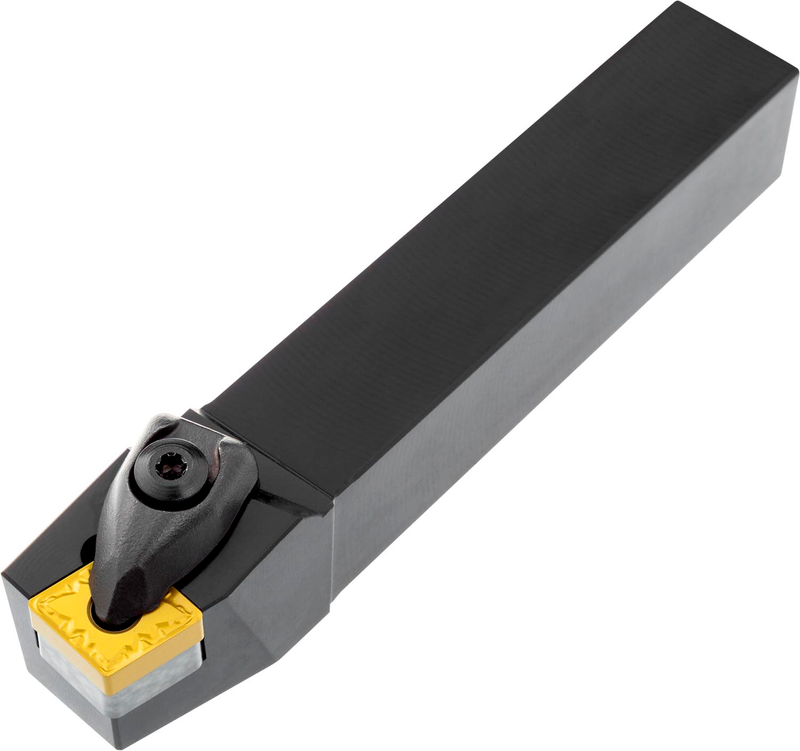

DCBNR 3225 P 12
DCBNR 3225 P 12

DCBNR 3225 P 12

UGC DOR7028407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$182.00 CAD - $182.00 CAD
$182.00 CAD
$182.00 CAD - $182.00 CAD
$182.00 CAD

Vendu en lots de : 1

Outil de tournage à double bride pour plaquette négative de 80° en forme de losange, avec un diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO CN.. 1204.. ), coupe à droite de 75° avec queue droite, hauteur d'outil de 32 mm x largeur de 25 mm x longueur de 170 mm pour le chanfreinage, le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCBNR 3225 P 12
Product Number7028407
Product FamilyDCBN(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028407
EAN3603603105126
File Type Download

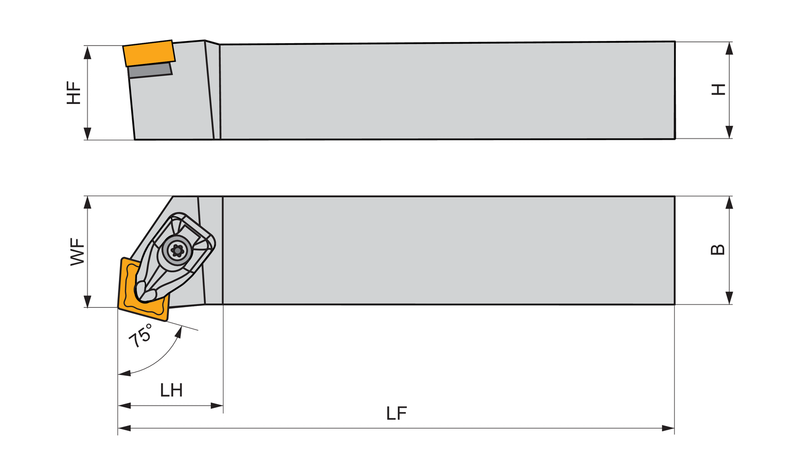

DCBNR 3225 P 12 — Line Drawing PDF Download
