DCLNL 4040 S 19
DCLNL 4040 S 19

DCLNL 4040 S 19

UGC DOR7028421
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.00 CAD - $296.00 CAD
$296.00 CAD
$296.00 CAD - $296.00 CAD
$296.00 CAD

Vendu en lots de : 1

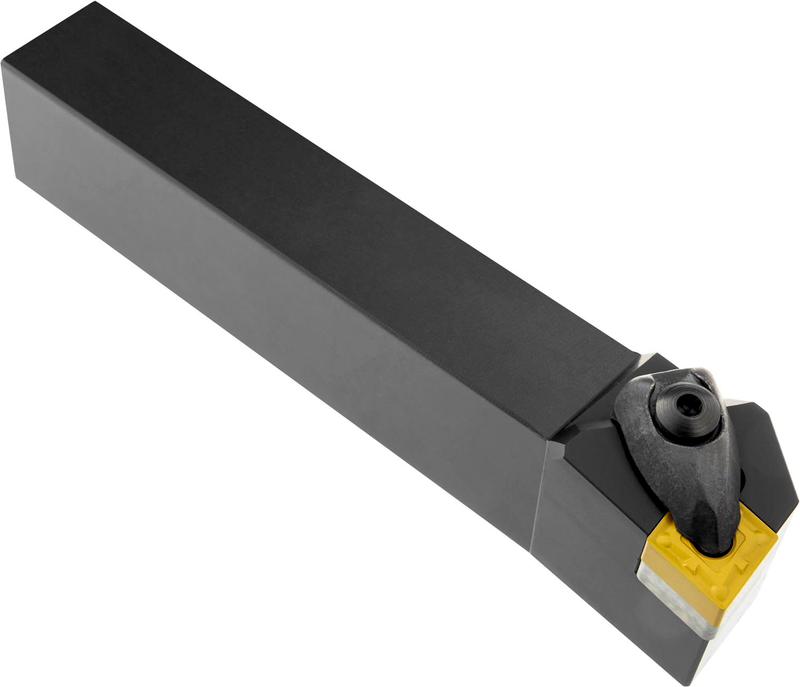

Outil de tournage à double bride pour plaquette négative en losange 80° avec un diamètre de cercle inscrit de 19,05mm, épaisseur de 6,35mm (désignation ISO CN.. 1906.. ), coupe latérale et frontale gauche de 95° avec corps déporté, hauteur d'outil de 40mm x largeur de 40mm x 250mm de long pour tournage conique, surfaçage avec et sans épaulement et chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCLNL 4040 S 19
Product Number7028421
Product FamilyDCLN(RL) EXT

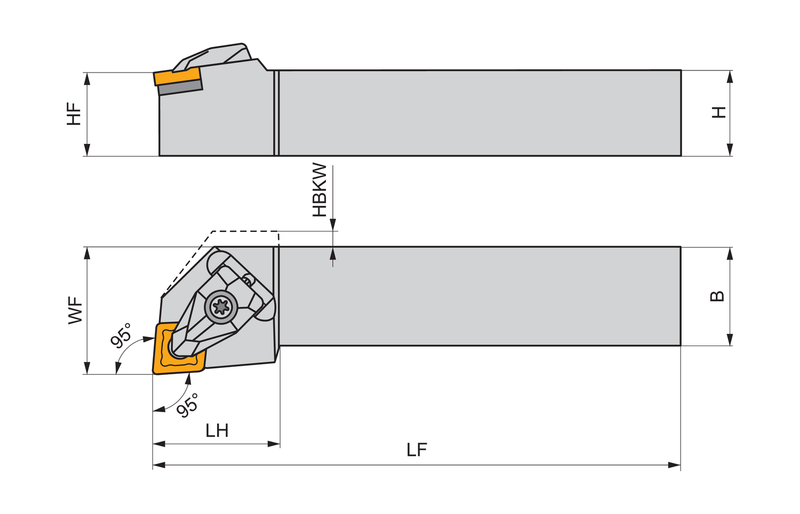

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028421
EAN3603603105263
File Type Download
DCLNL 4040 S 19 — 3D Model STP Download
DCLNL 4040 S 19 — Line Drawing PDF Download
