DSBNL 2525 H 15
DSBNL 2525 H 15

DSBNL 2525 H 15

UGC DOR7028430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

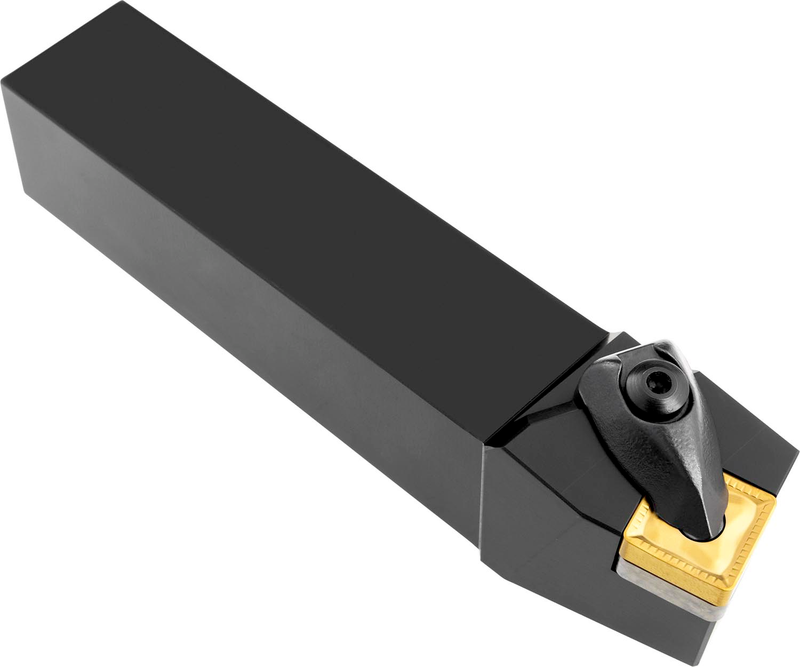

Outil de tournage à double bride pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO SN.. 1506.. ), coupe latérale à 75° à gauche avec queue droite, hauteur d'outil de 25mm x 25mm de largeur x 150mm de long pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSBNL 2525 M 15
Product Number7028430
Product FamilyDSBN(RL) EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028430
EAN3603603105355
File Type Download

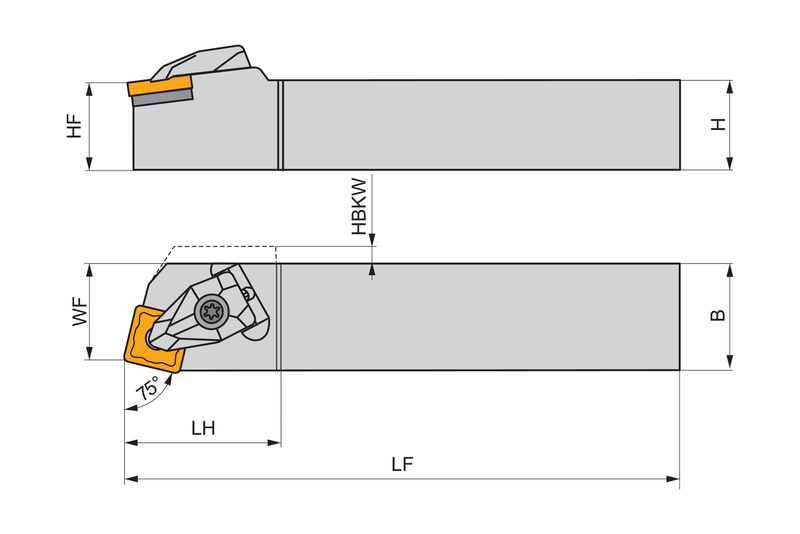

DSBNL 2525 H 15 — Line Drawing PDF Download
