DSBNL 4040 S 19
DSBNL 4040 S 19

DSBNL 4040 S 19

UGC DOR7028431
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.00 CAD - $296.00 CAD
$296.00 CAD
$296.00 CAD - $296.00 CAD
$296.00 CAD

Vendu en lots de : 1

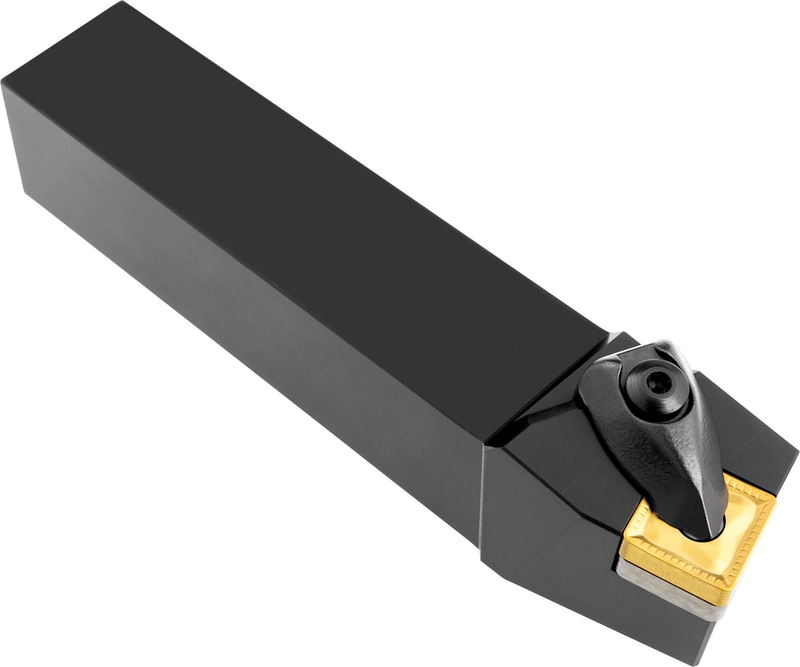

Outil de tournage à double bride pour plaquette négative carrée d'un diamètre de cercle inscrit de 19,05 mm, de 6,35 mm d'épaisseur (désignation ISO SN.. 1906..), coupe latérale à gauche à 75° avec queue droite, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSBNL 4040 S 19
Product Number7028431
Product FamilyDSBN(RL) EXT

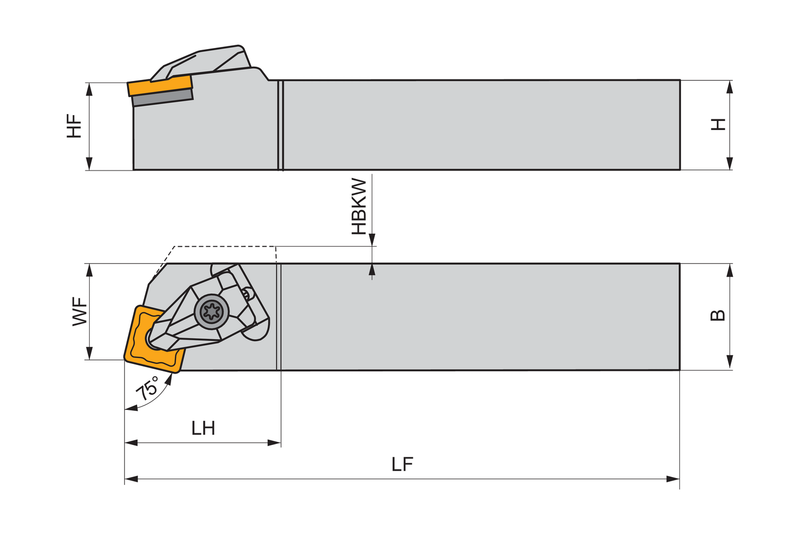

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028431
EAN3603603105362
File Type Download
DSBNL 4040 S 19 — 3D Model STP Download
DSBNL 4040 S 19 — Line Drawing PDF Download
