DSDNN 4040 S 25
DSDNN 4040 S 25

DSDNN 4040 S 25

UGC DOR7028438
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.00 CAD - $296.00 CAD
$296.00 CAD
$296.00 CAD - $296.00 CAD
$296.00 CAD

Vendu en lots de : 1

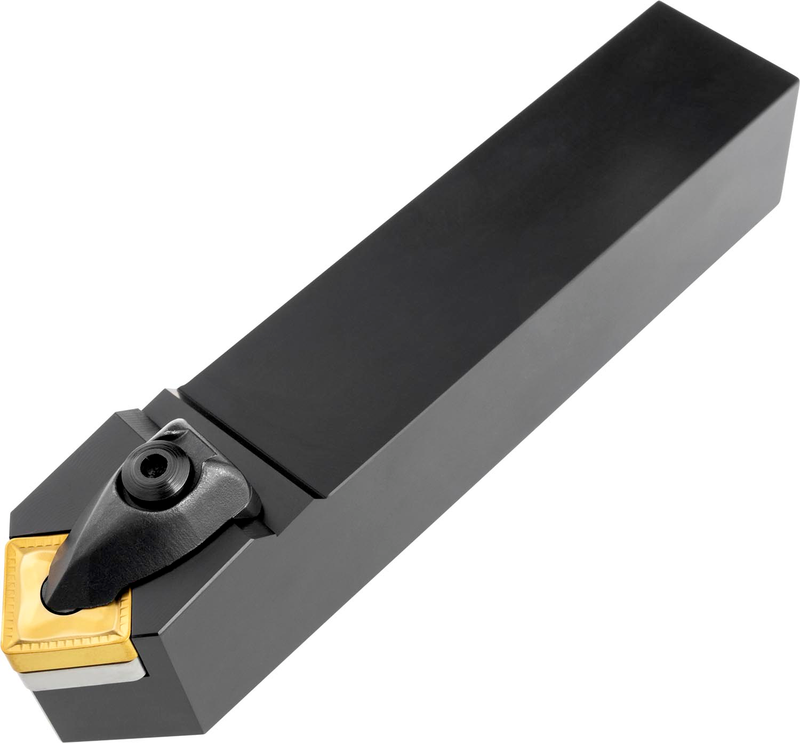

Outil de tournage à double bride pour plaquette négative carrée avec un diamètre de cercle inscrit de 25,4 mm, 7,94 mm d'épaisseur (désignation ISO SN.. 2507.. ), coupe neutre, coupe latérale à 45° avec queue droite, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSDNN 4040 S 25
Product Number7028438
Product FamilyDSDNN EXT
Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number7028438
EAN3603603105430
File Type Download
DSDNN 4040 S 25 — 3D Model STP Download

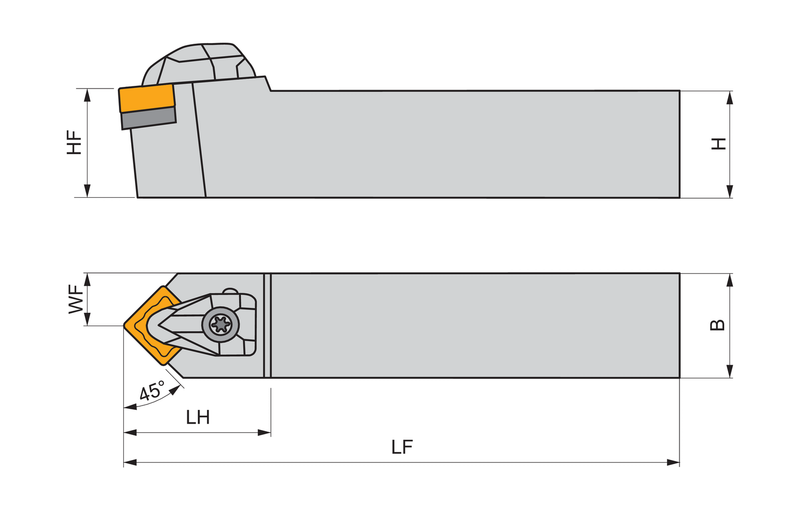

DSDNN 4040 S 25 — Line Drawing PDF Download
