DSKNL 2525 M 12
DSKNL 2525 M 12

DSKNL 2525 M 12

UGC DOR7028439
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

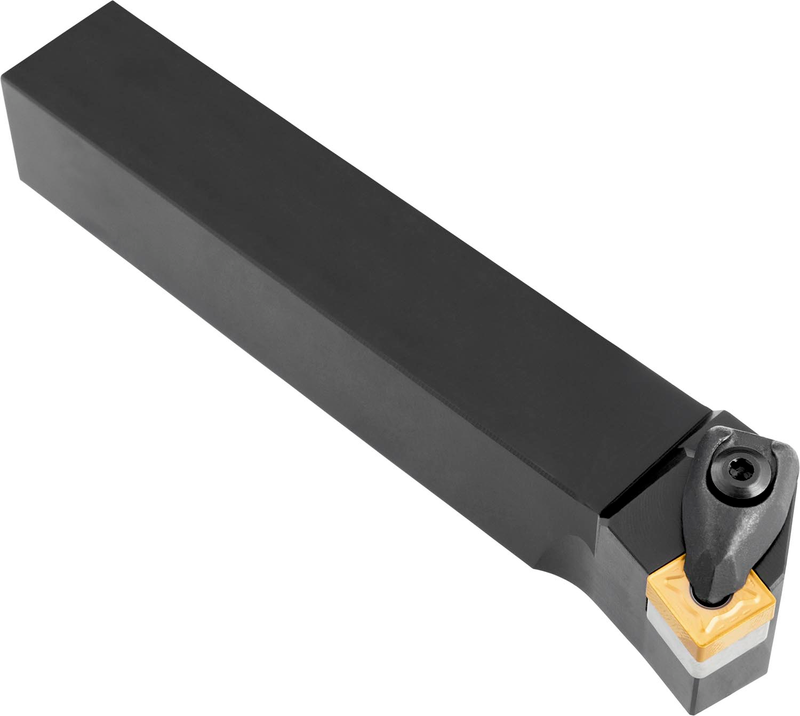

Outil de tournage à double bride pour plaquette négative carrée d'un diamètre de cercle inscrit de 12,7 mm, d'une épaisseur de 4,76 mm (désignation ISO SN... 1204...), à coupe frontale à 75° à gauche avec queue déportée, hauteur de l'outil 25 mm x largeur 25 mm x longueur 150 mm pour le dressage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSKNL 2525 M 12
Product Number7028439
Product FamilyDSKN(RL) EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028439
EAN3603603105447
File Type Download

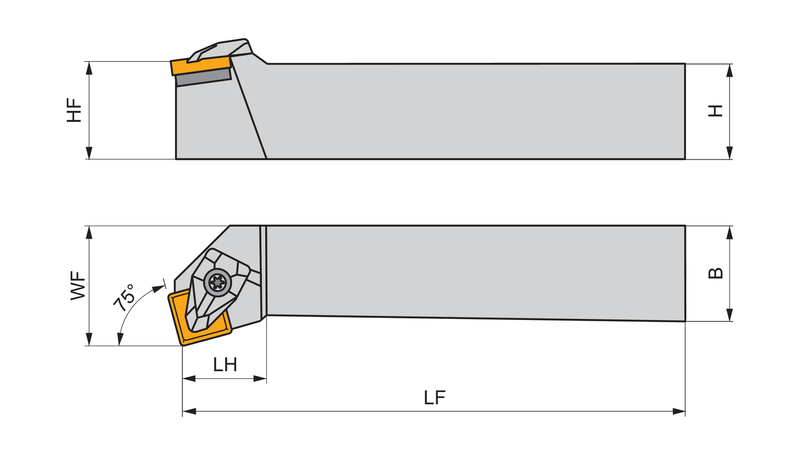

DSKNL 2525 M 12 — Line Drawing PDF Download
