DSKNL 3232 P 19
DSKNL 3232 P 19

DSKNL 3232 P 19

UGC DOR7028440
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

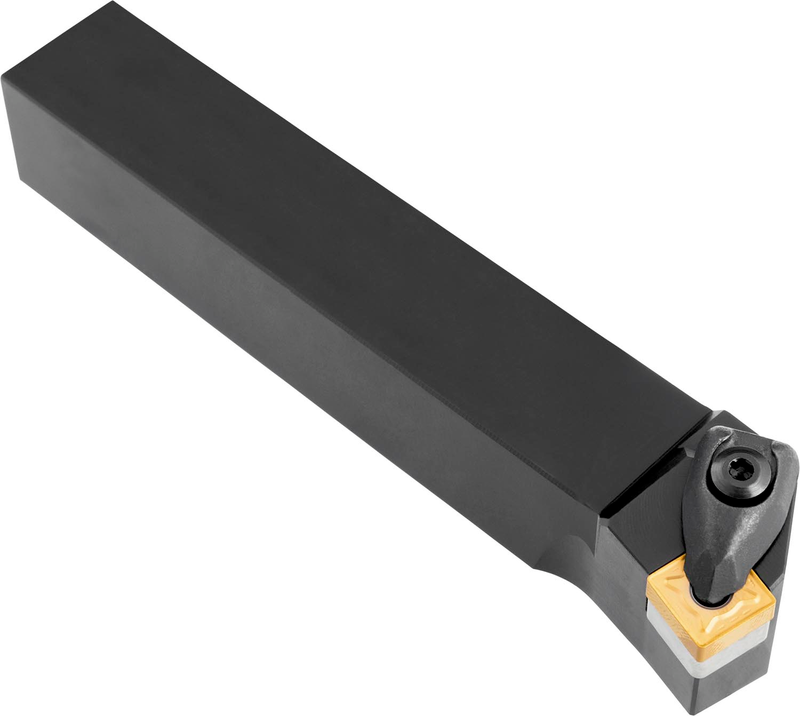

Outil de tournage à double bride pour plaquette carrée négative avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1906..), coupe à gauche à 75° avec queue déportée, hauteur d'outil de 32 mm x 32 mm de largeur x 170 mm de long pour tournage de face sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSKNL 3232 P 19
Product Number7028440
Product FamilyDSKN(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028440
EAN3603603105454
File Type Download

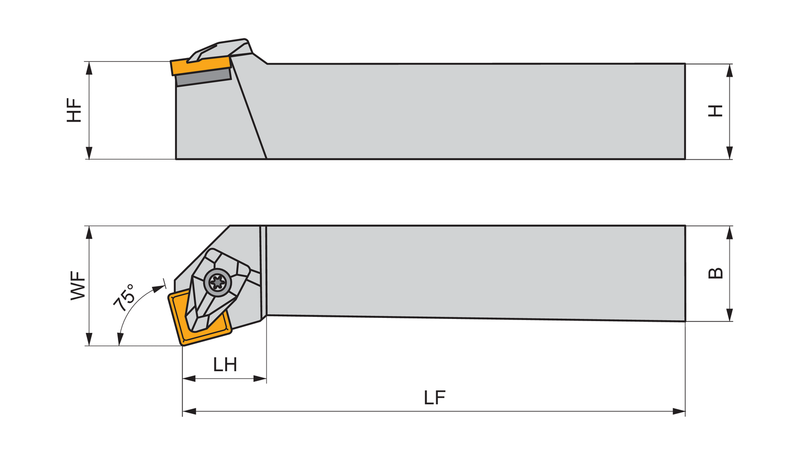

DSKNL 3232 P 19 — Line Drawing PDF Download
