DSSNL 2525 M 12
DSSNL 2525 M 12

DSSNL 2525 M 12

UGC DOR7028444
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

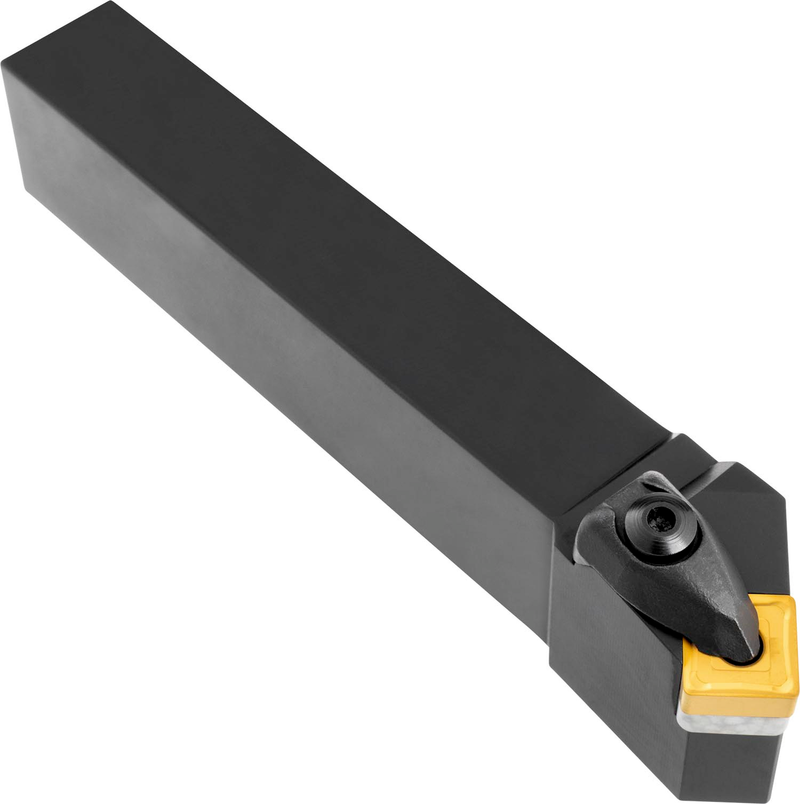

Outil de tournage à double bride pour plaquette négative carrée avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO SN.. 1204..), à coupe latérale gauche à 45° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x 150 mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 2525 M 12
Product Number7028444
Product FamilyDSSN(RL) EXT
Dimensions
Overall Length — in (OAL)6.232"
Overall Length — mm (OAL)158.3 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028444
EAN3603603105492
File Type Download

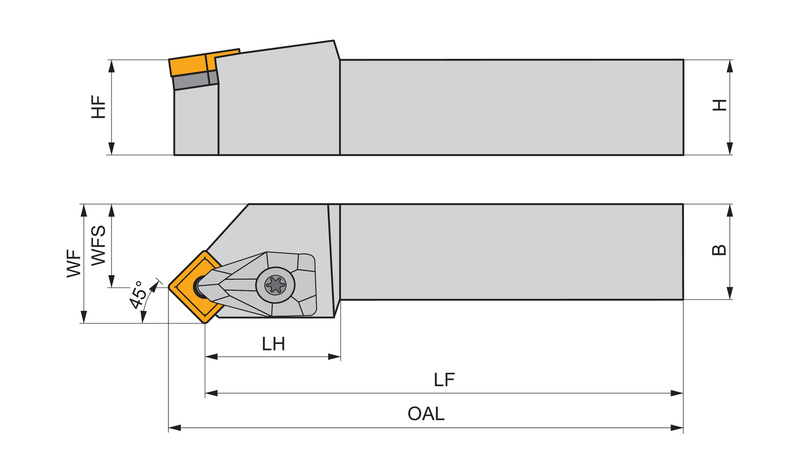

DSSNL 2525 M 12 — Line Drawing PDF Download
