DSSNL 2525 M 15
DSSNL 2525 M 15

DSSNL 2525 M 15

UGC DOR7028445
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

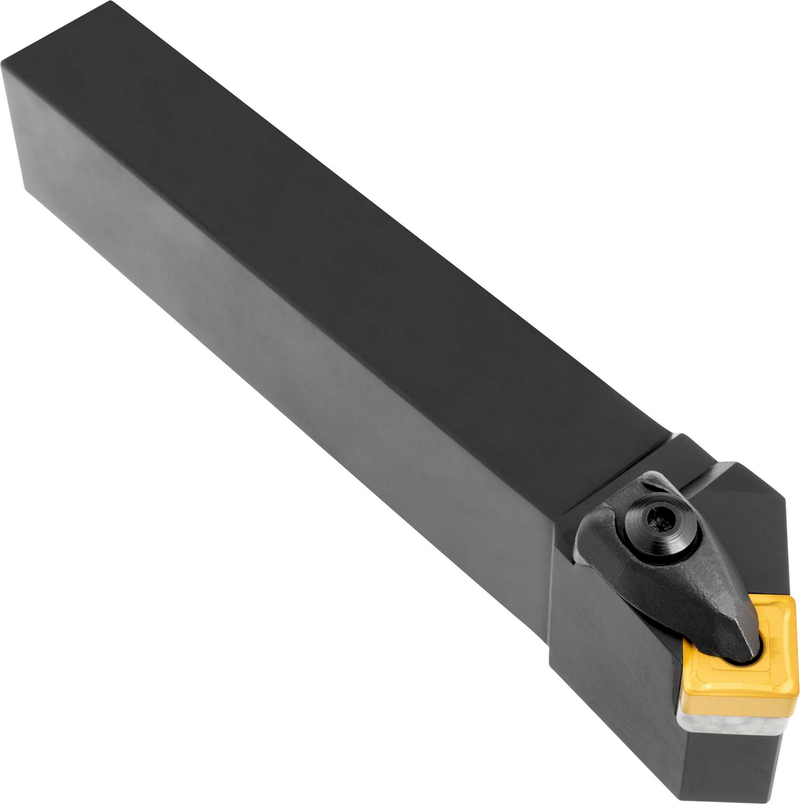

Outil de tournage à double bridage pour plaquette carrée négative de diamètre de cercle inscrit de 15,875 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1506..), à couper à gauche 45° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le tournage de face sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 2525 M 15
Product Number7028445
Product FamilyDSSN(RL) EXT

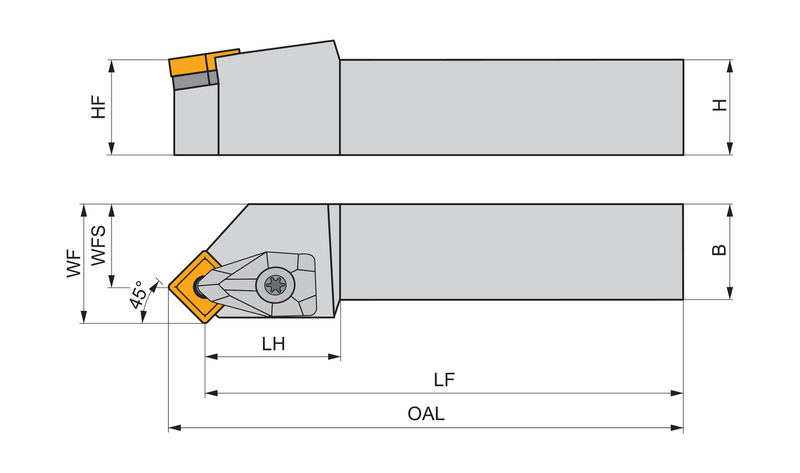

Dimensions
Overall Length — in (OAL)6.307"
Overall Length — mm (OAL)160.2 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028445
EAN3603603105508
File Type Download
DSSNL 2525 M 15 — Line Drawing PDF Download
