DSSNL 3225 P 15
DSSNL 3225 P 15

DSSNL 3225 P 15

UGC DOR7028446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$182.00 CAD - $182.00 CAD
$182.00 CAD
$182.00 CAD - $182.00 CAD
$182.00 CAD

Vendu en lots de : 1

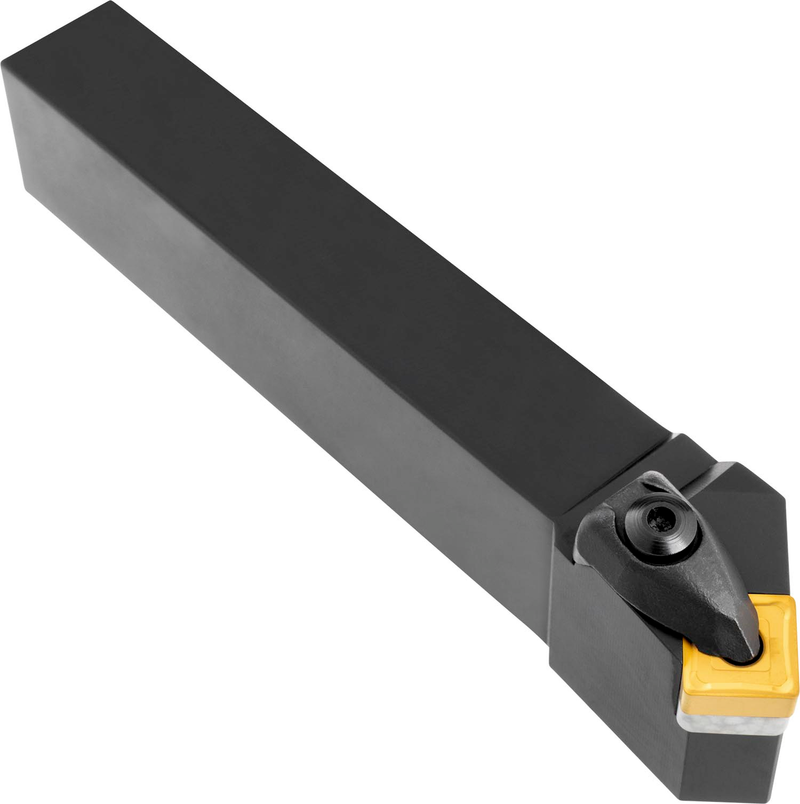

Outil de tournage à double bridage pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1506..), coupe à gauche 45° avec corps déporté, hauteur d'outil 32 mm x largeur 25 mm x longueur 170 mm pour le chanfreinage, le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 3225 P 15
Product Number7028446
Product FamilyDSSN(RL) EXT

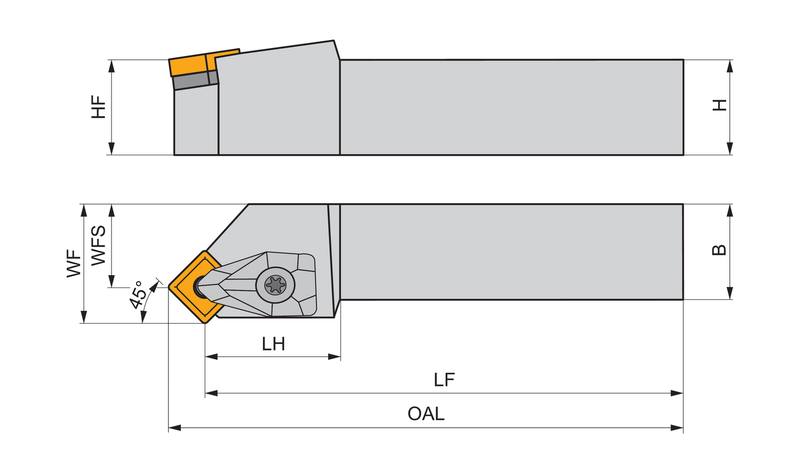

Dimensions
Overall Length — in (OAL)7.094"
Overall Length — mm (OAL)180.2 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028446
EAN3603603105515
File Type Download
DSSNL 3225 P 15 — 3D Model STP Download
DSSNL 3225 P 15 — Line Drawing PDF Download
