DSSNL 3232 P 19
DSSNL 3232 P 19

DSSNL 3232 P 19

UGC DOR7028447
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

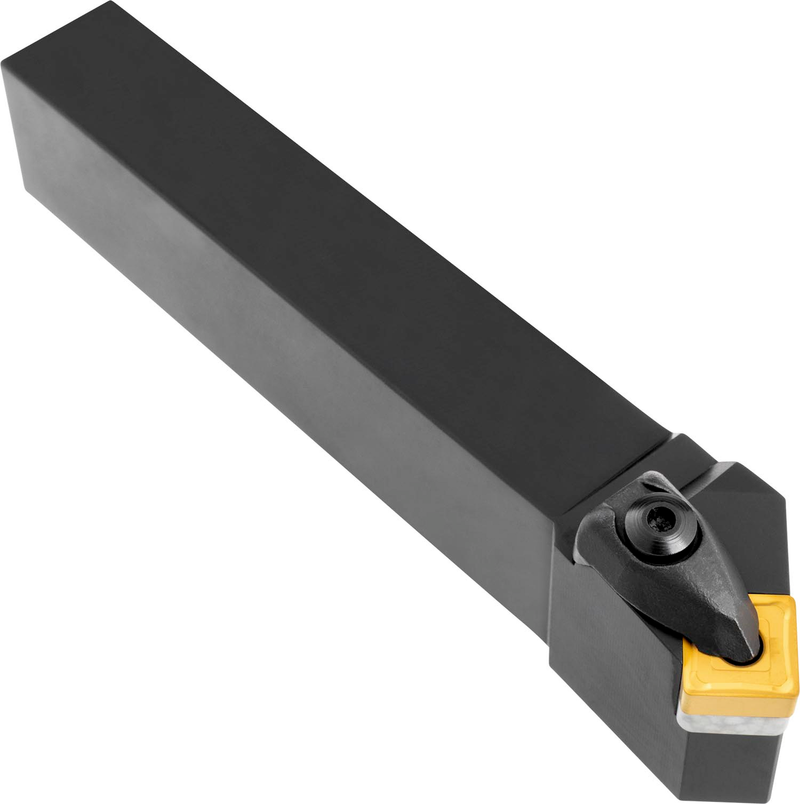

Outil de tournage à double bridage pour plaquette carrée négative avec un diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1906..), coupe latérale à gauche de 45° avec corps déporté, hauteur d'outil de 32 mm x largeur de 32 mm x 170 mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 3232 P 19
Product Number7028447
Product FamilyDSSN(RL) EXT

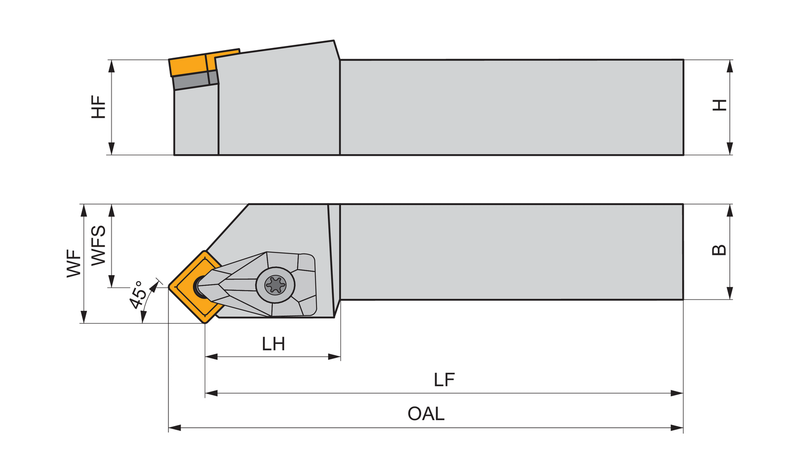

Dimensions
Overall Length — in (OAL)7.185"
Overall Length — mm (OAL)182.5 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028447
EAN3603603105522
File Type Download
DSSNL 3232 P 19 — Line Drawing PDF Download
