DSSNL 4040 S 19
DSSNL 4040 S 19

DSSNL 4040 S 19

UGC DOR7028448
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$296.00 CAD - $296.00 CAD
$296.00 CAD
$296.00 CAD - $296.00 CAD
$296.00 CAD

Vendu en lots de : 1

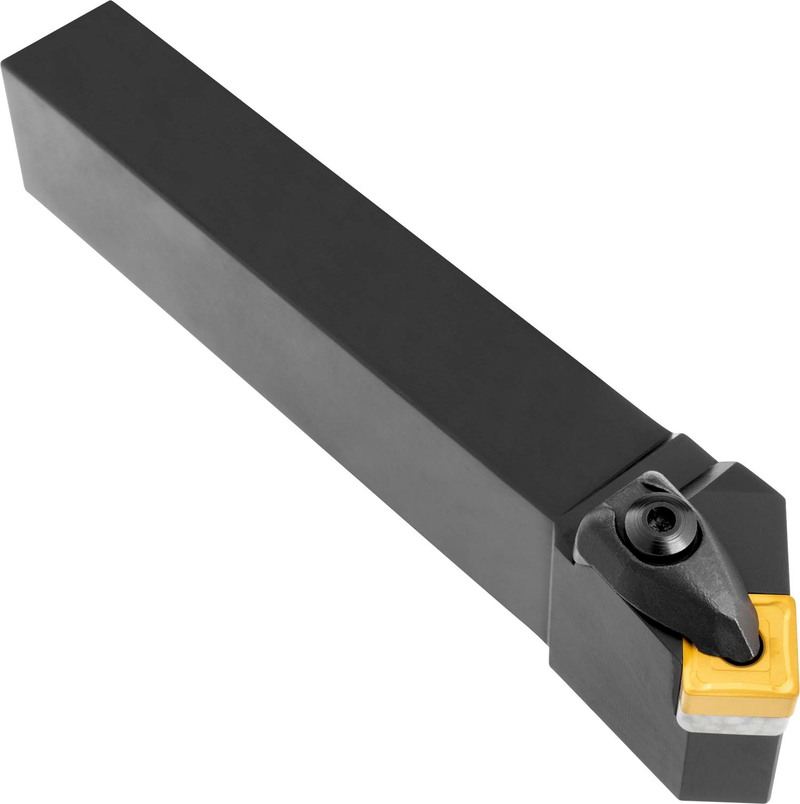

Outil de chariotage à double serrage pour une plaquette carrée négative d'un diamètre de cercle inscrit de 19,05 mm et de 6,35 mm d'épaisseur (désignation ISO SN... 1906...), coupe à gauche à 45° avec corps déporté, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le chanfreinage, le chariotage conique, le chariotage de copiage unidirectionnel et multidirectionnel, le chariotage frontal sans épaulement et le chariotage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 4040 S 19
Product Number7028448
Product FamilyDSSN(RL) EXT

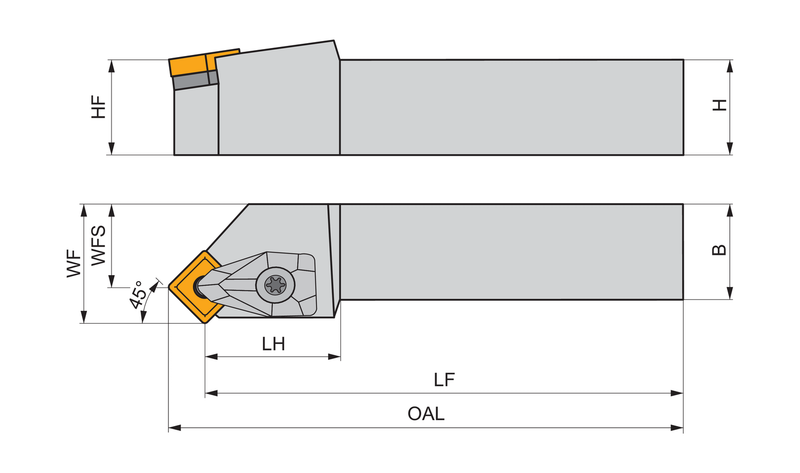

Dimensions
Overall Length — in (OAL)10.335"
Overall Length — mm (OAL)262.5 mm
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028448
EAN3603603105539
File Type Download
DSSNL 4040 S 19 — 3D Model STP Download
DSSNL 4040 S 19 — Line Drawing PDF Download
