DSSNR 2525 M 15
DSSNR 2525 M 15

DSSNR 2525 M 15

UGC DOR7028451
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

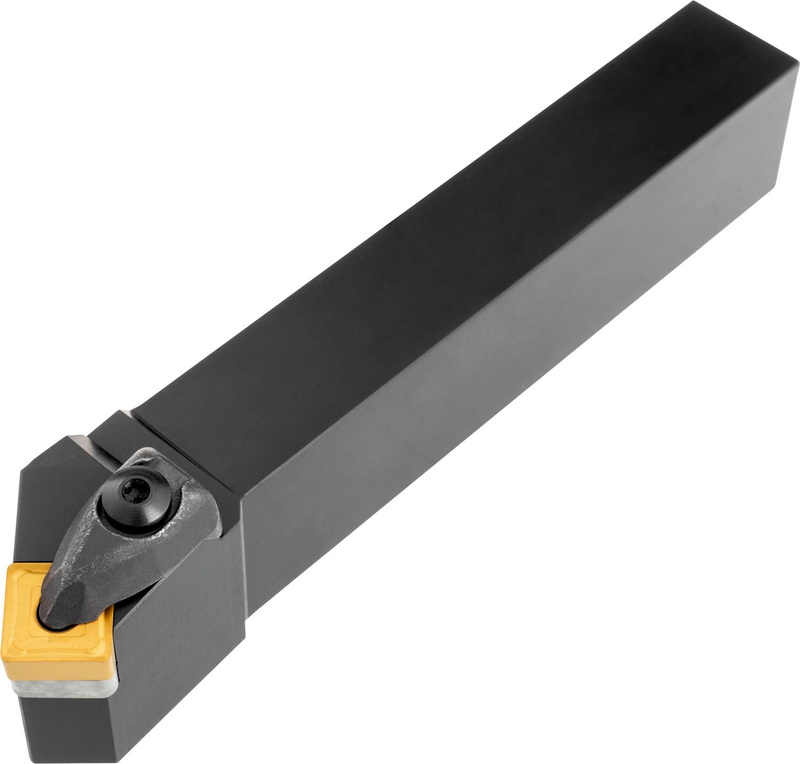

Outil de tournage à double bridage pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875 mm, 6,35 mm d'épaisseur (désignation ISO SN.. 1506.. ), coupe latérale droite à 45° avec corps déporté, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNR 2525 M 15
Product Number7028451
Product FamilyDSSN(RL) EXT

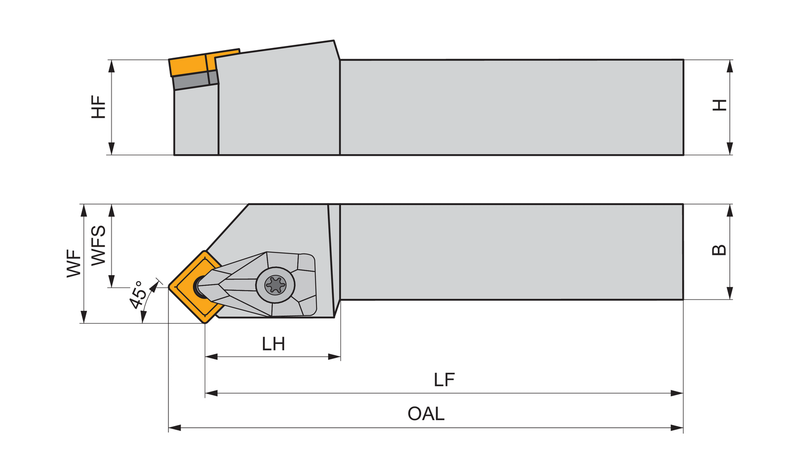

Dimensions
Overall Length — in (OAL)6.307"
Overall Length — mm (OAL)160.2 mm
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028451
EAN3603603105560
File Type Download
DSSNR 2525 M 15 — Line Drawing PDF Download
