DSSNR 3232 P 19
DSSNR 3232 P 19

DSSNR 3232 P 19

UGC DOR7028453
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

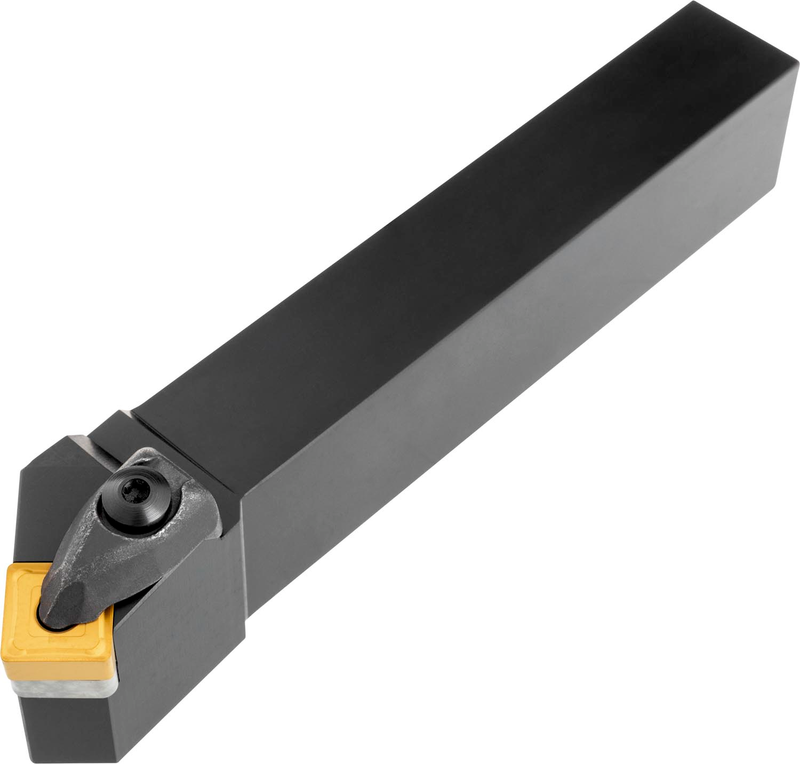

Outil de tournage à double bride pour plaquette carrée négative d'un diamètre de cercle inscrit de 19,05 mm, de 6,35 mm d'épaisseur (désignation ISO SN.. 1906..), coupe latérale à 45° à droite avec corps déporté, hauteur d'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNR 3232 P 19
Product Number7028453
Product FamilyDSSN(RL) EXT

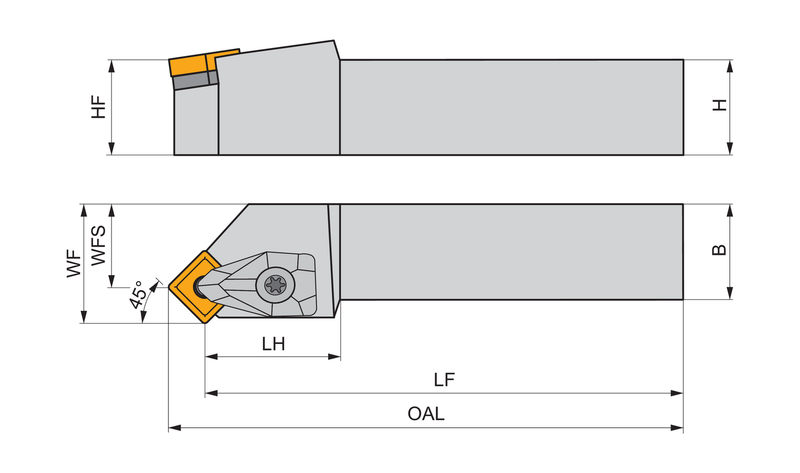

Dimensions
Overall Length — in (OAL)7.185"
Overall Length — mm (OAL)182.5 mm
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028453
EAN3603603105584
File Type Download
DSSNR 3232 P 19 — Line Drawing PDF Download
