DTFNL 2020 K 16
DTFNL 2020 K 16

DTFNL 2020 K 16

UGC DOR7028455
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

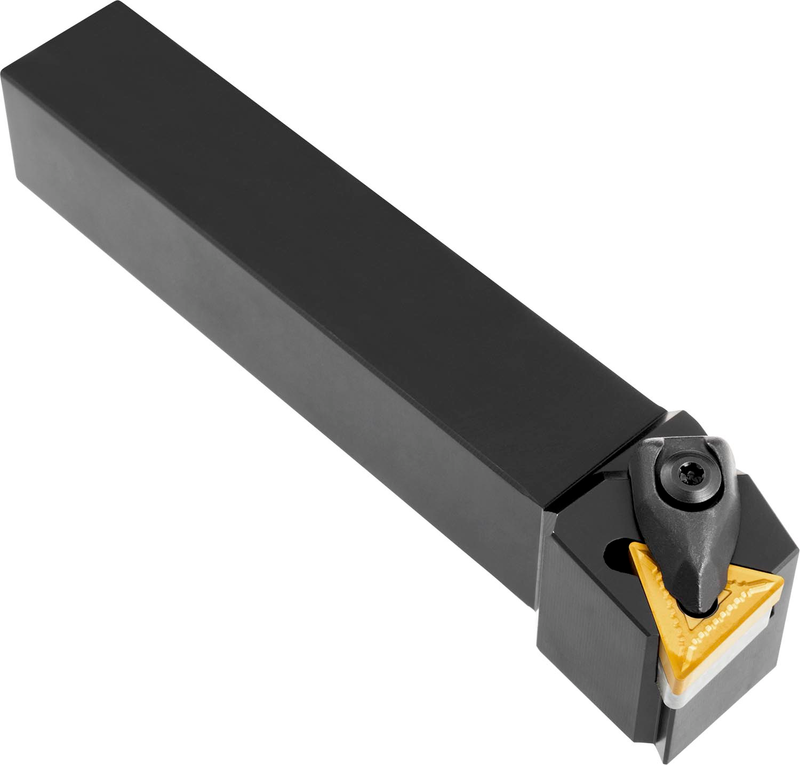

Outil de chariotage à double serrage pour plaquette triangulaire négative avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO TN.. 1604.. ), coupe à gauche 90° avec queue déportée, hauteur d'outil 20mm x largeur 20mm x longueur 125mm pour charioter sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTFNL 2020 K 16
Product Number7028455
Product FamilyDTFN(RL) EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028455
EAN3603603105607
File Type Download

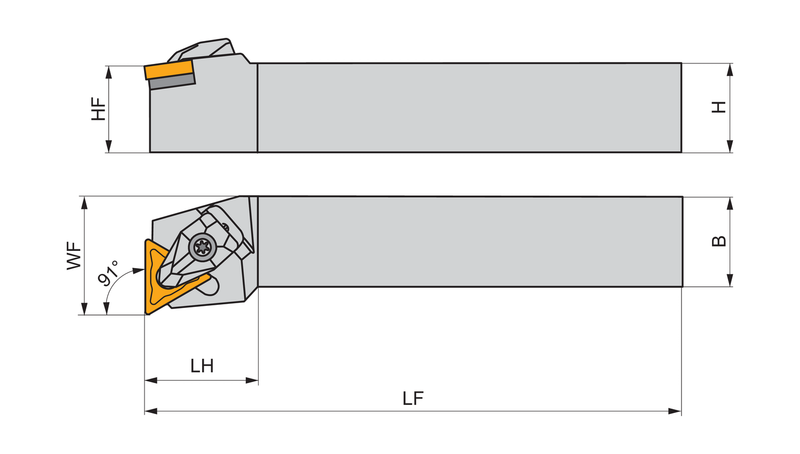

DTFNL 2020 K 16 — Line Drawing PDF Download
