DTFNR 2525 M 22
DTFNR 2525 M 22

DTFNR 2525 M 22

UGC DOR7028460
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

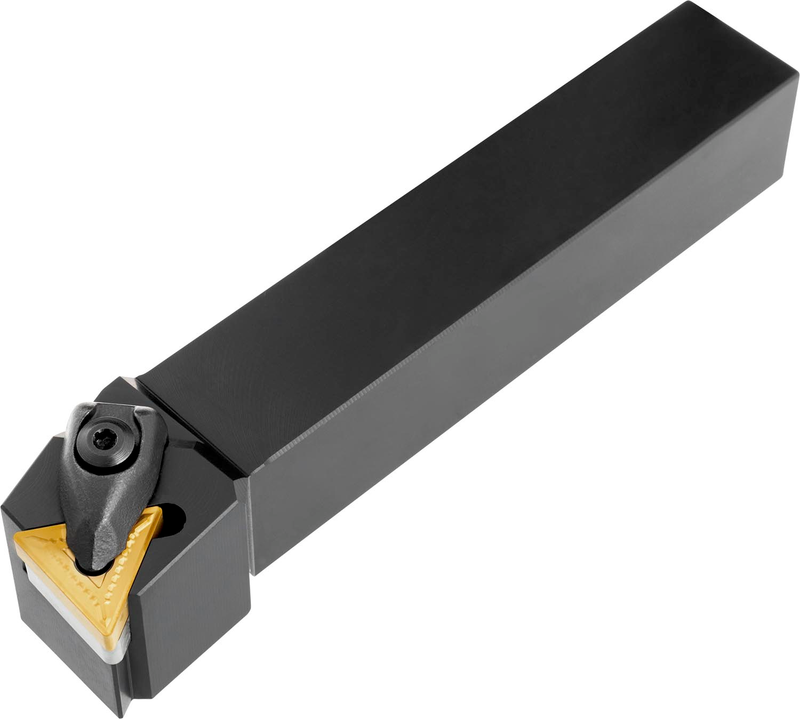

Porte-outil à double serrage pour plaquette triangulaire négative avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO TN.. 2204.. ), coupe à droite à 90° avec queue déportée, hauteur d'outil de 25 mm x largeur de 25 mm x 150 mm de long pour le dressage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTFNR 2525 M 22
Product Number7028460
Product FamilyDTFN(RL) EXT

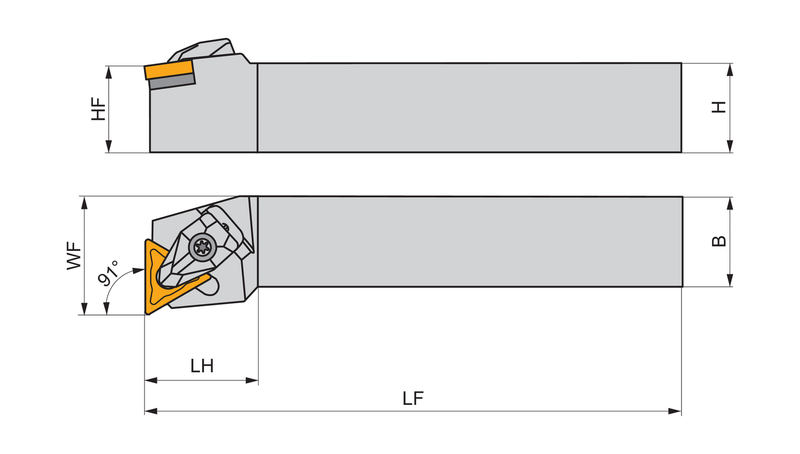

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028460
EAN3603603105652
File Type Download
DTFNR 2525 M 22 — Line Drawing PDF Download
