DTGNR 3232 P 22
DTGNR 3232 P 22
DTGNR 3232 P 22

DTGNR 3232 P 22

UGC DOR7028462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.00 CAD - $221.00 CAD
$221.00 CAD
$221.00 CAD - $221.00 CAD
$221.00 CAD

Vendu en lots de : 1

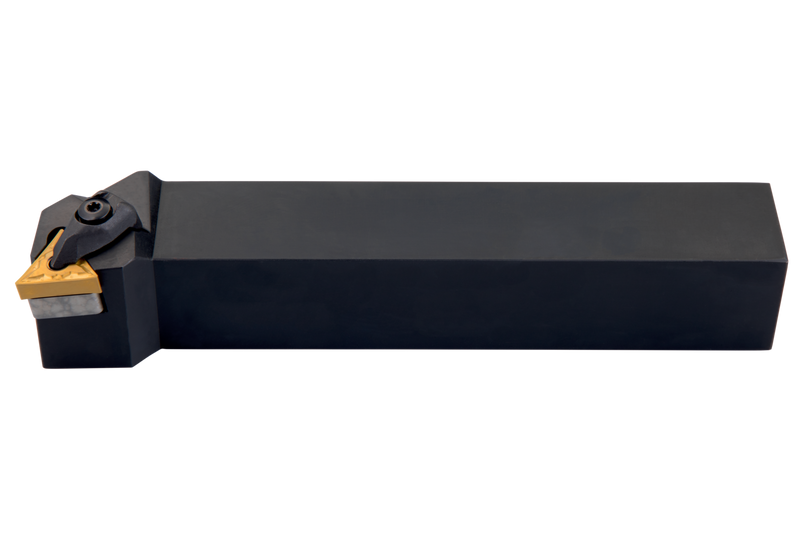

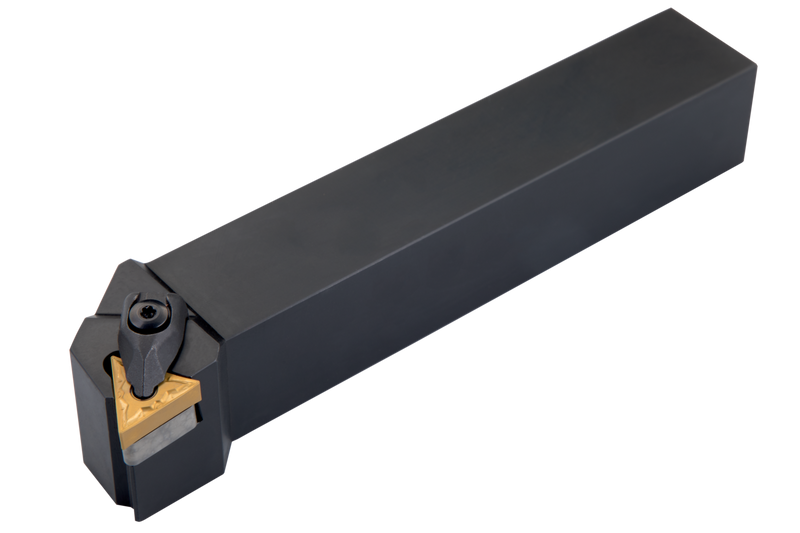

Porte-outil à double serrage pour plaquette négative triangulaire d'un diamètre de cercle inscrit de 12,7 mm, épaisseur de 4,76 mm (désignation ISO TN.. 2204.. ), coupe à droite à 90° avec corps déporté, hauteur d'outil de 32 mm x largeur de 32 mm x longueur de 170 mm pour tournage conique et tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTGNR 3232 P 22
Product Number7028462
Product FamilyDTGN(AR) EXT

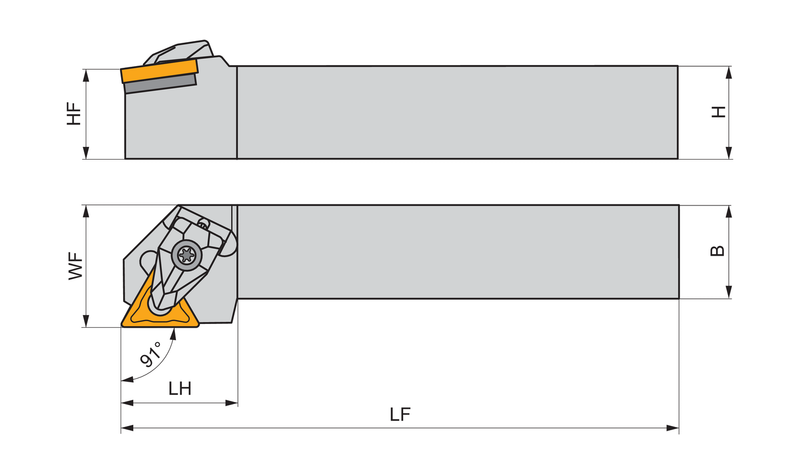

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028462
EAN3603603105676
File Type Download
DTGNR 3232 P 22 — Line Drawing PDF Download
