DVJNL 2020 K 16
DVJNL 2020 K 16

DVJNL 2020 K 16

UGC DOR7028463
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$190.00 CAD - $190.00 CAD
$190.00 CAD
$190.00 CAD - $190.00 CAD
$190.00 CAD

Vendu en lots de : 1

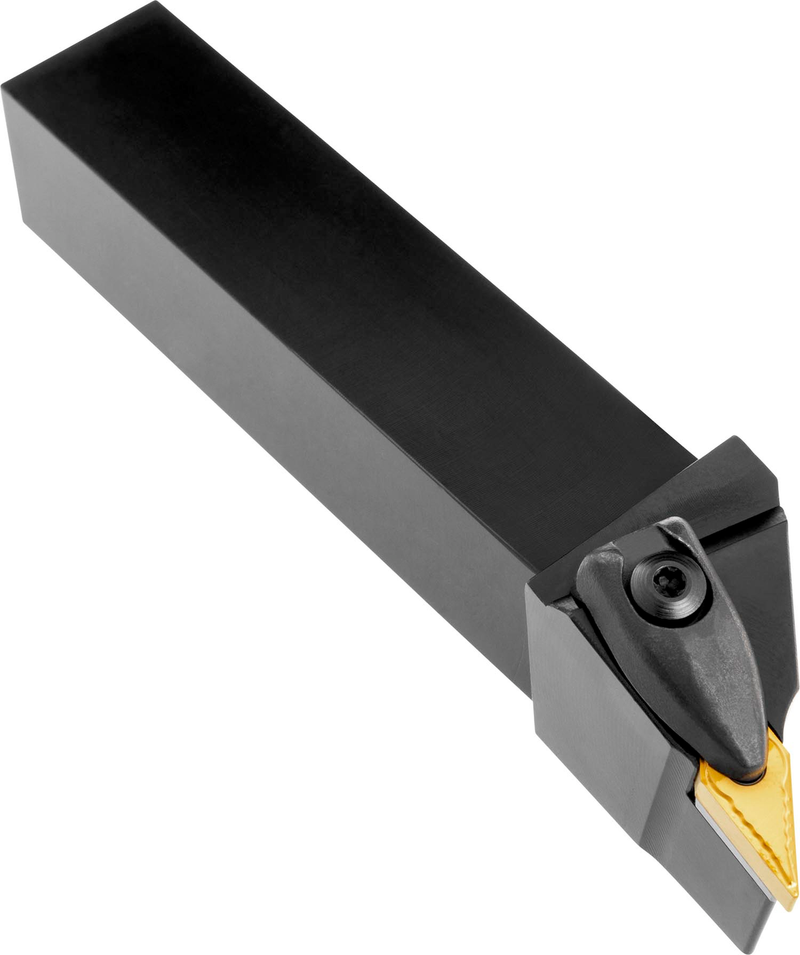

Outil de tournage à double bridage pour plaquette négative en losange 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VN.. 1604.. ), coupe à gauche 93° avec un corps déporté, hauteur d'outil 20mm x largeur 20mm x longueur 125mm pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNL 2020 K 16
Product Number7028463
Product FamilyDVJN(RL) EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028463
EAN3603603105683
File Type Download

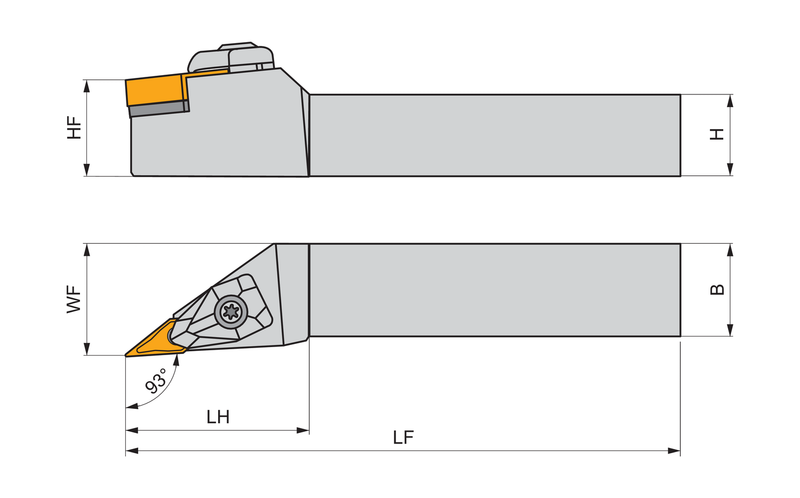

DVJNL 2020 K 16 — Line Drawing PDF Download
