DVJNR 2020 K 16
DVJNR 2020 K 16

DVJNR 2020 K 16

UGC DOR7028466
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$190.00 CAD - $190.00 CAD
$190.00 CAD
$190.00 CAD - $190.00 CAD
$190.00 CAD

Vendu en lots de : 1

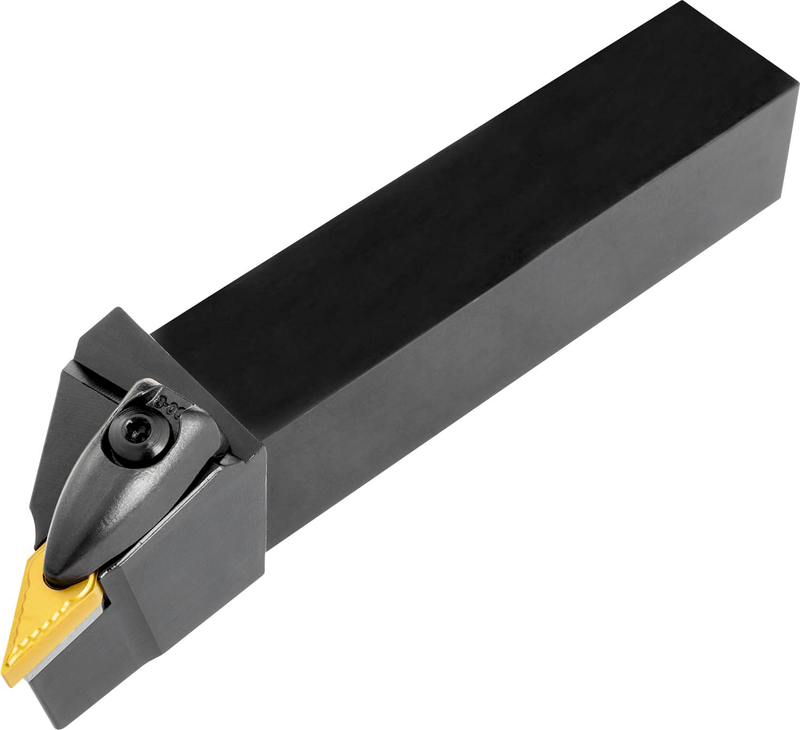

Outil de chariotage à double serrage pour plaquette négative en losange 35° avec cercle inscrit de 9,525mm de diamètre, 4,76mm d'épaisseur (désignation ISO VN.. 1604.. ), coupe à droite 93° avec corps déporté, hauteur d'outil 20mm x largeur 20mm x longueur 125mm pour chanfreinage, chariotage conique, chariotage de reproduction unidirectionnel et multidirectionnel et chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNR 2020 K 16
Product Number7028466
Product FamilyDVJN(RL) EXT
Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028466
EAN3603603105713
File Type Download

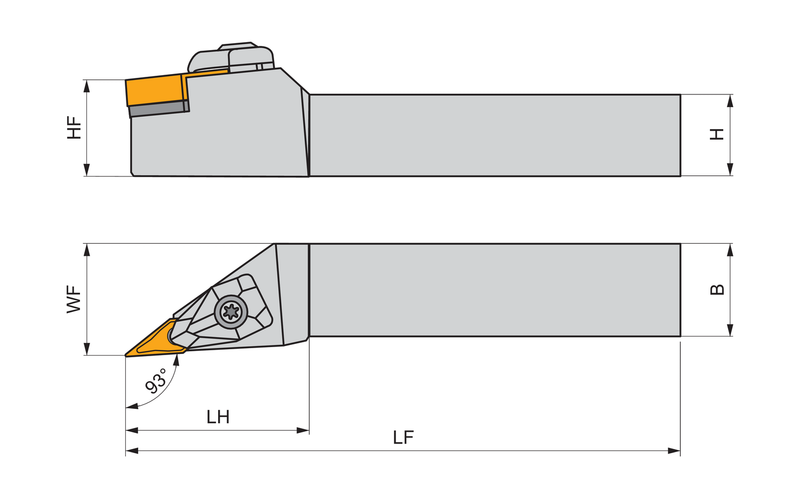

DVJNR 2020 K 16 — Line Drawing PDF Download
