DVJNR 2525 M 16
DVJNR 2525 M 16

DVJNR 2525 M 16

UGC DOR7028467
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

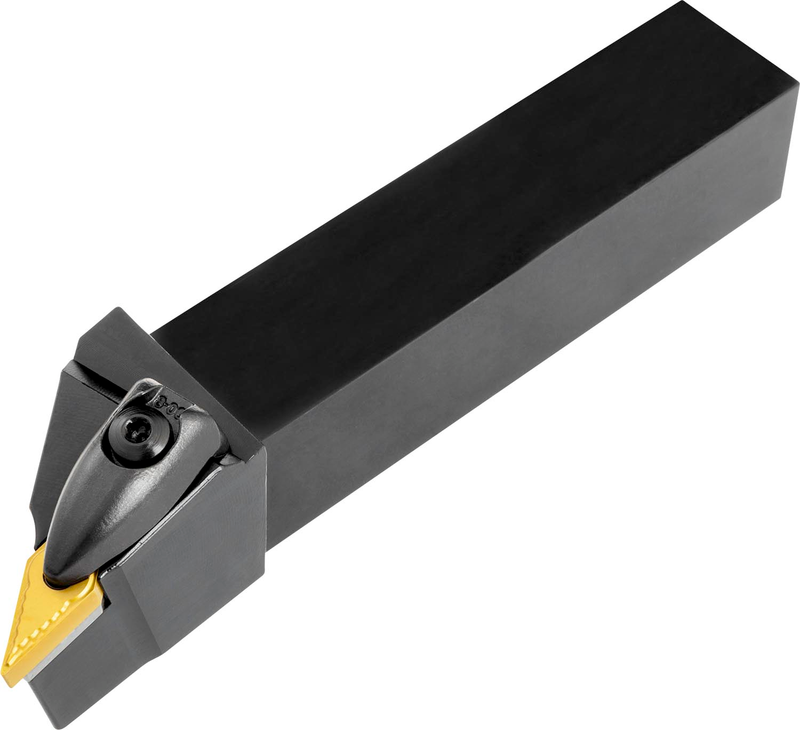

Outil de tournage à double bridage pour plaquette négative en losange 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VN.. 1604.. ), coupe à droite à 93° avec un corps déporté, hauteur d'outil de 25mm x largeur de 25mm x 150mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNR 2525 M 16
Product Number7028467
Product FamilyDVJN(RL) EXT

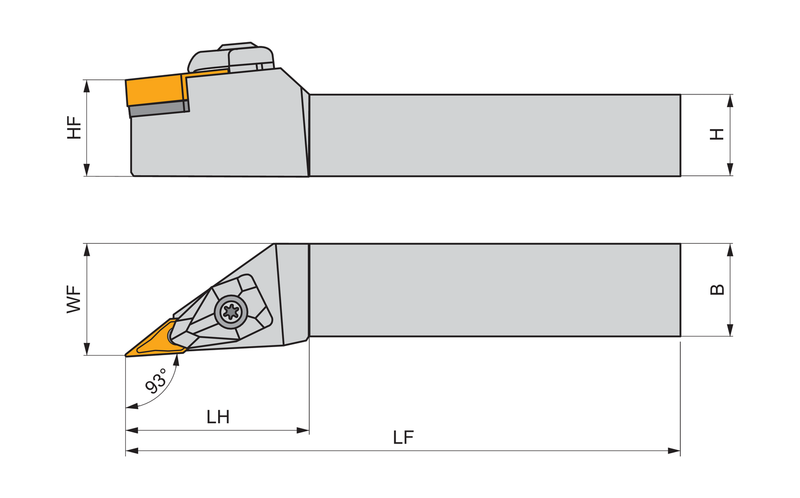

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7028467
EAN3603603105720
File Type Download
DVJNR 2525 M 16 — Line Drawing PDF Download
