DVPNL 2525 M 16
DVPNL 2525 M 16

DVPNL 2525 M 16

UGC DOR7028469
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

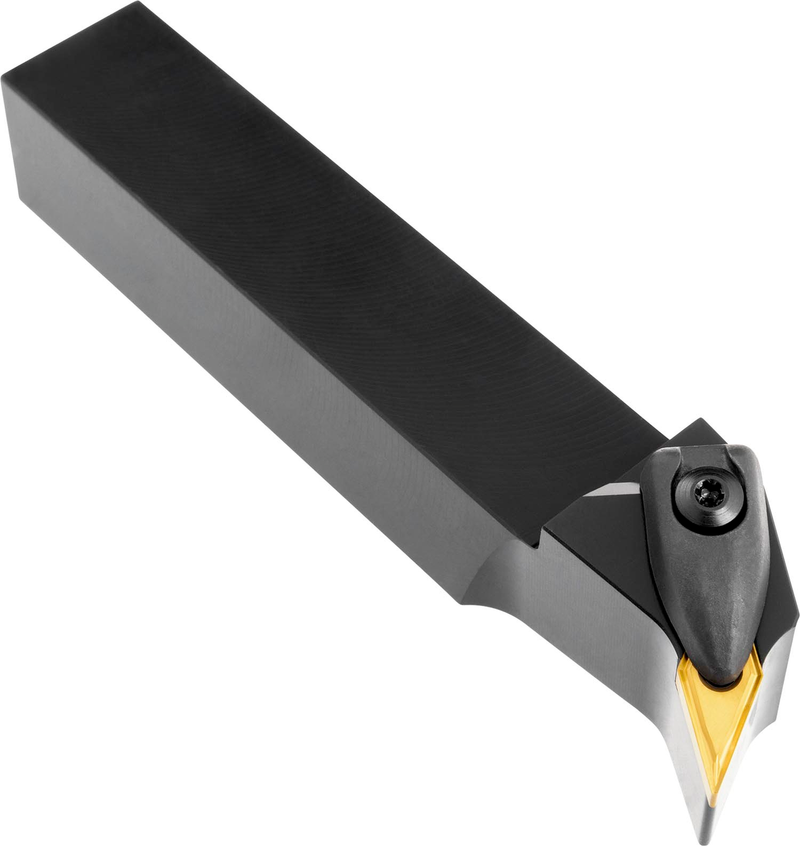

Outil de chariotage à double serrage pour plaquette négative en forme de losange à 35° avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO VN.. 1604.. ), à gauche 62,5°, coupe latérale gauche et droite, hauteur d'outil de 25mm x 25mm de largeur x 150mm de long pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVPNL 2525 M 16
Product Number7028469
Product FamilyDVPN(RL) EXT

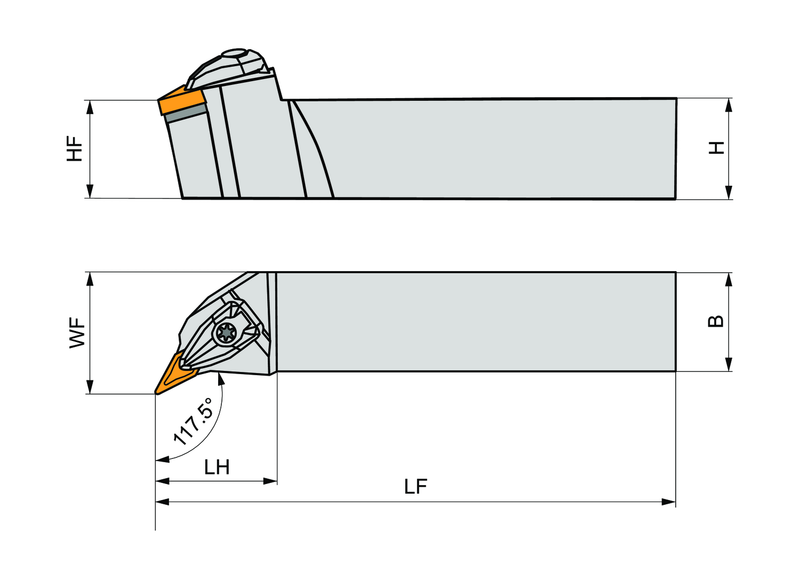

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number7028469
EAN3603603105744
File Type Download
DVPNL 2525 M 16 — Line Drawing PDF Download
