A25T-DDUNR 11
A25T-DDUNR 11

A25T-DDUNR 11

UGC DOR7028480
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

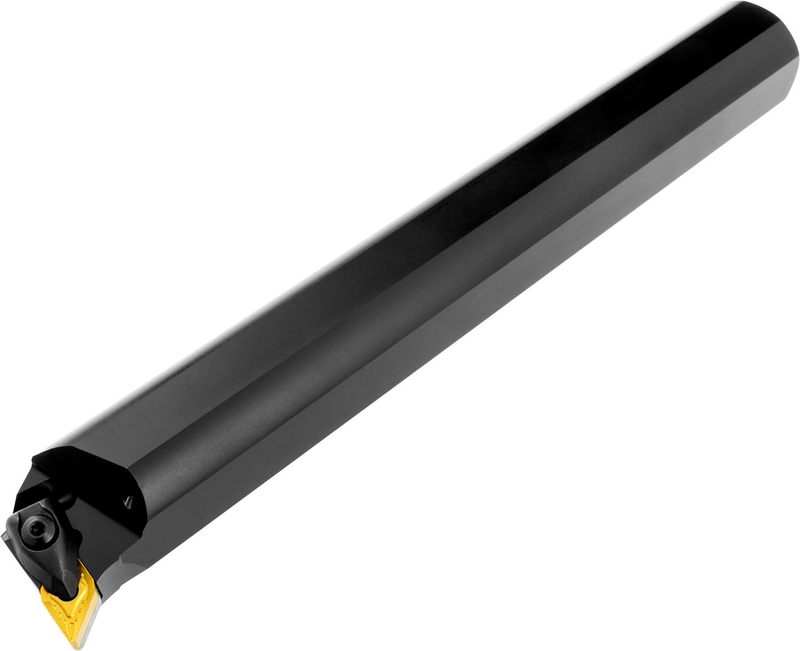

Barre d'alésage à double serrage pour plaquette négative en losange à 55° avec diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO DN.. 1104..), coupe à droite à 93° avec corps déporté, acier avec trou d'arrosage, diamètre 25 mm x 300 mm de long pour chanfreinage interne, alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-DDUNR 11
Product Number7028480
Product FamilyDDUN(RL) INT
Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7028480
EAN3603603105850
File Type Download

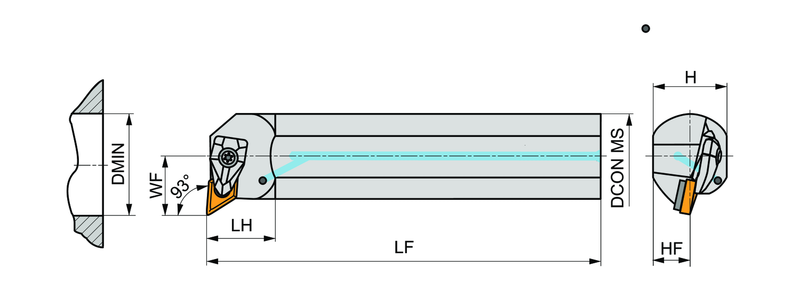

A25T-DDUNR 11 — Line Drawing PDF Download
